HONEYWELL 8C-PCNT02 51454363-275

Description

Product Overview

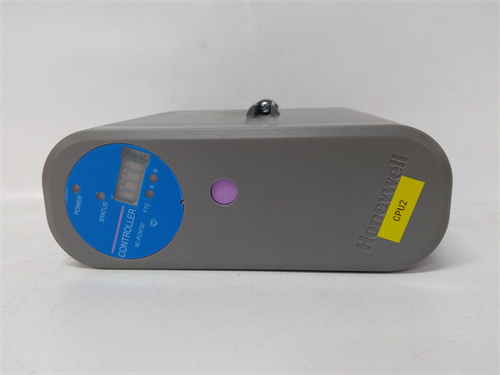

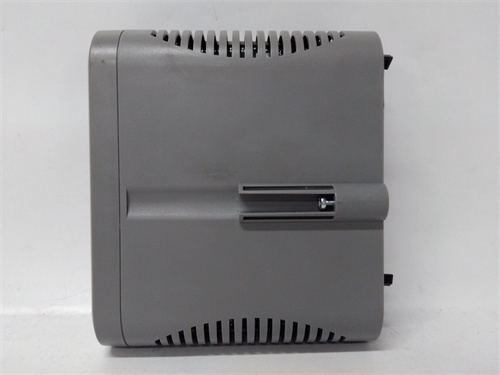

The HONEYWELL 8C-PCNT02 51454363-275 is a critical and specialized communication processor module for the Honeywell Plant Scape (also known as SCAN 3000) and Experion LCN (Local Control Network) control systems. This module, identifiable by the assembly code 51454363-275, functions as the LCN Network Interface Module or a high-level communication gateway within a Process Control Unit (PCU). Its primary role is to manage the high-speed, deterministic communication between the controller’s internal I/O bus and the plant-wide Local Control Network (LCN), which connects multiple controllers, operator stations, and history modules.

Product Parameters and Specifications

• Function: LCN Network Interface Module / Communication Processor for Honeywell Plant Scape/Experion.
• System Role: Serves as the interface card in a Process Control Unit (PCU) or High Performance Process Manager (HPM) cabinet, bridging the Controlway (I/O bus) and the Local Control Network (LCN).
• Communication Protocols:
  • LCN Side: Implements the proprietary Honeywell LCN protocol, a token-passing network operating at 5 Mbps.
  • Controller Side: Interfaces with the controller’s internal bus for data exchange with other PCU modules (e.g., I/O processors, control processors).
• Processor: Contains a dedicated microprocessor and logic to handle network traffic, error checking, and message routing.
• LCN Connection: Uses a specialized coaxial cable connection (typically via a “TAP” box) to the redundant LCN trunk cable.
• Redundancy: Designed to be used in redundant pairs (Primary and Secondary) for high availability. The 51454363-275 assembly code specifies the exact hardware and firmware revision for compatibility.
• Diagnostics: Features comprehensive status LEDs and diagnostic reporting to the operator station for monitoring network health and module status.

Advantages and Key Features

The primary advantage of the HONEYWELL 8C-PCNT02 51454363-275 is its role as the certified and reliable communication gateway for a mature, high-performance DCS. It ensures deterministic and secure data transfer between the process controller and the wider plant network, which is critical for synchronized plant operations. The module is engineered for extremely high availability and fault tolerance, supporting seamless failover in redundant configurations to prevent a single point of failure from disrupting plant control. Its design provides superior noise immunity and data integrity for the critical LCN backbone. For plants with an installed base of Honeywell TDC 3000, Plant Scape, or Experion LCN systems, using this exact replacement part is the only way to maintain system integrity, performance, and manufacturer support. The HONEYWELL 8C-PCNT02 is a cornerstone of system stability.

Application Cases in Industry

This module is exclusively found in process industries with Honeywell LCN-based control systems installed from the 1980s onward. In Oil Refineries and Petrochemical Plants, these systems control entire units like crude distillation, catalytic cracking, and ethylene production. The 8C-PCNT02 module in each PCU allows the reactor or column controller to share data with the central operator consoles and optimization computers. In Large Power Plants and Pulp & Paper Mills, it facilitates plant-wide coordination of boilers, turbines, and paper machine sections. These are typically long-lifecycle assets where the control system has been maintained and upgraded over decades, and the 51454363-275 board is a critical spare for sustaining operations.

Comparison with Competing Products

1. Genuine Honeywell Legacy Spare (this module): The only option that guarantees 100% electrical, mechanical, and protocol compatibility. It ensures the LCN network operates with original performance and reliability.
2. Third-Party Refurbished Board: May be offered at a lower cost. Risks include unknown component history, potential use of non-spec components, and possible firmware mismatches that can cause intermittent network errors or complete failure, jeopardizing plant operations.
3. System Modernization/Migration: The strategic alternative is to migrate the control function to a new platform (e.g., Honeywell Experion PKS with Ethernet-based control). This is a major capital project that replaces the entire PCU and LCN infrastructure but offers modern features and long-term support viability.

The HONEYWELL 8C-PCNT02 51454363-275 exists in a specialized market where the choice is between maintaining a proven legacy system with certified spares and undertaking a full system overhaul.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Part Number Match is Non-Negotiable: The full part number 8C-PCNT02 and the specific assembly code 51454363-275 must match the failed board exactly. Even minor differences indicate a different revision that may not be compatible with your PCU and LCN software version.
  2. Identify the Host System: Document the exact Honeywell system (Plant Scape Rxxx, Experion LCN), PCU model, and software version. This information is crucial for the supplier to verify compatibility.
  3. Redundant Pair Consideration: Best practice is to replace modules in redundant pairs to ensure both are on the same hardware and firmware revision. If replacing one, the new 8C-PCNT02 must be compatible with the existing mate.
  4. Source from Authorized Legacy Specialists: Purchase only from Honeywell’s legacy services group or highly reputable, authorized distributors specializing in legacy DCS parts with a proven testing process.
• Important Precautions:
  1. Complete System and Network Shutdown: Replacing an LCN module typically requires taking the entire LCN network segment or the specific PCU offline. This is a major procedure that must be planned during a plant shutdown, following strict management of change (MOC) and safety procedures.
  2. ESD and Handling: The module contains highly static-sensitive components. Use full ESD precautions (wrist strap, grounded mat, anti-static bag).
  3. Configuration and Address Settings: The module may have a pre-set LCN node address (set via switches or firmware). This address must be correct for its position in the system. Document the settings of the old board before removal.
  4. Post-Replacement Testing and Diagnostics: After installation, extensive testing is required. This includes verifying LCN communication, checking that the PCU appears correctly on the network, and confirming that all control points and functions are restored. Use the Honeywell diagnostic tools (e.g., Network Status Display).
