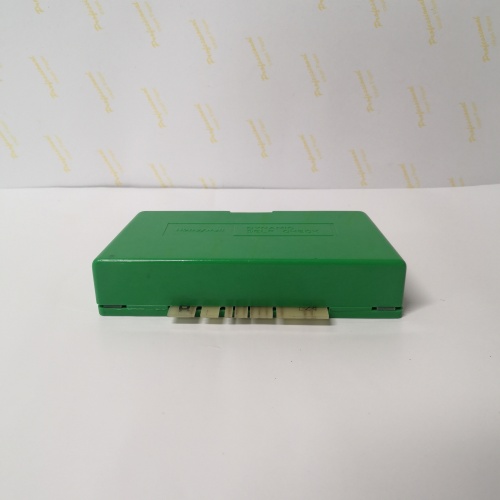

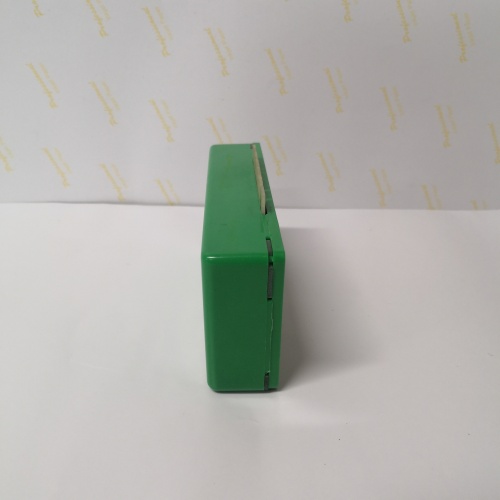

HONEYWELL 620-0073C | TDC 3000 Power Supply – 24 VDC

Description

Product Introduction

The I/O rack goes dark. The green LED on the 620-0073C is out. The field transmitters are dead. The operator calls and says the whole unit just stopped.

That’s the HONEYWELL 620-0073C—the power supply that keeps the TDC 3000 I/O alive. It sits in the rack, takes 120 or 240 VAC, and puts out a clean 24 VDC. Enough to run the LCM, the I/O cards, and the field loops. When it dies, the whole rack dies with it.

I’ve pulled these out of chemical plants where they’d been running since the late 1980s. The caps dry out. The fan seizes. The output starts to sag. One plant had a 620-0073C that was putting out 19 VDC—the LCM was still running, but the field transmitters were reading low. They spent three days chasing instrument problems before someone checked the power supply.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Old power supplies need real testing. Visual inspection isn’t enough.

1. Incoming Verification
   This batch came from a Honeywell service center surplus. Original boxes. Serial numbers traceable to 2005–2008 production. Unopened anti‑static bags.
2. Visual Inspection
   First: input voltage selector switch. Make sure it’s set to the right voltage (120 or 240). Next: the fan. Spin it with a pencil—should turn freely. Any resistance, it’s seized. Also check the electrolytic caps. Any bulging is a reject.
3. Live Functional Test
   We test the 620-0073C on a bench with a resistive load bank. Procedure:
   • Power‑up at 120 VAC: verify fan runs, all LEDs light
   • Measure output voltage: should be 24.0 ±0.5 VDC
   • Load test: apply 6.25 A load for 1 hour
   • Monitor output voltage every 15 minutes: must stay above 23.5 V
   • Measure ripple: <100 mV p-p at full load
   • Overcurrent test: increase load to 8 A, verify supply trips or current limits
   • Cool‑down: let unit idle for 30 minutes, verify fan runs continuously
4. Thermal Imaging
   We run the 1‑hour load test with a thermal camera. Any component hitting 85 °C or higher gets flagged.
5. Final QC & Packaging
   Passed units go back in anti‑static bags, then bubble wrap, then a carton with QC sticker showing test date, load test results, and fan operation verified.

Field Replacement Pitfalls

Power supplies seem simple. That’s when they bite you.

1. Input voltage selector.
   The 620-0073C has a small red switch on the side. 120 VAC or 240 VAC. I’ve seen a tech plug a unit into 240 VAC with the switch set to 120. The supply worked for about 10 seconds. Then it didn’t. Check the switch before you power it up.
2. ❌ Fan failure.
   The fan is the first thing to go. The unit will still run—for a while. The caps overheat, the output gets noisy, and the LCM starts acting flaky. I’ve seen a plant with intermittent I/O faults that traced back to a power supply with a dead fan. The supply passed a voltage check. It failed the thermal test. Listen for the fan. If it’s silent, swap the unit.
3. Output ground.
   The 24 VDC output is isolated from the input. But it has a common with the rack ground. If you have a ground loop in the field wiring, you’ll see noise on the output. The supply will still work, but the field signals will be jumpy. I’ve seen a plant replace three power supplies before they found the ground loop. The supplies were fine.
4. Ripple kills I/O cards.
   A failing power supply can still put out 24 VDC but have 500 mV of ripple. The I/O cards will run—until the ripple spikes and they reset. I’ve seen a rack of analog inputs that would drop out randomly. The problem was a 620-0073C with bad output caps. The voltage was fine. The scope told the story.
5. Battery backup.
   Some TDC 3000 racks have battery backup for the LCM. If the battery charger is on the same supply, a failing power supply can overcharge the battery. I’ve seen a plant with a battery that was warm to the touch—the 620-0073C was putting out 28 VDC. The supply was bad. The battery was next.

Get these five right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this HONEYWELL 620-0073C was built by Honeywell, never installed, and never repaired. The caps are from the original production run. The fan has zero hours. The output has never been shorted.

Refurbished TDC 3000 power supplies are risky. The electrolytic caps are the weak point. A refurb unit may have had the caps replaced—or it may not. I’ve seen refurb units that passed a voltage check but failed the load test after 20 minutes. The caps were original from 1998. They were done. The supply was sold as “tested.”

What we provide:

• Traceable serial number (matches Honeywell production records)
• 1‑hour load test at 6.25 A
• Ripple measurement (<100 mV)
• Fan operation verification
• Thermal imaging report
• Original anti‑static bag (if available) or fresh bag with QC seal
• 12‑month warranty

Pricing context:
Our price sits above the cheapest used listings. It’s also below what a new supply would cost if Honeywell still made them. You’re paying for the test, the warranty, and the certainty that the caps aren’t going to fail next month.

Performance Benchmarks & Test Results

All tests performed at 25 °C ambient, 120 VAC input, 6.25 A load.

Thermal performance note:
At 50 °C ambient (common in a packed control room), the unit runs at about 65 °C internal. The fan runs continuously at that temp. If the fan fails, the unit will overheat and trip in about 20 minutes. We’ve seen that in the field. Replace the fan if it’s noisy or slow.

One more thing from the field:
The 620-0073C has a small test point on the front—TP1. It’s the 5 V reference for the internal regulator. If the output voltage is off, probe TP1. Should be 5.0 ±0.1 V. If it’s not, the regulator is failing. Swap the supply. I’ve seen a tech adjust the output pot to compensate for a failing reference. Don’t. The pot is for factory calibration only. The supply is done.
