HONEYWELL 51404203-002 | Digital Output Module, 32 Channels

Description

Product Introduction

That refinery in Texas—the one with the TDC 3000 system that’s been running since the first Bush administration—had a unit trip last spring. The cause? A single output channel on a 51404203-002 failed to energize a solenoid on a fuel gas valve. The tech on shift had already swapped the solenoid, the cable, even the marshalling cabinet. Nothing. I pulled the module, put it on the bench, and found the output transistor on channel 17 had failed open. No smoke, no smell, just dead. One channel, one 2,000 module, one 100,000 outage.

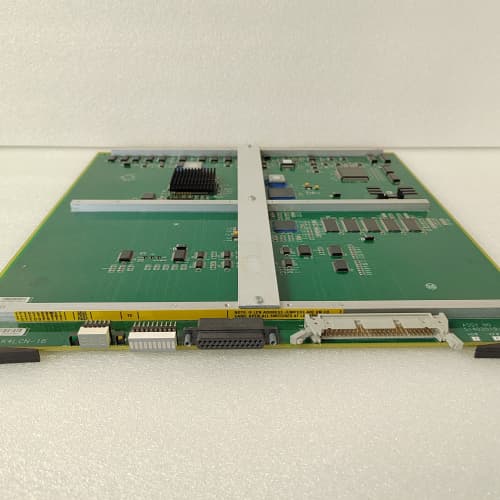

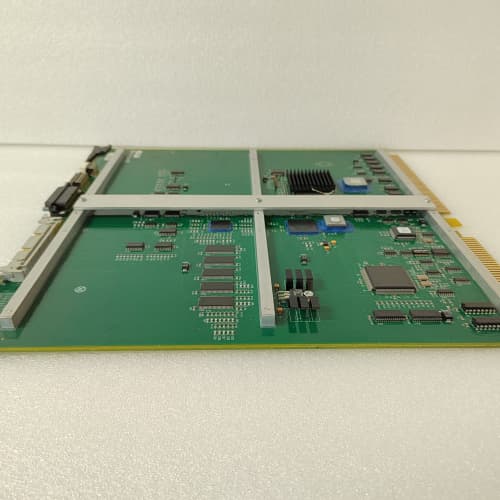

The HONEYWELL 51404203-002 is a 32-channel digital output module from the TDC 3000 Universal I/O family. It lives in the I/O rack, taking commands from the process controller and turning them into 24V DC signals for field devices. Each channel is optically isolated from the backplane and has its own short-circuit protection—if you short an output, it shuts down that channel, not the whole module. The outputs are sourcing (PNP), so the load connects between the output and common (0V). It’s a high-density module—32 channels in a single-wide slot—so you can pack a lot of control into a small rack. In a refinery, these modules handle everything from valve solenoids to alarm lights.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A 32-channel module gets a thorough workout. Here’s our process.

1. Incoming Verification
   • Match the model: 51404203-002. (There’s a -001 variant—different revision.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the front panel for scratches.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the revision sticker (Rev. 02 is most common).
2. Power-On Self-Test
   • Install the module in a TDC 3000 test rack with a known-good power supply and processor.
   • Apply rack power—watch the “PWR OK” LED.
   • Connect to the engineering workstation, verify the module is recognized and passes its internal diagnostics.
3. Output Functional Test
   • Connect a 24V DC load (a small indicator lamp) to each channel in sequence.
   • From the test controller, command each channel on/off.
   • Verify the lamp lights for each channel.
   • Measure output voltage drop at 0.5A—should be <1V.
   • Test all 32 channels simultaneously at 0.25A each (8A total)—monitor power supply voltage.
4. Short-Circuit Protection Test
   • For a sample of channels, short the output to common while commanded on.
   • Verify the channel shuts down (LED goes out, fault reported).
   • Remove the short—channel should auto-recover (per design).
   • Repeat for each channel (sample basis, 10%).
5. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each channel’s terminals and the next channel—>10 MΩ.
6. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all outputs at 0.25A load.
   • Monitor for any fault indications or output dropouts.
7. Firmware Verification
   • Read the firmware version via the engineering workstation.
   • Log it in the test report.
   • If the customer requests a specific version, we verify before shipping.
8. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—output voltage drop, short-circuit test results.

Field Replacement Pitfalls

I’ve swapped these in refineries, chemical plants, and offshore platforms. Here’s where people go wrong.

❗Sourcing vs. Sinking
The 51404203-002 is sourcing (PNP). That means the load must be connected between the output and common (0V). If you wire it between +24V and the output (like you would with a sinking module), it won’t work—and you might damage the module.

External Fusing
The module has per-channel electronic protection, but it’s not a fuse—it’s a current limiter. If you have a dead short, the channel will shut down, but it won’t blow a fuse. That’s fine, but if you need galvanic isolation for fault clearing, add external fuses.

Channel Density Heat
32 channels at 0.5A each is 16A total—but the module is rated for 8A total. You can’t run all channels at full load simultaneously. Calculate your actual load before populating.

Backplane Power
The module gets its logic power from the backplane, but the field power (24V) must be supplied externally. If you forget to connect field power, the outputs won’t work—even though the module powers up and looks healthy.

LED Visibility
The channel LEDs are tiny. In a dark cabinet, you can’t see which channel is active without a flashlight. We recommend keeping a small LED flashlight in every panel.

Nail these five, and your 51404203 will outlast the control system.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by Honeywell, packed in its original box, and never installed. The output transistors have zero hours, the optoisolators have never been stressed, and the terminal block has never been wired.

Refurbished risk in plain terms
A refurbished Honeywell output module often comes from a decommissioned plant. It may have run for years in a hot cabinet. The output transistors may have been stressed by countless operations and short circuits. A refurbisher tests it at low current and calls it good. In the field, with a real load, it might fail.

Real cost of a refurbished failure
If a single channel fails to energize a critical solenoid, the process may shut down. The cost of one unplanned outage dwarfs the price difference between new and refurbished.

What we provide as proof

• Honeywell box (or photos).
• Serial number recorded.
• Output voltage drop measurements.
• Short-circuit protection test results.
• 12‑month warranty.

Pricing context
We’re priced 35% above the cheapest “pulled” Honeywell modules and 20% below Honeywell’s current list price. That pays for the full load test, the short-circuit check, and the warranty that covers replacement if a channel fails.

Performance Benchmarks & Test Results

Test conditions: TDC 3000 test rack, 24.0V DC field supply, 0.25A load per channel, ambient 24 °C.

We keep the full test data—ask, and we’ll email the PDF.
