HONEYWELL 05701-A-0325

Description

Product Description

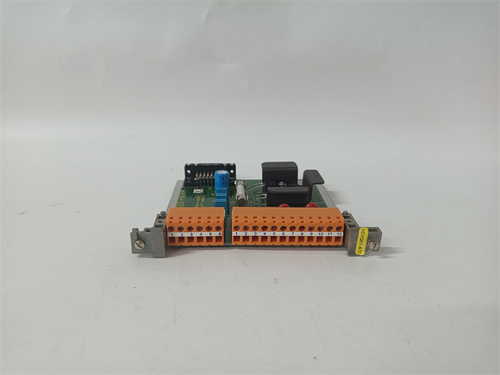

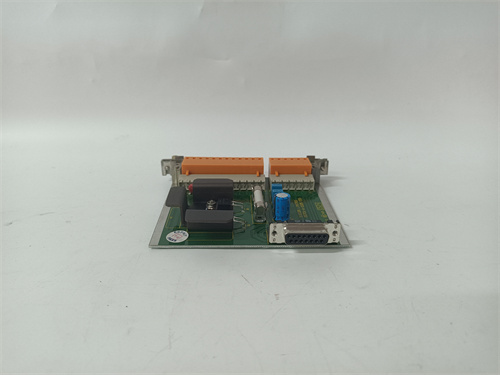

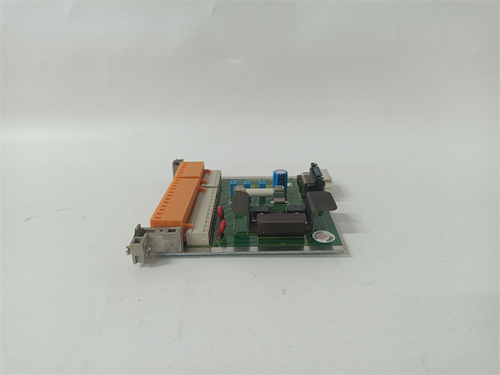

The HONEYWELL 05701-A-0325 is a specialized digital output (DO) module designed for the Honeywell Experion Process Knowledge System (PKS) as part of the ControlEdge series or its predecessor Series C I/O architecture. This high-density module provides 32 isolated output channels, enabling a single card to command a large array of field devices such as solenoid valves, pilot lights, alarm annunciators, and the coils of motor contactors. The HONEYWELL 05701-A-0325 serves as a critical interface, translating logic-level commands from the control processor into robust on/off signals for the field. Engineered for reliability in demanding process environments, this module incorporates advanced diagnostics, channel-by-channel isolation to prevent fault propagation, and hot-swappable capability in redundant configurations. Integrating the HONEYWELL 05701-A-0325 into a control strategy maximizes I/O point density while maintaining the high availability expected from a distributed control system (DCS). For large-scale applications requiring numerous discrete control points, the HONEYWELL 05701-A-0325 is a cornerstone component, delivering performance and diagnostic clarity essential for modern automation.

Product Parameters

• I/O Type: 32-channel Digital Output Module.
• Output Type: Typically Form A (solid-state) or Form C (relay) contacts, depending on the specific -0325 variant. The datasheet must be consulted for the exact switching element.
• Point Density: 32 isolated output points.
• Voltage Range: Outputs are rated for a specific voltage range (e.g., 24V DC or 120V AC) and load current (e.g., 2A per channel). The exact rating is defined by the module suffix.
• Isolation: Channel-to-channel and channel-to-system bus isolation for enhanced safety and noise immunity.
• Communication: Interfaces with the controller via the Experion PKS I/O bus (e.g., Series C or ControlEdge bus).
• Diagnostics: Comprehensive module health and per-channel status monitoring (open circuit, short circuit, overload).
• Mounting: Installs into a designated slot within a Honeywell Experion Series C or ControlEdge I/O enclosure/carrier.
• Hot Swap: Supports online replacement in properly configured redundant systems.

Advantages and Features

• Exceptional Point Density: Consolidates control of 32 discrete devices into a single module slot, optimizing cabinet space and reducing hardware costs per point.
• Advanced Diagnostic Capability: Provides detailed, real-time diagnostics down to the individual channel level, enabling predictive maintenance and rapid fault resolution to minimize process downtime.
• High Reliability & Isolation: The robust design and electrical isolation protect the system backbone from field-side faults and ensure that a failure on one channel does not affect adjacent channels.
• Seamless System Integration: As a native Honeywell component, the HONEYWELL 05701-A-0325 is fully recognized and configurable within the Experion Control Builder engineering environment, ensuring guaranteed performance.
• Supports High Availability: Hot-swappable design in redundant configurations allows for module maintenance or replacement without necessitating a process shutdown.

Application Cases in Application Fields

• Oil & Gas Separation Train: Controlling a large bank of motor-operated valves (MOVs) and solenoid valves for automatic drain and vent sequences across multiple separator vessels.
• Pharmaceutical Batch Process: Commanding numerous solenoid valves for precise chemical dosing, steam-in-place (SIP) operations, and clean-in-place (CIP) sequences in a bioreactor skid.
• Water Treatment Plant: Managing the start/stop signals for dozens of pump contactors, blower motors, and actuated valves across clarification and filtration stages.
• Automotive Paint Shop: Controlling the on/off commands for indexing conveyors, paint booth alarms, and purge valves for robotic paint applicators.

Comparisons with Competing Products

Competing products include high-density digital output cards from other major DCS vendors like Emerson (DeltaV), Yokogawa (Centum VP), and Siemens (PCS 7/SIMATIC). These modules are functionally similar but are proprietary to their respective control architectures and are not interchangeable. Within the PLC realm, comparable high-density cards from Allen-Bradley or Schneider Electric offer similar point counts but lack the deep, system-level diagnostic integration and hot-swap features inherent in a tightly coupled DCS like Experion PKS. The primary advantage of the HONEYWELL 05701-A-0325 is its certified performance and operational transparency within the Honeywell ecosystem, which reduces engineering risk and lifecycle support complexity for existing Experion PKS users. For new installations or expansions within this system, it is the definitive choice.

Selection Suggestions and Precautions

1. Exact Specification Confirmation: The part number HONEYWELL 05701-A-0325 is a base number. Crucially, you must confirm the full factory part number including all suffixes (e.g., -X, -Y, -Z) that define the output type (solid-state vs. relay), voltage rating (24VDC, 120VAC, etc.), and isolation class. Using the incorrect variant can lead to system damage.
2. Load Analysis: Carefully calculate the inrush and steady-state current of each connected load (e.g., solenoid, contactor coil) to ensure it does not exceed the per-channel and total module current ratings. Use external relays or contactors for high-current loads.
3. Fusing and Protection: Each field circuit should be protected with an appropriately rated fuse or circuit breaker external to the module to protect the output electronics from short-circuit damage.
4. Carrier and Backplane Compatibility: Verify that the I/O carrier or enclosure (e.g., CC-PCNT01, CC-PCF901) is compatible with this specific module type and supports the required power budget.
5. Heat Dissipation: High-density modules can generate significant heat. Ensure the control cabinet has adequate ventilation and that the module is not installed adjacent to other high-heat devices. Adhere to the specified environmental operating temperature range
