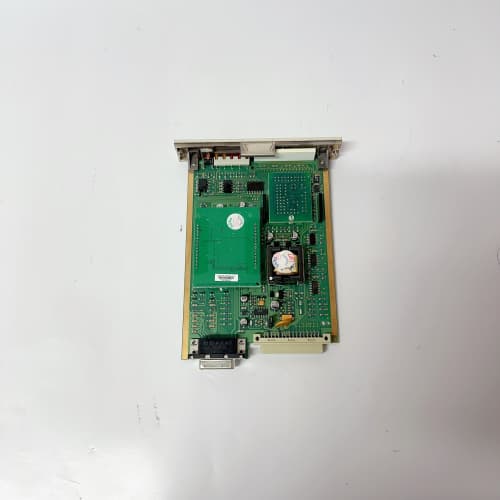

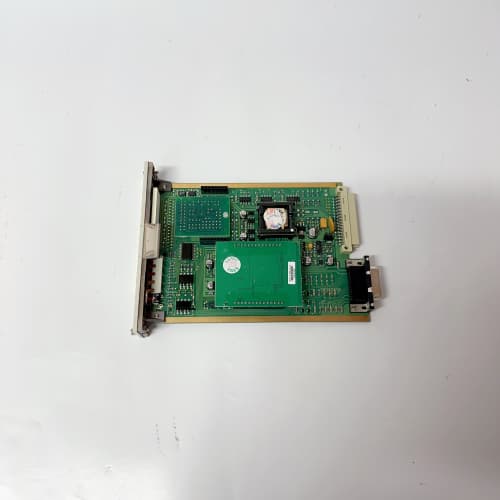

HONEYWELL 05701-A-0145

Description

Product Description

The HONEYWELL 05701-A-0145 is a specialized Input/Output (I/O) module designed for Honeywell’s legacy TDC 3000 distributed control system (DCS). This module resides in a Honeywell Process Manager (PM) or Logic Manager (LM) cabinet and serves as a critical interface between the controller and field devices. Its specific function—whether as a digital input, digital output, analog input, or analog output—is defined by the complete part number and its associated personality or termination hardware. The primary role of the HONEYWELL 05701-A-0145 is to condition, isolate, and convert field signals for processing by the controller’s processor cards, and conversely, to convert controller commands into signals capable of driving field actuators. As a core component of one of history’s most widely installed DCS platforms, the reliable operation of this I/O module is fundamental to the control and monitoring of continuous processes. The modular and robust design of the HONEYWELL 05701-A-0145 exemplifies the engineered reliability required for 24/7 industrial operations. Proper maintenance and configuration of these modules are essential for the longevity and performance of a TDC 3000 system.

Product Parameters

• System Family: Honeywell TDC 3000 DCS (Process Manager PM, Logic Manager LM).
• Module Type: Universal I/O Module (specific type defined by associated personality card and termination).
• Function: Can be configured as Analog Input (AI), Analog Output (AO), Digital Input (DI), or Digital Output (DO) based on system configuration.
• Channels: Typically 8 or 16 channels per module.
• Isolation: Provides channel-to-channel and system-to-field isolation for safety and signal integrity.
• Signal Ranges:
  • Analog: Common ranges include 4-20 mA, 1-5V DC, thermocouple, RTD.
  • Digital: 24V DC, 120V AC, or dry contact.
• Mounting: Installs into a dedicated slot on an I/O shelf within a PM/LM cabinet.
• Communication: Interfaces with the controller’s I/O bus via a dedicated backplane.
• Diagnostics: Basic status LEDs for module health and communication.
• Personality Module: Requires a separate, plug-in personality module to define its specific I/O type and characteristics.

Advantages and Features

• Proven Reliability and Longevity: As part of the TDC 3000, this hardware platform has a decades-long track record of extremely reliable operation in critical process industries, with many systems still in service today.
• High Density and Flexibility: The universal design, when paired with the correct personality, allows a single module type like the HONEYWELL 05701-A-0145 to serve many different I/O functions, simplifying spares inventory.
• Robust Industrial Design: Built to withstand the electrical noise, temperature variations, and continuous duty cycles of refinery, chemical, and power plant environments.
• Seamless TDC 3000 Integration: Fully supported within the TDC 3000 architecture, including configuration in the TDC 3000 engineering tools and diagnostics within the operator station.
• Strong Legacy Support: Despite its age, there remains a significant support ecosystem for these modules due to the vast installed base, including specialized repair and refurbishment services.

Application Cases in Application Fields

• Oil Refining (Legacy Systems): Used throughout a refinery’s TDC 3000 system to interface with temperature transmitters on distillation columns, pressure switches on vessels, and control valves on product streams.
• Chemical Processing: Provides I/O for reactor batch sequencing, temperature control loops, and safety interlock systems in plants built in the 1980s and 1990s.
• Pulp and Paper Mills: Interfaces with analog sensors for basis weight and moisture on paper machines, and digital I/O for valve control in chemical recovery boilers.
• Pharmaceutical (Older Facilities): Used in batch process control for fermentation or purification skids controlled by TDC 3000.

Comparisons with Competing Products

• Vs. Contemporary DCS I/O (e.g., Foxboro I/A Series, Bailey INFI 90): Competing DCS systems from the same era had their own proprietary I/O modules. The HONEYWELL 05701-A-0145 is not interchangeable. The TDC 3000 was often favored for its user interface and system architecture.
• Vs. Modern Honeywell Experion C300 I/O: The Experion platform represents the modern successor. The HONEYWELL 05701-A-0145 is larger, less dense, and uses older technology, but is part of a system known for its exceptional durability. Experion offers greater functionality, diagnostics, and network integration.
• Vs. Generic PLC I/O Racks: A modern PLC I/O system is more flexible and easier to program. The HONEYWELL 05701-A-0145 is deeply integrated into a comprehensive, proprietary DCS with dedicated controllers, engineering workstations, and historization, representing a different automation philosophy focused on large, complex processes.

Selection Suggestions and Precautions

1. Critical Part Number Verification: The base module HONEYWELL 05701-A-0145 often requires a specific personality module and termination assembly to become functional. The complete assembly part number is essential for correct ordering and replacement.
2. Configuration in TDC 3000 Software: The module’s type (AI/AO/DI/DO) and point addresses must be correctly configured in the TDC 3000 point database and associated control drawings. A mismatch will cause the point to fail.
3. Obsolescence and Sourcing: This is legacy hardware. Source from highly reputable surplus dealers who specialize in TDC 3000 parts and can provide tested, guaranteed modules. Counterfeit or poorly refurbished modules are a risk.
4. Handling and ESD Protection: These are static-sensitive devices. Always follow ESD precautions when handling the modules and their associated personality cards.
5. System Migration Planning: For sites relying on this technology, developing a long-term migration plan to a modern DCS like Honeywell Experion is crucial for cybersecurity, support, and accessing new operational technologies. The HONEYWELL 05701-A-0145 should be seen as a lifecycle-extending spare part.
