Description

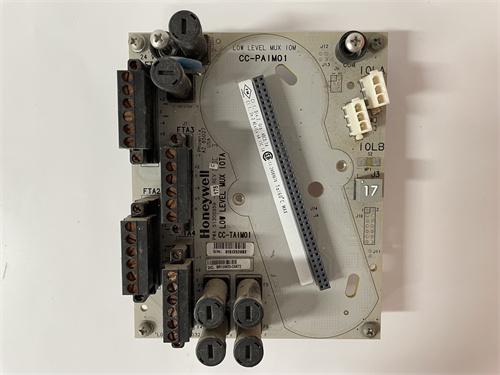

HONEYWELL CC-TAIM01 Multifunction I/O Module

Product Description

The HONEYWELL CC-TAIM01 is a versatile, high-performance multifunction I/O module for Honeywell’s Experion PKS (Process Knowledge System). This advanced module is designed to handle a combination of analog and discrete signals within a single unit, providing exceptional flexibility for complex field device interfacing. It functions as a configurable interface that can accommodate analog inputs (AI), analog outputs (AO), digital inputs (DI), and digital outputs (DO) on a per-channel basis, allowing engineers to tailor the module precisely to the needs of a specific process unit or skid. Engineered for reliability and accuracy in demanding process environments, the HONEYWELL CC-TAIM01 consolidates multiple I/O types into one footprint, simplifying cabinet design and reducing spare part requirements. For comprehensive technical specifications, configuration guides, and application manuals, please visit the official product resource: HONEYWELL CC-TAIM01. The integration of the CC-TAIM01 into an Experion ControlEdge I/O chassis enables highly efficient and compact I/O solutions for applications with diverse signal requirements. The powerful configurability and robust design of the HONEYWELL CC-TAIM01 make it a cornerstone for modern, streamlined DCS architecture in industries ranging from oil & gas to pharmaceuticals.

Product Parameters

• Product Model: HONEYWELL CC-TAIM01
• System Platform: Honeywell Experion PKS / ControlEdge I/O.
• Module Type: Universal, Multifunction I/O Module (Mixed Analog & Discrete).
• Channel Configuration: 8 universal channels. Each channel can be individually configured as:
  • Analog Input (AI): 4-20mA, 0-10V, RTD, Thermocouple (various types).
  • Analog Output (AO): 4-20mA.
  • Digital Input (DI): 24V DC, dry contact.
  • Digital Output (DO): 24V DC transistor output.
• Isolation: High degree of channel-to-channel and channel-to-system isolation (e.g., 1500V AC) for safety and noise immunity.
• Resolution: High resolution for analog functions (typically 16-bit).
• Accuracy: High accuracy for analog measurements and outputs (e.g., ±0.05% of span for AI).
• Communication: Connects to the Experion C300 controller via the high-speed ControlEdge I/O bus.
• Diagnostics: Comprehensive per-channel diagnostics including open wire, short circuit, out-of-range, and hardware fault detection.
• Hot-Swappable: Designed for hot-swap replacement in a live system to support maintenance without process interruption.
• Power: Powered from the ControlEdge I/O chassis.

Advantages and Features

• Unparalleled Configuration Flexibility: The ability to define each of the 8 channels as AI, AO, DI, or DO provides maximum application adaptability. This allows one module type to serve an entire skid, drastically reducing engineering complexity and spare parts inventory.
• Space and Cost Efficiency: Replaces the need for separate dedicated analog and digital modules, saving significant space in control panels and reducing the overall module count, chassis size, and cost.
• High Performance: Delivers the same high accuracy, resolution, and fast update rates expected from dedicated single-function modules, ensuring no compromise in control loop performance.
• Advanced Integrated Diagnostics: Offers detailed, channel-level diagnostic information that is fully integrated into the Experion system for predictive maintenance, advanced alarming, and rapid root-cause analysis.
• Simplified Engineering and Maintenance: Using a single module type for mixed I/O simplifies design, configuration, and troubleshooting. Engineers use one common function block in Control Builder, and technicians carry one type of spare module.

Application Cases in Various Fields

• Compressor Control Skid (Oil & Gas): A single CC-TAIM01 can interface with the skid’s analog sensors (suction/discharge pressure, temperature via RTD), analog outputs (to anti-surge valve), digital inputs (lube oil pressure switch), and digital outputs (start permit to motor starter).
• Pharmaceutical Batch Reactor: Configured to read temperature (RTD on one channel), pH (4-20mA on another), control a dosing valve (4-20mA output), and monitor agitator run status (digital input) and control a solenoid valve (digital output).
• Power Plant Burner Management: Interfaces with flame scanner analog signals, analog outputs for fuel valve control, digital inputs from permissive switches, and digital outputs for pilot valve commands.
• Water Treatment Filter Control: Monitors differential pressure (AI), controls backwash valves (AO and DO), reads pump run status (DI), and commands pump starters (DO).

Comparison with Competing Products

The HONEYWELL CC-TAIM01 competes with universal or multifunction I/O modules from other DCS vendors like Emerson (DeltaV CHARM with multiple I/O types) and ABB (S900 I/O). Its primary advantage is its deep integration within the Honeywell Experion ecosystem and its high channel-to-channel flexibility. Compared to using a mix of dedicated AI, AO, DI, and DO modules, the CC-TAIM01 offers superior density and flexibility but may have a higher cost per channel. It represents the forefront of configurable I/O technology, ideal for reducing footprint and complexity in modularized or skid-mounted applications.

Selection Suggestions and Precautions

1. Meticulous I/O Point Planning: Successful use of the HONEYWELL CC-TAIM01 requires careful pre-engineering. Map out each field point (sensor/actuator) and assign its required I/O type (AI/AO/DI/DO) to a specific channel on the module during the design phase.
2. Configuration is Critical: The software configuration in Experion Control Builder must exactly match the physical wiring and intended function of each channel. A channel configured as a 4-20mA output cannot be wired to a thermocouple.
3. Power Budget Considerations: Although multifunctional, the module has a total power dissipation limit. Ensure the combined load of all configured outputs (especially analog and digital outputs) does not exceed the module’s specifications.
4. Wiring and Separation: Even within a universal module, follow best practices. Use shielded cables for analog signals and separate them from digital and power cables where possible within the cabinet to maintain signal integrity.
