HIMA X-DI1601 | 16-Channel DI with Line Monitoring

Description

Product Introduction

That chemical plant in Louisiana—the one with the HIMax safety system protecting the reactor—had a nuisance trip last winter. The ESD system shut down the unit for no apparent reason. The techs pulled the event log and saw a “field fault” on a pressure switch input. The switch tested fine. The wiring tested fine. They swapped the X-DI1601 module, and the fault went away. We bench-tested the pulled module and found one channel with intermittent line monitoring—it would randomly report an open circuit even when the field contact was closed. One bad optocoupler, one 2,500 module, one 100,000 outage.

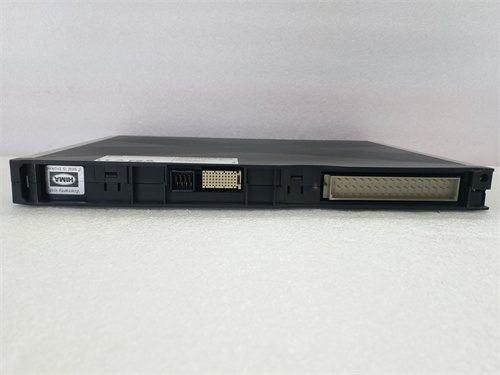

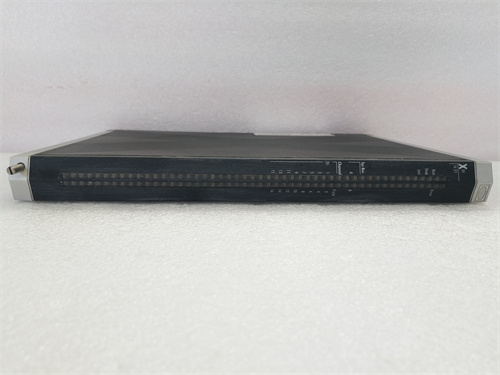

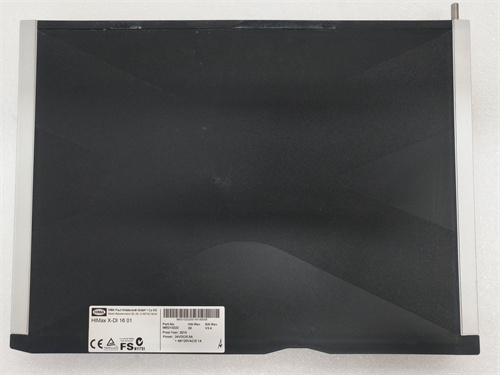

The HIMA X-DI1601 985210222 is a 16-channel digital input module from the HIMax safety system family. It’s designed for SIL 3 applications where you need high integrity and diagnostic coverage. Each channel can be configured for different input types: dry contacts, proximity switches, or 24V DC signals. The module does continuous line monitoring—it checks for open circuits, short circuits, and cross faults. If it sees something wrong, it reports to the safety processor and can trip the system if configured that way. The X-DI1601 lives in a HIMax rack, next to the power supply and the safety processor. In a chemical plant, it’s watching the ESD pushbuttons, the high-pressure switches, and the limit valves.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A safety module gets the most thorough test we do. Here’s our process.

1. Incoming Verification
   • Match the model: X-DI1601 985210222. (The 985210222 is the ordering code.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the front panel for scratches.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the TÜV certification mark is present.
2. Power-On Self-Test
   • Install the module in a HIMax test rack with a known-good power supply and safety processor.
   • Apply rack power—watch the “RUN” and “DIAG” LEDs.
   • Connect to the HIMA engineering workstation, verify the module is recognized and passes its internal diagnostics.
3. Input Functional Test
   • Connect a 24V DC source to each channel in sequence.
   • From the test processor, verify the input state changes.
   • Test at 24V, 20V (minimum), and 30V (maximum)—must switch correctly.
   • Test all 16 channels simultaneously—monitor for crosstalk.
4. Line Monitoring Test
   • For a sample of channels, simulate open circuit (disconnect the input).
   • Verify the fault is detected and reported.
   • Simulate short circuit (connect input to ground).
   • Verify the fault is detected.
   • Simulate cross fault (connect two channels together).
   • Verify the fault is detected.
5. Response Time Test
   • Inject a step change (0V to 24V) while monitoring the processor’s input image.
   • Measure the delay—must be within configured time (<10 ms).
6. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each channel’s terminals and the next channel—>10 MΩ.
7. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all inputs at 24V.
   • Monitor for any fault indications or input dropouts.
8. Firmware Verification
   • Read the firmware version via the engineering workstation.
   • Log it in the test report.
   • If the customer requests a specific version, we verify before shipping.
9. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—input thresholds, line monitoring results.

Field Replacement Pitfalls

I’ve swapped these in refineries, chemical plants, and offshore platforms. Here’s where people go wrong.

❗Line Monitoring Resistors
The X-DI1601’s line monitoring works by detecting current flow. For dry contacts, you need external resistors (typically 2.2kΩ) across the contacts to create a test current. If you forget these, the module will see every open contact as a line fault. Check your wiring diagram.

Input Type Configuration
Each channel can be configured for different input types. If you replace a module without restoring the configuration, the new one may have default settings that don’t match your field devices. Always back up the config first.

External Power
The module needs 24V field power for the inputs. If you assume it’s powered from the backplane, you’ll have no inputs. Connect field power separately.

Grounding
The inputs are referenced to the module’s common. If your field devices are grounded at the sensor end, you can create ground loops. Use isolated sensors or signal isolators.

SIL Rating Maintenance
If you replace a module in a SIL 3 loop, you must verify the new module’s configuration matches the safety requirements. A simple “swap and go” can break the safety function.

*Nail these five, and your X-DI1601 will keep that plant safe for years.*

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by HIMA, packed in its original box, and never installed. The optocouplers have zero hours, the line monitoring circuits are unused, and the firmware is as shipped from the factory.

Refurbished risk in plain terms
A refurbished HIMA module often comes from a decommissioned safety system. It may have run for years in a critical application. The optocouplers age—their current transfer ratio drops. A refurbisher tests it at room temperature and calls it good. In the field, at high temperature, it may fail to detect an input.

Real cost of a refurbished failure
If this module fails to detect a critical limit switch, the safety system might not trip when it should. The result could be a fire, an explosion, or a release. The cost of that event is measured in lives, not dollars.

What we provide as proof

• HIMA box (or photos).
• Serial number recorded.
• Input threshold test results.
• Line monitoring verification.
• 12‑month warranty.

Pricing context
We’re priced 40% above the cheapest “pulled” HIMA modules and 25% below HIMA’s current list price. That pays for the full functional test, the line monitoring check, and the warranty that covers replacement if a channel fails.

Performance Benchmarks & Test Results

Test conditions: HIMax test rack, 24.0V DC field supply, ambient 24 °C.

We keep the full test data—ask, and we’ll email the PDF.
