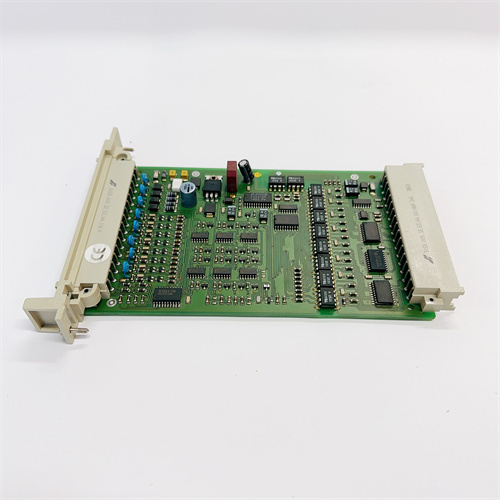

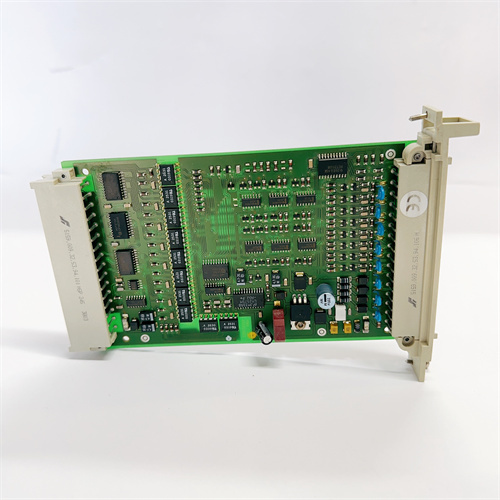

HIMA F3237 984323702

Description

Product Overview and Description

The HIMA F3237 984323702 is a highly specialized, single-channel digital input module from HIMA’s F 3x Process family, a leading safety instrumented system (SIS) used for critical safety functions in process automation. Unlike standard PLC input cards, this module is engineered according to IEC 61508 and IEC 61511 standards for Safety Integrity Level (SIL) 3 applications. It serves as the primary safety interface for connecting a single, critical field device—such as an emergency stop button, a pressure safety switch, or a flame detector—to the safety controller. The HIMA F3237 984323702 is designed for maximum diagnostic coverage, continuously monitoring itself and the connected field circuit for faults that could impair the safety function. Its fundamental role is to reliably detect a dangerous condition and transmit this signal with the highest integrity to the safety logic solver. The implementation of a HIMA F3237 984323702 module is a strategic decision for protecting personnel, equipment, and the environment, making it a cornerstone of any high-integrity safety loop.

Key Parameters and Specifications

• Manufacturer & System: HIMA, for the F 3x Process (F35, F37) safety controllers.
• Module Type: Single-Channel Digital Input Module (SIL 3).
• Safety Standard: Compliant with IEC 61508, suitable for use in SIL 3 safety loops.
• Input Signal: Typically accepts a dry contact (NAMUR) or a switching signal (24 V DC). The exact signal type is configurable.
• Number of Channels: 1 (one) isolated channel per module.
• Diagnostic Coverage (DC): Very high (>99%), achieved through continuous internal monitoring, signal comparison, and line supervision (e.g., monitoring for wire breaks and short circuits).
• Response Time: Extremely fast and deterministic, ensuring the safety function reacts within the required process safety time.
• Configuration: Configured via HIMA’s Safety-ES engineering software. Parameters include signal type, debounce time, and diagnostic behavior.
• Hot Swappable: Designed for replacement in a powered-on system (hot swap) without compromising the safety function of other loops, minimizing maintenance downtime.

Advantages and Distinctive Features

The HIMA F3237 984323702 provides unparalleled safety integrity and reliability for a single input point. Its foremost advantage is the extremely high diagnostic coverage, which allows it to detect over 99% of dangerous internal faults and many external faults (like wire breaks), ensuring the safety system remains in a safe state or can initiate a controlled shutdown. A key architectural feature is its complete physical and electrical isolation, which prevents faults from propagating to other channels or the central processing unit. The module’s SIL 3 certification provides documented proof of its reliability for the most demanding safety applications. The hot-swap capability of the HIMA F3237 984323702 is a major operational advantage, allowing maintenance without a full plant shutdown. Its design, focused on a single channel, maximizes safety integrity per point, a principle often required for independent protection layers.

Application Cases in Key Fields

• Oil & Gas (Offshore Platforms): Connecting a high-integrity pressure safety valve (PSV) proof test switch or a gas detection sensor in a wellhead area, where a single, undetected fault could lead to a catastrophic event.
• Chemical Processing: Serving as the input for a manual emergency shutdown (ESD) button in a reactor control room or a high-level switch in a toxic chemical storage tank.
• Pharmaceuticals: Interfacing with a door interlock switch on a high-containment isolator used for handling potent compounds, ensuring operator safety.
• Power Generation: Connecting a burner flame detector or a turbine overspeed switch, where the input signal directly initiates a fuel trip to prevent equipment destruction.

Comparison with Competing Products

Compared to standard multi-channel PLC digital input cards, the HIMA F3237 984323702 is in a different class, designed explicitly for certified safety functions rather than general control. Competing safety input modules from other SIS vendors (e.g., Siemens S7-400F/FH or Rockwell/Allen-Bradley Guard I/O) offer similar SIL ratings but are part of proprietary, non-interchangeable systems. The HIMA F3237 984323702 distinguishes itself within HIMA’s own range from multi-channel input modules by offering the highest possible safety integrity for a single, critical point. Its architecture is fundamentally different from a voted group of standard inputs in a PLC, as it provides certified diagnostic coverage and a proven hardware fault tolerance.

Selection Suggestions and Precautions

Selection Suggestions:

1. Select the HIMA F3237 984323702 for implementing or replacing a single-channel input in a SIL 2 or SIL 3 safety instrumented function (SIF) within an existing HIMA F 3x Process system.
2. It is the mandatory choice when the safety requirement specification (SRS) calls for a single-channel sensor with high diagnostic coverage.
3. Always choose this module based on the specific safety loop design and the verification of the Safety Integrity Level (SIL) calculation.

Important Precautions:

1. Certified Safety System: The HIMA F3237 984323702 can only be used within a HIMA-certified safety controller (F35/F37) and configured with the approved Safety-ES engineering tool. Its safety certification is void if used outside this context.
2. Functional Safety Lifecycle: Installation and replacement must be performed under strict management of change (MOC) procedures as part of the plant’s functional safety management system.
3. Configuration & Validation: After replacement, the module’s configuration must be verified and downloaded from the safety project. The entire safety loop, including the field device, must be functionally tested and validated according to the Safety Requirement Specification (SRS) before returning the system to service.
4. Wiring Integrity: Use the specified cabling and follow HIMA’s installation guidelines meticulously to ensure the line supervision diagnostics function correctly. Shielded cable and proper grounding are essential.
5. Proof Testing: Adhere to the calculated proof test interval for the entire safety loop, which includes verifying the functionality and diagnostics of the HIMA F3237 984323702 input module.
