Description

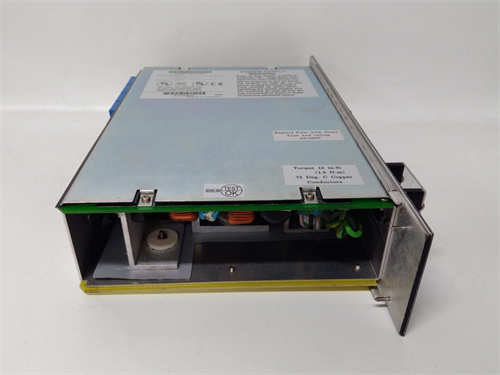

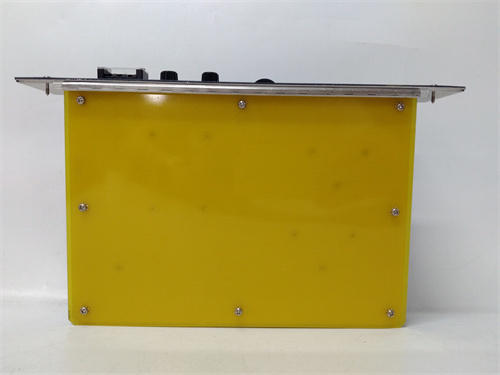

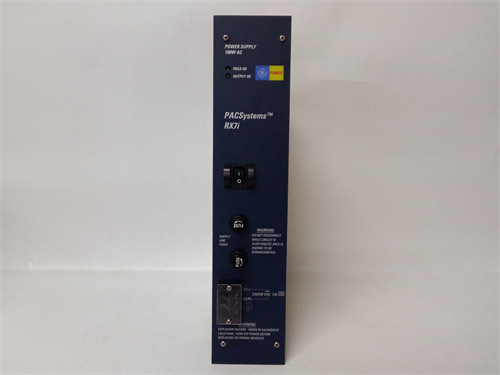

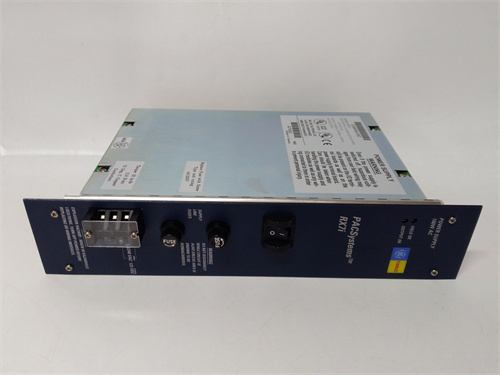

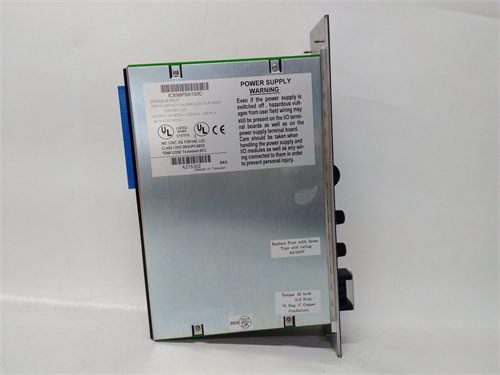

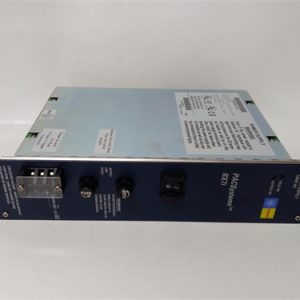

The GE IC698PSA100 is a Power Supply Module designed for use with GE’s Series 90-30 Programmable Logic Controllers (PLCs).

Product Name:

GE IC698PSA100 Power Supply Module

Product Description:

The IC698PSA100 is a compact power supply module that provides the necessary DC power to the Series 90-30 PLC system. It converts AC input power to regulated DC output, ensuring stable and reliable operation of the PLC and connected I/O modules.

Product Parameters:

• Input Voltage: Typically 85-264 VAC (Universal Input)
• Output Voltage: +5 VDC, +24 VDC
• Output Current: Varies depending on load requirements, with specifications usually around 5A for +5V and 1A for +24V.
• Frequency Range: 47-63 Hz
• Operating Temperature Range: 0 to 60 degrees Celsius

Specifications:

• Form Factor: Compact, designed for installation in the Series 90-30 chassis.
• Dimensions: Approximately 3.5” x 6.0” x 4.0” (H x W x D).
• Weight: Typically around 1.5 lbs (0.68 kg).
• Status Indicators: LED indicators for power and fault conditions.

Product Use:

The IC698PSA100 is primarily used in industrial automation applications where reliable power supply is critical. It powers the PLC and associated I/O modules, making it essential for control systems in manufacturing, process control, and other industrial settings. It can be used in conjunction with other modules in the Series 90-30 family for various automation tasks, including data acquisition, process monitoring, and control.
