GE WESDAC D20ME 526-2004-03A-270957

Description

Product Overview

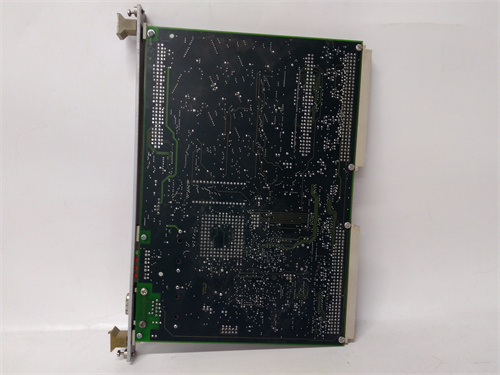

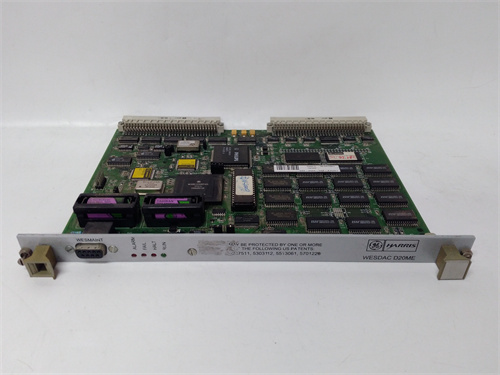

The GE WESDAC D20ME 526-2004-03A-270957 is a specific functional module or printed circuit board (PCB) assembly for the legacy GE-Harris WESDAC D20 distributed control and SCADA system. This module, identified by the detailed assembly code 526-2004-03A-270957, is a critical component within a D20ME remote terminal unit (RTU) or master station, performing a dedicated hardware function such as communication processing, I/O control, or system coordination. The primary function of this module is to execute a specific, low-level task within the larger D20 architecture, which was designed for telecontrol and monitoring of geographically dispersed assets like electrical transmission and distribution networks. For detailed technical schematics, cross-reference lists, and legacy support documentation, please refer to the official archive resource: GE WESDAC D20ME 526-2004-03A-270957. As a spare part for a legacy but often still-critical system, the GE WESDAC D20ME module’s role is to maintain the operational longevity of infrastructure where full system replacement is a massive undertaking.

Product Parameters and Specifications

• Function: Specialized Processing or Interface Module for WESDAC D20 System.
• System Role: Part of the D20ME series, which could be a Master Equipment unit or a sophisticated Remote Terminal Unit (RTU).
• Specific Function: Based on the part number structure, this module could be a central processing unit (CPU) board, a communication controller (handling protocols like DNP3, Modbus, or proprietary Harris protocols), or a digital/analog I/O processor.
• Processor & Memory: Likely contains a period-specific microprocessor (e.g., Motorola 68000 series) with associated RAM, ROM, and non-volatile memory for firmware and configuration.
• Communication Ports: Would include serial communication ports (RS-232, RS-485) for connecting to modems, other RTUs, or a master station.
• Backplane Interface: Connects to the proprietary D20 backplane for power and data exchange with other modules in the same chassis.
• Hardware Specifics: The long assembly code (526-2004-03A-270957) denotes a very specific manufacturing revision, including the PCB layout, component placements, and firmware version, which are all critical for compatibility.

Advantages and Key Features

The primary advantage of the GE WESDAC D20ME 526-2004-03A-270957 is its role as a genuine, form-fit-function replacement for a failed module in an entrenched legacy control system. Its use ensures continued operation and reliability of infrastructure that is often vital to public utilities, preventing costly unplanned outages. The module provides hardware and firmware compatibility that is guaranteed to match the original system’s performance and communication protocols. For system maintainers, sourcing this exact part is the most straightforward path to minimizing downtime and risk, as it avoids the need to modify software, rewrite configurations, or re-engineer interfaces. In the context of legacy SCADA, the availability of such a spare part is itself a key feature supporting long-term lifecycle management.

Application Cases in Industry

This module is exclusively found within WESDAC D20 systems, which are predominantly deployed in Electrical Power Transmission and Distribution (T&D) networks. Here, the GE WESDAC D20ME module functions as part of an RTU controlling a remote substation, executing logic for auto-reclosing circuit breakers, monitoring transformer taps and load tap changers (LTCs), and acquiring data from transducers. It is also used in Water/Wastewater SCADA systems for pump station control and in Oil & Gas Pipeline monitoring for remote valve control and leak detection. These are typically systems installed in the 1980s and 1990s that have been maintained and upgraded incrementally, where the 526-2004-03A-270957 board is a spare for sustaining these long-lifecycle assets.

Comparison with Competing Products

1. Genuine GE/Harris Legacy Spare (this module): The only option that guarantees 100% compatibility. It is a direct, tested replacement.
2. Third-Party Refurbished or “Will-Fit” Board: May be available from specialty refurbishers. This carries a moderate to high risk. While possibly functional, subtle differences in component age, firmware revision, or manufacturing tolerances can cause intermittent faults or incompatibilities that are difficult to diagnose.
3. System Modernization/Replacement: The alternative is to decommission the D20 RTU/master and replace it with a modern PLC/RTU (e.g., from GE (now Emerson), Siemens, or Schneider Electric). This is a capital-intensive project involving new hardware, software, configuration, and extensive testing, but it offers modern features, cybersecurity, and long-term support.

The GE WESDAC D20ME 526-2004-03A-270957 exists in a niche market where the competition is between maintaining legacy hardware and undertaking a full system upgrade.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Match is Absolute: The part number must be identical to the one on the failed board. The entire string, 526-2004-03A-270957, is critical. Even a single digit or letter difference indicates a different revision that may not work.
  2. Identify the Host Chassis: Document the exact D20 model (D20ME, D20MX, etc.), chassis serial number, and the slot from which the board was removed.
  3. Determine Board Function: If possible, identify the board’s function (CPU, COMM, I/O) from system documentation. This helps in troubleshooting and verifying the replacement’s operation.
  4. Source from Reputable Legacy Specialists: Purchase from vendors specializing in legacy GE/Harris, Westinghouse, or Fisher controls with a proven track record. Verify they test the boards prior to shipment.
• Important Precautions:
  1. Complete System Shutdown and Isolation: The entire RTU or master station chassis must be powered down. In electrical substations, this involves strict electrical safety protocols (LOTO) and may require utility switching procedures.
  2. ESD Protection: Treat the module as a static-sensitive device. Use an anti-static wrist strap and handle the board by its edges.
  3. Configuration Backup: Before removing the old board, ensure any configuration stored on it (via DIP switches, jumpers, or non-volatile RAM) is fully documented. Some configurations might need to be replicated on the new board.
  4. Post-Replacement Testing: After installation, thorough functional testing is mandatory. This includes verifying communication with the master, checking I/O points, and confirming control logic operates correctly. Do not assume plug-and-play functionality in such old systems.
