GE WES5302-111

Description

Expert Response: GE WES5302-111

Product Description

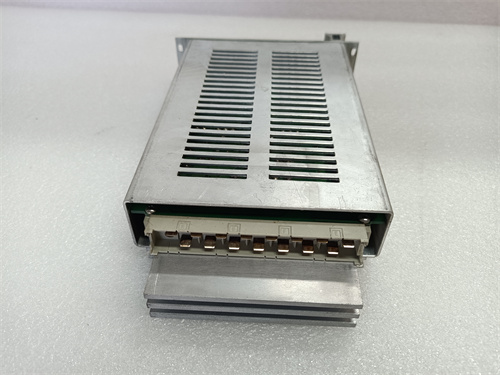

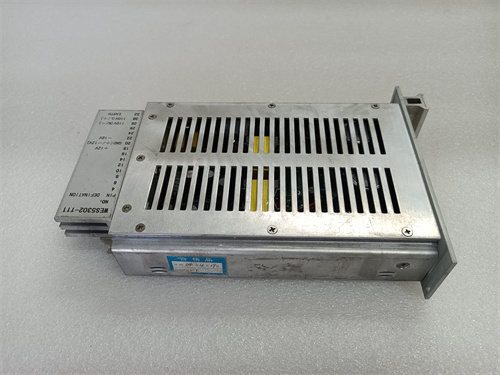

The GE WES5302-111 is a power supply module designed for industrial control systems, most commonly associated with General Electric’s (GE) programmable logic controller (PLC) and automation platforms, such as the Series 90-30 or potentially other GE industrial racks and enclosures. This module serves as the primary or auxiliary power conversion unit, transforming incoming AC line voltage (e.g., 120VAC or 240VAC) into the regulated low-voltage DC power required by the system’s CPU, I/O modules, and other installed electronics. Reliable operation of the GE WES5302-111 is foundational to the entire control system’s stability, as any power anomaly can lead to processor faults, I/O communication errors, or unexpected system shutdowns. For system integrators and maintenance technicians, ensuring a robust and correctly specified power supply like the GE WES5302-111 is a critical step in system design and uptime preservation. You can review detailed specifications and connection diagrams for this power component at GE WES5302-111. Its design prioritizes clean, stable power delivery in electrically noisy industrial environments. When servicing or expanding an existing GE PLC system, confirming compatibility and load capacity of the GE WES5302-111 is essential.

Product Parameters

• Manufacturer: General Electric (GE).
• Module Type: Power Supply Module.
• Input Voltage: Typically designed for a specific AC input range, such as 120/240 VAC, 50/60 Hz. The exact specification must be verified from the module’s label or datasheet.
• Output Voltage: Provides one or more regulated DC voltage outputs. Common outputs for PLC systems are +5 VDC for logic and +24 VDC for powering I/O circuits, sensors, and relays.
• Output Current/Power Rating: Has a specified maximum output current (in Amps) or power rating (in Watts) for each voltage rail. This defines the total load it can support.
• Mounting: Designed for chassis or DIN-rail mounting within a PLC rack or control panel.
• Protection Features: Likely includes standard protections such as overvoltage, overload/short-circuit, and thermal shutdown.
• Status Indicators: Includes LED indicators for power on (AC OK) and DC output status.

Advantages and Key Features

• Designed for System Compatibility: The GE WES5302-111 is engineered to meet the specific voltage, current, and connector requirements of its corresponding GE control platform, ensuring reliable operation.
• Regulated and Clean Output: Provides stable DC power with low ripple and noise, which is crucial for the digital logic and sensitive analog measurements of a PLC system.
• Robust Construction: Built to withstand typical industrial power line disturbances, surges, and variable load conditions.
• Simplified Integration: Its form factor and electrical connections are designed for straightforward installation into the intended GE system rack or enclosure.
• Safety Certifications: Expected to carry relevant international safety certifications (e.g., UL, cUL, CE) for use in industrial equipment.

Application Cases in Relevant Fields

• Factory Automation Panels: Serving as the central power source for a GE Series 90-30 PLC controlling an automated assembly or packaging line.
• Process Control Skids: Providing power to the PLC and local I/O on a skid-mounted system for water treatment, chemical injection, or compressor control.
• Material Handling Systems: Powering the control system for conveyor networks, sortation systems, or automated storage and retrieval systems (AS/RS).
• Machinery Retrofit: Used as a replacement power supply when modernizing or repairing existing industrial machines originally equipped with GE controls.

Comparison with Competing Products
Competing products include power supply modules from other PLC manufacturers (e.g., Allen-Bradley 1606, Siemens SITOP) and generic industrial power supplies from companies like Phoenix Contact, Mean Well, or TDK-Lambda. Compared to a generic supply, the primary advantage of the GE WES5302-111 is guaranteed compatibility with the mechanical mounting, electrical connectors, and system-level power sequencing of the specific GE platform. It may also have optimized holdup time and noise immunity for that system. Generic supplies can be more cost-effective and flexible but may require additional engineering for integration. Compared to other OEM PLC power supplies, its performance is comparable, with the key differentiator being brand-specific system integration.

Selection Suggestions and Precautions

1. Verify System Compatibility: Confirm that the GE WES5302-111 is the specified power supply for your exact GE PLC model (e.g., Series 90-30 rack size) and generation. Check the original system manuals or chassis label.
2. Calculate Total Load Current: Sum the current requirements of all modules in the rack (CPU, digital I/O, analog I/O, communication modules) for each voltage rail (+5V, +24V). Ensure the GE WES5302-111‘s output ratings exceed the total calculated load with a safety margin (typically 20-30%).
3. Match Input Voltage: Critically verify the input voltage rating of the power supply against the available plant AC power. Applying an incorrect input voltage will destroy the module.
4. Consider Environmental Factors: Ensure the ambient temperature of the enclosure is within the module’s specified operating range. Provide adequate ventilation if needed.
