GE WES5302-111

Description

Product Description

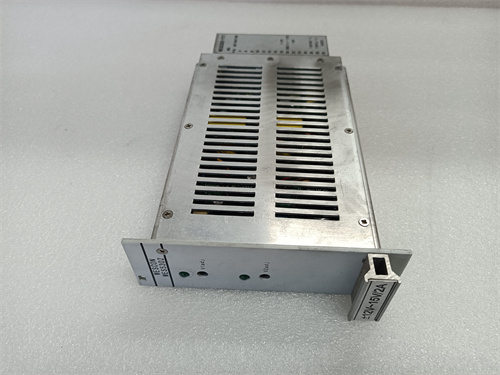

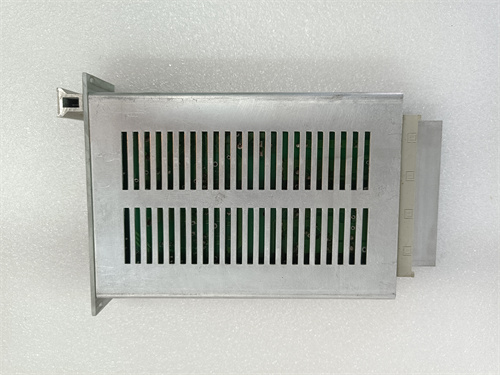

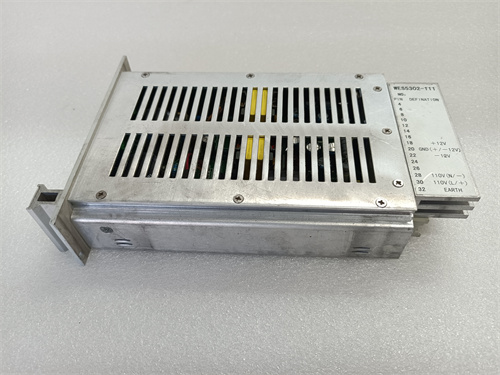

GE WES5302-111 is a digital I/O module, more specifically a discrete output module, designed for GE’s versatile WESDAC D20 distributed control and data acquisition system. This module, known as a “Digital Output Module,” functions as a critical interface between the control system’s logic and field-mounted actuators. The primary role of the GE WES5302-111 is to convert low-voltage control signals from the D20 controller into robust, isolated output signals capable of switching real-world industrial loads such as solenoid valves, motor starter coils, indicator lamps, and alarm horns. Each WES5302-111 module contains multiple output channels, allowing it to control several devices from a single unit within the D20 I/O rack. The reliability of modules like the GE WES5302-111 is fundamental to executing automated sequences, interlock logic, and safety-related shutdown functions in a wide range of process and infrastructure applications.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric) – Part of the WESDAC product line.
• System: WESDAC D20 Distributed Control and Data Acquisition System.
• Module Type: Digital Output Module.
• Output Type: Typically solid-state (triac or transistor) or relay outputs, providing isolated switching.
• Number of Channels: Commonly 8 or 16 isolated output channels per module.
• Output Rating: Each channel is rated for a specific voltage (e.g., 24-120 VDC, 120/240 VAC) and current (e.g., 2A per channel). The exact rating is critical and must be verified from the datasheet.
• Isolation: Channels are electrically isolated from the system logic and from each other to prevent fault propagation and noise interference.
• Status Indication: Features LED indicators for each channel to provide visual confirmation of the output state (ON/OFF).
• Communication: Interfaces with the D20 controller via the system’s proprietary backplane within a D20 I/O rack.
• Power Supply: Receives logic power from the rack’s backplane; the switched power for the field loads is provided through separate user wiring.

Advantages and Key Features

• High Density and Modularity: Provides multiple output points in a single module, optimizing space within the control cabinet and simplifying system expansion.
• Robust Load Driving: Capable of directly switching industrial AC/DC loads, reducing the need for intermediate relays and associated wiring.
• Electrical Isolation: Protects the sensitive control system electronics from voltage spikes, noise, and faults that may occur on the field wiring side.
• Clear Diagnostics: Per-channel LED status lights enable immediate visual troubleshooting, allowing maintenance personnel to quickly identify failed outputs or miswired circuits.
• System Integration: Seamlessly integrates into the WESDAC D20 architecture, allowing for centralized configuration, monitoring, and control from the system’s engineering workstation.
• Proven Reliability: Designed for continuous operation in industrial environments, contributing to the overall high availability of the D20 control system.

Application Cases in Industry

• Water and Wastewater Treatment: Controls pump motor starters, valve actuators for flow control, chemical dosing solenoid valves, and alarm sirens or beacon lights.
• Oil & Gas Pipeline SCADA: Operates remote block valve actuators, pump station controls, and alarm annunciators at unmanned pipeline stations.
• Electrical Substation Automation: Used for breaker control, capacitor bank switching, and activating alarm/status indicators within substation control houses.
• Manufacturing Process Lines: Executes sequence control for conveyors, initiates batch discharge valves, and controls machine tool peripherals.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Verify Exact Part Number and Revision: Ensure the module revision (“-111”) matches the specifications required for your system. Different revisions may have different output ratings or firmware.
2. Critical Load Rating Check: The most crucial step. Before installation, you must verify the voltage (AC/DC), current (in-rush and steady-state), and load type (inductive/resistive) of each field device against the GE WES5302-111 module’s specifications. Overloading will permanently damage the output channel.
3. External Protection for Inductive Loads: When driving inductive loads (solenoids, contactor coils), you must install an external suppression device, such as a flyback diode for DC loads or an RC snubber for AC loads, across the load terminals to protect the module’s solid-state switches.
4. Use Correct I/O Rack and Slot: The module must be installed in a compatible WESDAC D20 I/O rack. Verify the rack type and ensure the slot is configured correctly in the D20 system’s database.
5. Proper Wiring Practices: Use appropriately sized wires and ensure terminals are tightened to the specified torque. Field power wiring must be kept separate from low-voltage signal wiring to minimize noise.
6. Legacy System Considerations: The WESDAC D20 is a legacy system. Ensure you have access to configuration tools (WESMAINT/WESMAKE) and spare parts, or have a migration plan in place. Source the GE WES5302-111 from reputable suppliers who understand and test legacy DCS components.
