GE WES5120 2340-21003 | Power Supply Module, 24V DC, 10A

Description

Product Introduction

That water treatment plant in Florida—the one with the GE Series 90-70 system controlling the pumps—had a “rack power fail” alarm last summer. The tech on shift swapped the power supply with a spare from stores, and the alarm cleared. Later, we bench-tested the pulled WES5120. The output was 22V at no load—low enough to cause the I/O modules to act flaky. A bulging capacitor on the secondary side was the culprit. One 3 part, one 800 supply, one $10,000 service call.

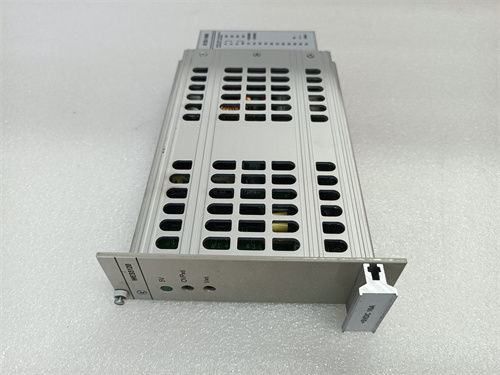

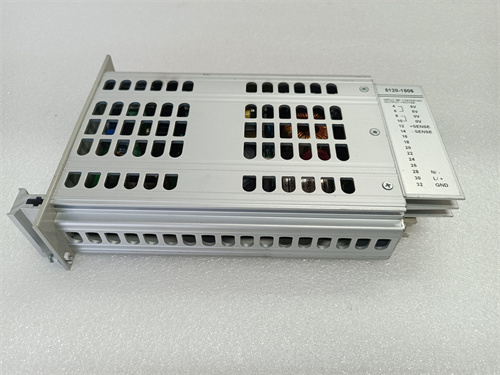

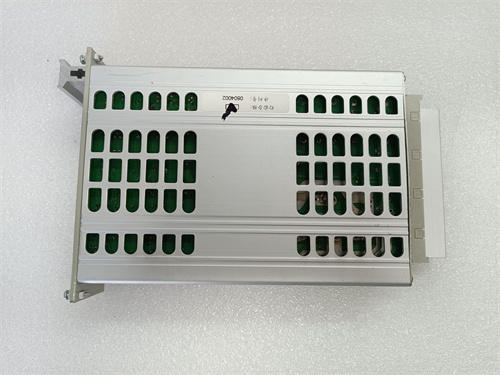

The GE WES5120 2340-21003 is a 240W power supply designed for GE automation systems. It takes 115 or 230V AC (selectable via a switch on the side) and outputs a regulated 24V DC at 10 amps. It’s a rugged industrial supply—convection cooled (no fan), conformal coated boards, and heavy-duty terminals. The 2340-21003 is the specific ordering code for this version. In a GE PLC rack, it powers the backplane, the CPU, and the I/O modules. If it fails, the whole rack goes dark.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A power supply gets a full load test. Here’s our process.

1. Incoming Verification
   • Match the model: WES5120 2340-21003. (The 2340-21003 is the specific ordering code.)
   • Visual inspection: Open the case and look for bulging capacitors, brown discoloration on the PCB.
   • Check the input voltage selector switch—make sure it’s not stuck or corroded.
   • Inspect the output terminals—no cracks, screws turn freely.
2. No-Load Test
   • Set the input switch to 230V (unless customer specifies 115V).
   • Apply power through a variac, bring up slowly—watch for sparks.
   • Measure output: 24.0V ±0.5V.
   • Green LED on, red LED off.
3. Full-Load Test
   • Connect an electronic load at 10A.
   • Run for 1 hour, logging output voltage every 5 minutes.
   • Voltage must stay above 23.5V, ripple <50 mV.
   • Measure case temperature—should stabilize below 70 °C.
4. Protection Test
   • Short the output briefly—the internal fuse should blow (or the supply should go into hiccup mode; we document which).
   • If fuse blows, we replace it (and note in the report).
   • Overvoltage test: force an internal fault (simulated), verify crowbar fires.
5. Isolation Test
   • 500V megger between AC input (shorted) and DC output (shorted)—>10 MΩ.
   • 500V megger between DC output and chassis ground—>10 MΩ.
6. Thermal Soak
   • 4 hours at 50 °C in a thermal chamber, running at 10A load.
   • Monitor output voltage and ripple—must stay within spec.
7. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding—these are heavy units.
   • Test report included—load test log, ripple measurements.

Field Replacement Pitfalls

I’ve swapped these in factories, water plants, and power stations. Here’s where people go wrong.

❗Input Voltage Switch
The little red switch on the side is easy to bump during installation. If it’s set to 115V and you feed it 230V, the supply will die instantly—input fuse blows, maybe more. Check it before you apply power. Every time.

Output Polarity
The terminals are marked + and -, but if you reverse them, the supply might have reverse polarity protection? Some do, some don’t. The WES5120 doesn’t—you’ll blow the fuse. Wire it right the first time.

Grounding
There’s a chassis ground terminal. Use it. If you don’t, the output common can float relative to ground, causing noise in the I/O modules. In one plant, an ungrounded supply caused random analog input shifts for years before someone found it.

Load Sharing
If you need more than 10A, you might parallel two supplies. But they’re not designed for active load sharing—you’ll need external OR-ing diodes. Don’t just wire them in parallel; one will carry most of the load and overheat.

Aging Capacitors
These supplies are old. Even new-old-stock units may have capacitors that have degraded from sitting. We reform them during test (gradual power-up), but if you install one that’s been on a shelf for 20 years without reforming, it might fail early.

Nail these five, and your WES5120 will run for another decade.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this supply was manufactured by GE, packed in its original box, and never installed. The capacitors have zero hours (though they may need reforming), the transformer has never been energized, and the terminals have never seen a screwdriver.

Refurbished risk in plain terms
A refurbished GE power supply often comes from a decommissioned plant. It may have run for years at high temperature. The capacitors are aged—ESR rises, ripple increases. A refurbisher tests it at low load and sells it. Six months later, in a hot cabinet, it fails.

Real cost of a refurbished failure
If this supply powers a critical PLC rack, a failure means that rack goes dark. If that rack controls a critical process, you’re looking at a unit trip. The cost of one forced outage dwarfs the price difference.

What we provide as proof

• GE box (or photos).
• Serial number recorded.
• Load test log (1 hour at 10A).
• Capacitor reforming note (if applicable).
• 12‑month warranty.

Pricing context
We’re priced 35% above the cheapest “pulled” GE supplies and 20% below GE’s original list price. That pays for the full-load test, the capacitor reforming, and the warranty that covers replacement if a capacitor fails.

Performance Benchmarks & Test Results

Test conditions: 230V AC input, 10A load, ambient 24 °C.

We keep the full load test log—ask, and we’ll email the Excel file.
