GE VMIVME-3122

GE VMIVME-3122 is a high – performance 16-bit analog – to – digital converter (ADC) board for VMEbus systems, designed for industrial – grade data acquisition and real – time signal processing in GE’s VMIVME – based automation setups. GE VMIVME-3122 supports up to 64 differential/single – ended analog input channels, with program – selectable scanning (1, 8, 16, 32, 48, or 64 channels) to match diverse industrial monitoring needs.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

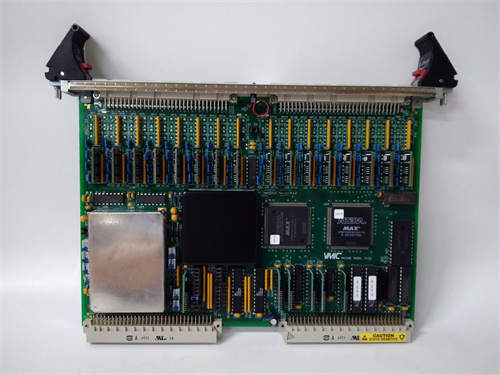

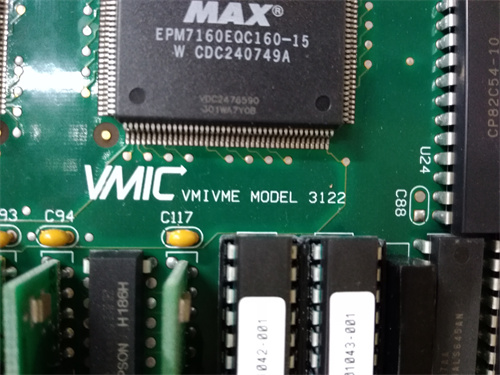

GE VMIVME-3122 is a high – performance 16-bit analog – to – digital converter (ADC) board for VMEbus systems, designed for industrial – grade data acquisition and real – time signal processing in GE’s VMIVME – based automation setups. GE VMIVME-3122 supports up to 64 differential/single – ended analog input channels, with program – selectable scanning (1, 8, 16, 32, 48, or 64 channels) to match diverse industrial monitoring needs. GE VMIVME-3122 integrates dual – ported data memory and on – board timers, minimizing host processor load while ensuring high – speed, low – latency data capture for process control applications. GE VMIVME-3122 offers programmable gain, three trigger modes, and three scan modes, adapting to sensor signals (thermocouples, RTDs, strain gages) in manufacturing and energy sectors. GE VMIVME-3122 includes optional low – pass filters and a programmable bus interrupter, enhancing signal integrity and simplifying data buffer monitoring. GE VMIVME-3122 operates from – 40°C to +85°C, with industrial – grade isolation and ESD protection to withstand harsh industrial electrical noise and vibration.

Product Parameters

Parameter Details
Module Type 16-bit Analog Input Board (GE VMIVME-3122)
Core Function High – speed analog signal digitization; VMEbus data acquisition; multi – channel scanning
Resolution 16-bit ADC
Input Channels 64 differential or single – ended (configurable)
Input Ranges ±10V, ±5V, ±2.5V, ±1.25V, 0-10V, 4-20mA (programmable)
Conversion Rate Up to 100kSPS (per channel)
Memory Dual – ported data memory (256KB)
Trigger Modes Software, external, timer – based
Scan Modes Auto – scanning, data burst, external synchronization
Bus Interface VMEbus (32-bit data/address)
Power Input +5V DC (1.2A max)
Operating Temperature – 40°C to +85°C
Humidity 0-95% RH, non – condensing
Protection ESD protection; channel isolation
Compliance VMEbus standards; CE, UL certified

Advantages and Features

  1. High Channel Density: GE VMIVME-3122’s 64 – channel design delivers high – density data acquisition without multiple module installations.
  2. Low Host Load: Dual – ported memory and on – board timers offload data handling from the host CPU.
  3. Flexible Configuration: Programmable gain, trigger, and scan modes adapt to diverse industrial sensor types.
  4. Robust Industrial Reliability: Wide temperature range and isolation ensure stable operation in harsh industrial environments.
  5. Simplified Data Monitoring: Bus interrupter and midscan/endscan flags ease data buffer management.
  6. Multi – Board Synchronization: Synchronize up to 16 units for large – scale data acquisition in test and measurement systems.

Application Cases in Application Fields

  • Automotive Manufacturing Test Benches: GE VMIVME-3122 scanned 48 channels of sensor data (pressure, torque) in engine test cells, cutting data acquisition latency by 35% and improving test accuracy.
  • Power Plant Turbine Monitoring: It digitized 32 differential inputs from turbine vibration and temperature sensors, enabling predictive maintenance and reducing unplanned downtime by 22%.
  • Aerospace Component Testing: GE VMIVME-3122 captured strain gage signals (64 channels) in structural load tests, with programmable gain ensuring precise measurement of micro – deformations.
  • Chemical Plant Process Control: It monitored 16 single – ended pH and flow sensor inputs, using auto – scanning to feed real – time data to a SCADA system, maintaining process stability with 99.9% uptime.

Comparisons with Competing Products

Parameter GE VMIVME-3122 Siemens VME Analog Input Board ABB VME ADC Module
Resolution 16-bit 12-bit 14-bit
Max Channels 64 (differential/single – ended) 32 48
Conversion Rate 100kSPS 50kSPS 80kSPS
Memory Dual – ported 256KB Single – ported 128KB Single – ported 128KB
Trigger Modes 3 (software/external/timer) 2 (software/external) 2 (software/timer)
Operating Temp – 40°C to +85°C – 25°C to +70°C – 30°C to +60°C

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE VMIVME-3122 for VMEbus systems needing high – channel, 16-bit analog data acquisition with low host CPU usage.
  • Opt for it in test benches, power generation, and manufacturing where wide – temperature operation and multi – sensor synchronization are required.

Precautions

  • Match input ranges to sensor outputs (4-20mA, ±10V) to avoid clipping and ensure data accuracy with GE VMIVME-3122.
  • Use shielded twisted – pair cables for analog inputs to minimize noise interference with GE VMIVME-3122’s signal acquisition.
  • Configure dual – ported memory correctly to prevent data collisions when accessing GE VMIVME-3122 from the VMEbus.
  • Verify VMEbus voltage (+5V) stability to protect GE VMIVME-3122’s ADC and timer circuits.
  • Do not hot – swap GE VMIVME-3122; power down the VME chassis first to prevent bus or module damage.
