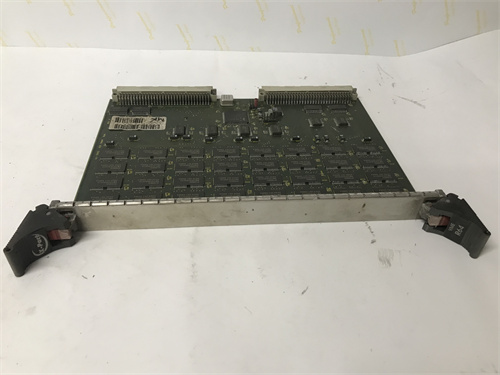

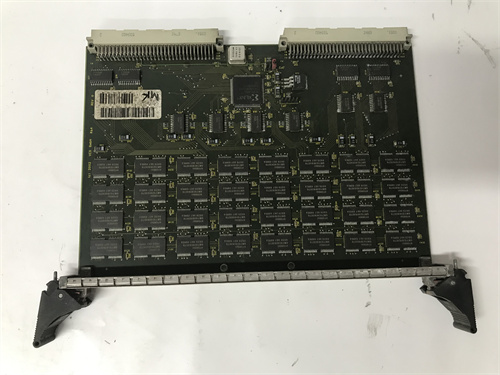

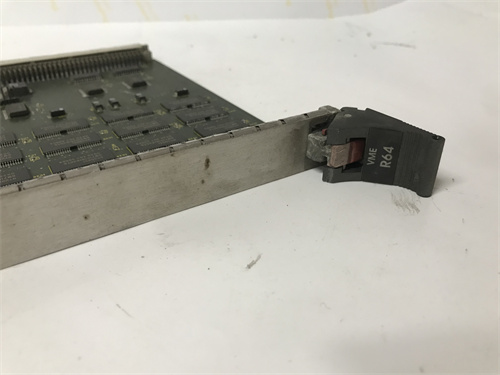

GE VME-MB-Z004

Description

Product Description

Product Parameters

• Module Type: VME bus mainboard (GE Fanuc); core hub for VME – based industrial control systems
• Core Function: VME bus data management, I/O integration, redundant communication, real – time control data processing
• Bus Interface: 32 – bit/33MHz VME64x; plug – and – play compatibility with VME – compliant backplanes
• Data Throughput: Up to 160MB/s VME bus bandwidth; <1ms latency for real – time control signals
• Communication: VME backplane data routing; supports Modbus TCP/ControlST for external network integration
• Redundancy: Compatible with Mark VIe dual/triple – redundant (TMR) system architectures
• Power: 5V DC from VME backplane; 0.5A max current; ~8W typical power consumption
• Environment: -40°C to +85°C operating temperature; 5% – 95% non – condensing RH; 6U VME form factor; ~0.5kg
• Certifications: CE, RoHS compliant; meets industrial EMC/EMI standards

Advantages and Features

1. VME Bus Core Management

   GE VME-MB-Z004 centralizes VME bus data flow, eliminating data bottlenecks and ensuring consistent communication between controllers and I/O modules.

2. Mark VIe Redundancy Compatibility

   It integrates with Mark VIe TMR/dual – redundant setups, maximizing uptime for critical turbine control systems.

3. Harsh – Environment Reliability

   GE VME-MB-Z004 operates at -40°C to +85°C with conformal coating, resisting moisture/dust for long – term stability.

4. High – Speed Low – Latency Data

   Up to 160MB/s throughput and <1ms latency keep real – time control data responsive, avoiding delays in turbine/process control.

5. Cost – Effective Integration

   Compact 6U size and low power let GE VME-MB-Z004 fit existing cabinets, cutting retrofitting costs.

Application Cases in Application Fields

• Gas Turbine Control: GE VME-MB-Z004 managed VME bus data for a 250MW plant’s Mark VIe system, linking 15 I/O modules and dual Ethernet to DCS, achieving 99.99% uptime.
• Oil Refinery Process Control: It served as the VME core in a distillation unit, routing temperature/pressure data to a SCADA system via ControlST, with redundant VME backplane operation for 6,000+ hours.
• Steel Mill Rolling Control: GE VME-MB-Z004 integrated VME – based drive controllers and I/O, processing 100+ real – time signals to regulate rolling speed, reducing material waste by 15%.
• Mark VIe Retrofit: It replaced legacy VME mainboards in a power plant, maintaining compatibility with existing I/O while boosting data throughput by 30% and lowering maintenance costs by 25%.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

• Choose GE VME-MB-Z004 for Mark VIe turbine control or VME – based systems needing high throughput, redundancy, and -40°C to +85°C operation.
• Prefer it for retrofits where VME64x compatibility and low power are key to avoiding cabinet/power upgrades.

Precautions

• Use only VME64x – compliant backplanes and qualified power supplies for GE VME-MB-Z004 to prevent bus errors.
• Follow GE’s VME backplane power sequencing guidelines for hot – swap to avoid module damage.
• Ground the chassis and use shielded cables to reduce EMI for GE VME-MB-Z004 in high – noise industrial settings.
• Verify compatibility with Mark VIe software (ControlST) and firmware versions before deployment.
