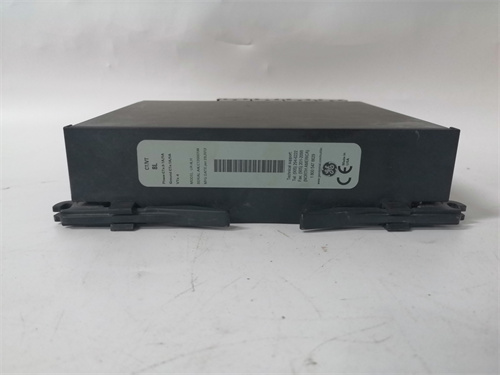

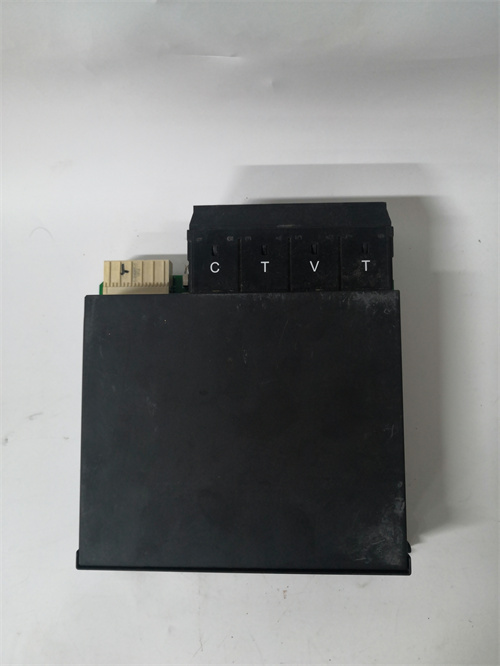

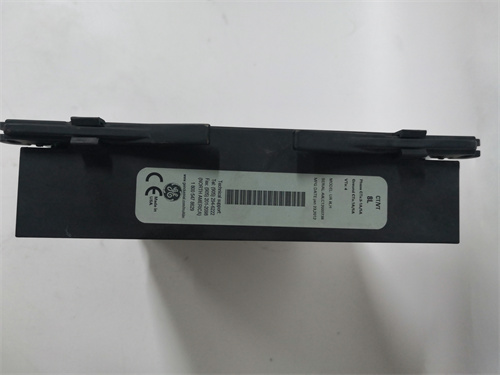

GE UR8LH

Description

Product Description

The GE UR8LH is a sophisticated Line Differential Protection Relay from the GE Multilin Universal Relay (UR) Series. This relay is a specialized protection device, not a standard PLC I/O module, designed to protect high-voltage and medium-voltage transmission and distribution lines. Its primary function is to continuously monitor the electrical current flowing into and out of both ends of a protected line (or cable) and use a differential protection algorithm to detect internal faults. The GE UR8LH performs high-speed, unit protection by comparing these currents; if the differential current exceeds a set threshold, it indicates a fault within the protected zone (like a short circuit on the line) and rapidly sends a trip command to the circuit breakers at both ends to isolate the fault. This relay is a critical component in ensuring the stability, security, and selective fault clearing of electrical power networks.

Technical Parameters and Specifications

• Device Type: Digital Line Differential Protection Relay.
• Protection Functions:
  • 87L: Percent or unrestrained line differential protection (primary function).
  • 21: Distance Protection (Zone 1, 2, 3) with mho or quadrilateral characteristics.
  • 50/51: Time and Instantaneous Phase/Neutral Overcurrent Protection.
  • 67: Directional Overcurrent Protection.
  • TOC/EFOC: Time and instantaneous overcurrent for ground faults.
• Communication Interface: Dedicated fiber-optic communication channel (or multiplexed over a telecom network) is essential for its core function. It uses the IEC 61850-9-2 process bus standard or GE’s proprietary protocol to exchange synchronized current samples (data) with the relay at the opposite end of the line in real-time.
• Inputs: Analog inputs for three-phase currents and voltages from CTs and VTs. Also includes binary inputs for status and control.
• Outputs: Form-C relay contacts for tripping, alarming, and control.
• Synchronization: Uses a highly accurate internal clock or an external IRIG-B time synchronization source to precisely time-stamp current samples, which is critical for accurate differential calculation over long distances.
• Measurement & Monitoring: High-accuracy metering of currents, voltages, power, and frequency. Provides detailed oscillographic fault records (COMTRADE) and sequence of events (SOE) logging.
• Human-Machine Interface (HMI): Front-panel LCD display, keypad, and LEDs for local operation and diagnostics.
• Power Supply: Wide-range DC or AC power supply options.

Advantages and Key Features

• High-Speed, Unit Protection: The GE UR8LH provides the fastest possible protection for a transmission line by clearing internal faults in typically 1-2 cycles (16-33 ms), minimizing damage to equipment and improving power system stability.
• Absolute Selectivity: As a unit protection scheme, it operates only for faults within its defined protected zone (between the two sets of CTs). It is inherently immune to faults outside this zone, even during heavy load or system swings, providing superior selectivity compared to distance or overcurrent relays.
• Advanced Communication and Synchronization: Its performance is built on reliable, high-speed communication and precise time synchronization. Support for modern standards like IEC 61850 ensures interoperability and future-proofing.
• Integrated Backup Protection: Combines the primary differential protection (87L) with full-featured backup functions (distance, overcurrent) in a single device, simplifying panel design and reducing overall system cost.
• Comprehensive Diagnostics and Data: Provides extensive self-diagnostics for the relay, communication channel, and CT/VT circuits. Rich fault data aids in rapid post-fault analysis and root cause determination.

Application Cases in Various Fields

• High-Voltage Transmission Lines (230kV, 500kV): Two GE UR8LH relays, one at each substation terminal, protect a critical transmission corridor. They communicate via a dedicated fiber-optic cable running along the line, ensuring fast isolation of faults to prevent widespread blackouts.
• Sub-Transmission Networks (69kV, 138kV): Protects important distribution feeder lines connecting substations to large industrial plants or urban load centers.
• Tie Lines Between Power Plants and the Grid: Protects the connection between a generating station and the main grid, ensuring that faults on the line do not destabilize the generator.
• Renewable Energy Plant Collector Systems: Can be used to protect the main export cable from an offshore wind farm or the collector lines in a large solar PV plant.

Comparison with Competing Products

Compared to line differential relays from Siemens (SIPROTEC 7SD), ABB (RED670), or Schweitzer Engineering Laboratories (SEL-311L), the GE UR8LH is a direct competitor with similar core capabilities.

• Algorithm and Performance: All top-tier relays offer ultra-high-speed operation. Differences lie in the specific implementation of the differential algorithm, restraint characteristics, and tolerance to CT saturation.
• Communication Protocol Support: All support standard protocols (IEC 61850, DNP3). The UR8LH‘s integration within the UR platform means it shares a common configuration tool (Enervista UR Setup) and hardware platform with other UR relays, which can be an advantage for utilities standardized on GE.
• Ease of Use and Software: The user interface (front panel and PC software) and the philosophy of setting management differ between manufacturers. The choice often comes down to the protection engineering team’s familiarity and preference.
• System Integration: In a substation predominantly using GE Multilin protection and control devices, choosing the UR8LH offers streamlined integration, data sharing, and support.

Selection Suggestions and Precautions

1. Communication Channel is Paramount: The selection of the GE UR8LH is contingent upon securing a reliable, low-latency, and redundant communication path between line ends (e.g., dedicated fiber, multiplexed channel). The channel’s performance directly dictates the relay’s speed and security.
2. CT and VT Requirements: Carefully specify the CTs and VTs. The relay’s performance, especially during external faults with CT saturation, depends on high-quality instrument transformers. Ensure CT knee-point voltage and burden ratings are adequate.
3. Detailed Setting Calculations: Setting the UR8LH requires detailed system studies: line parameters (R, X, B), infeed scenarios, CT ratios, and communication channel delay. Incorrect settings can lead to misoperation (false trip or failure to trip). Engage a qualified protection engineer.
4. Testing and Commissioning: Rigorous testing is mandatory. This includes end-to-end testing using a relay test set that simulates internal and external faults while simulating the communication channel delay. Verify both the differential (87L) and all backup protection functions.
5. Time Synchronization: Implement a reliable, substation-wide time synchronization source (e.g., GPS clock with IRIG-B output). Accurate time is non-negotiable for the differential algorithm to function correctly over long distances.
6. Cybersecurity for Networked Devices: As an IEC 61850-enabled device connected to the substation network, the UR8LH must be integrated with a comprehensive substation cybersecurity plan. This includes secure configuration, access control, and network segmentation per industry standards (e.g., IEC 62351). Always work with or under the guidance of a qualified protection engineer. Source the relay and its associated communication equipment from authorized channels.
