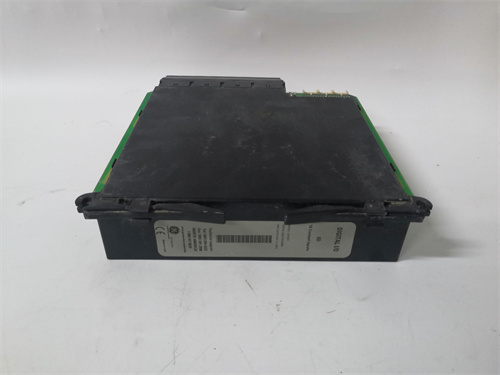

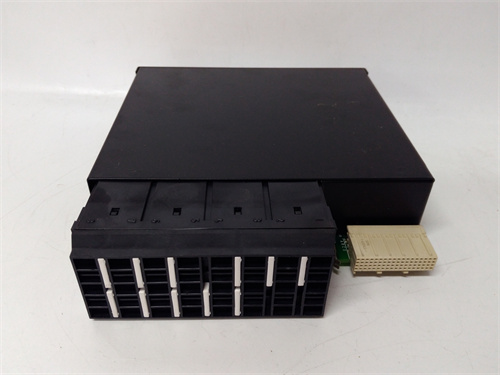

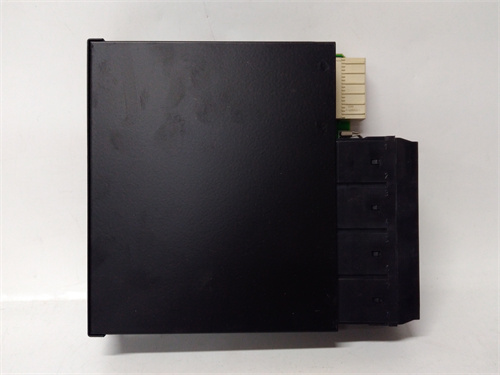

GE UR6DH

Description

Product Description

The GE UR6DH is a specialized power supply module designed as a key component within GE’s Universal Relay (UR) series of protective relays and power system automation devices. The UR series is a comprehensive line of protective relays used extensively in electrical substations and power systems for protection, control, and monitoring of transmission and distribution equipment including lines, transformers, generators, and motors. The core function of the GE UR6DH is to provide reliable, regulated DC power to the UR relay chassis and all installed modules, including the main processor, communication modules, and I/O cards. It accepts a wide range of AC or DC input voltages commonly found in substation environments and converts them to the stable voltages required by the relay electronics. Engineered for the demanding environments of electrical substations, the GE UR6DH features robust construction, high immunity to electromagnetic interference, comprehensive protection features, and the reliability required for mission-critical power system protection applications.

Product Parameters

• Model Number: GE UR6DH
• Type: Power Supply Module
• Series: GE Universal Relay (UR) Family
• Compatibility: Designed for use with all UR series protection relays (B30, C30, D30, F35, G30, L30, L90, M60, N60, T60, etc.)
• Input Voltage: Wide range AC or DC input (typical ranges: 20-60 VDC, 88-300 VDC, or 90-265 VAC depending on variant)
• Output Power: Provides regulated power to all modules in UR chassis
• Protection: Overcurrent, overvoltage, short circuit, and reverse polarity protection
• Indicators: Front-panel LEDs for power status and fault conditions
• Diagnostics: Comprehensive self-diagnostics with reporting to host relay
• Mounting: Installs in UR series chassis as a plug-in module
• Operating Temperature: -40°C to +85°C (typical for substation environments)
• Certification: CE, UL, CSA, IEC 61850 compliant, IEEE substation standards

Advantages and Features

The primary advantage of the GE UR6DH lies in its ability to provide reliable, conditioned power to UR series protection relays in the harsh environment of electrical substations. Using the GE UR6DH, protection engineers can ensure that critical protection functions remain operational even under challenging power supply conditions. The module accepts a wide range of input voltages, making it suitable for installations with different station battery voltages or AC auxiliary supplies. Comprehensive protection features safeguard the relay from input power anomalies, while diagnostic capabilities provide early warning of potential power supply issues. The wide operating temperature range of the GE UR6DH ensures reliable operation in outdoor substations and other harsh environments. The plug-in modular design allows for easy installation and replacement without complex wiring changes.

Application Cases in Application Fields

The GE UR6DH finds essential application in electrical substations and power system automation projects worldwide.

• Transmission Substations: At a 230 kV transmission substation, the GE UR6DH installed in a B30 bus differential relay provides reliable power from the station battery, ensuring continuous protection for critical transmission lines.
• Distribution Substations: In a 69/12 kV distribution substation, the GE UR6DH in an F35 feeder protection relay accepts station battery power and provides stable operation for feeder protection and control.
• Industrial Power Systems: At a large industrial facility with its own primary substation, the GE UR6DH in a C30 controller relay powers the device from the plant’s DC control voltage.
• Power Generation: In a power plant, the GE UR6DH in a G30 generator protection relay ensures reliable power from the station battery for critical generator protection functions.
• Substation Automation: The GE UR6DH powers UR series relays used in various automation and control applications throughout the substation.

Comparison with Competing Products

When compared to power supply modules from other protection relay manufacturers such as Siemens (SIPROTEC) or Schweitzer Engineering Laboratories (SEL), the GE UR6DH offers specific advantages for users invested in GE’s UR series ecosystem. It provides seamless integration with UR series relays, sharing the same chassis and backplane architecture. The module’s wide input voltage range and comprehensive protection features are tailored to the demanding requirements of substation applications. For facilities with existing GE UR series relays, the GE UR6DH provides the most direct replacement path with guaranteed compatibility.

Selection Suggestions and Precautions

When selecting the GE UR6DH for your application, first verify the specific input voltage range required for your substation’s power supply (station battery voltage or AC auxiliary supply). Confirm that the GE UR6DH variant you select matches your input voltage requirements. When installing the module in a UR chassis, follow all applicable safety procedures for working in substation environments, including proper grounding and isolation. Ensure that the module is fully seated in the chassis and properly retained. After installation, verify proper operation by checking front-panel LED indicators and confirming through the relay’s user interface. For critical substation applications, consider maintaining a spare GE UR6DH module on hand for rapid replacement in case of failure.
