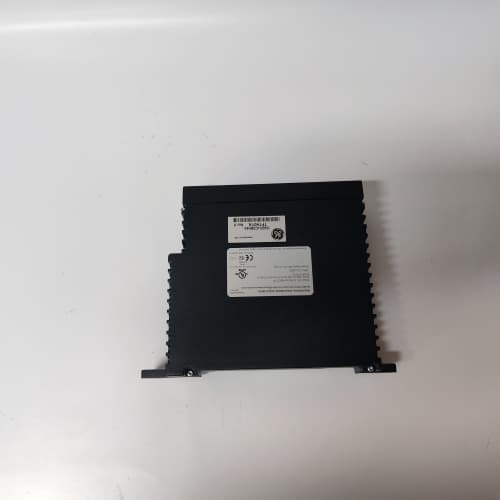

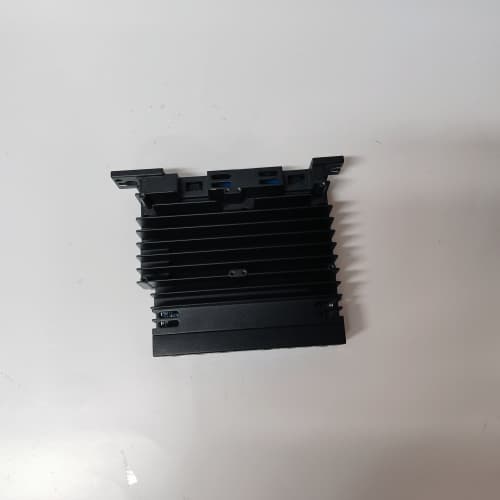

GE UCSC H1 IS420UCSCH1A-B

GE UCSC H1 IS420UCSCH1A – B is a high – performance UCSC controller module from GE’s Mark VIe control system, built for critical industrial process control like gas/steam turbines, compressors, and power plant auxiliaries. GE UCSC H1 IS420UCSCH1A – B is powered by a 1.2GHz quad – core AMD G – Series processor and runs the QNX Neutrino real – time OS, ensuring deterministic control with 1ms task execution latency.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE UCSC H1 IS420UCSCH1A – B is a high – performance UCSC controller module from GE’s Mark VIe control system, built for critical industrial process control like gas/steam turbines, compressors, and power plant auxiliaries. GE UCSC H1 IS420UCSCH1A – B is powered by a 1.2GHz quad – core AMD G – Series processor and runs the QNX Neutrino real – time OS, ensuring deterministic control with 1ms task execution latency. GE UCSC H1 IS420UCSCH1A – B supports simplex, dual – redundant, and TMR (Triple Modular Redundancy) architectures to meet SIL3 safety requirements, which is essential for high – availability power and petrochemical systems. GE UCSC H1 IS420UCSCH1A – B integrates IONet for fast I/O communication, plus Ethernet ports that support Profinet, Modbus TCP, and Ethernet/IP for seamless integration with HMI and SCADA platforms. GE UCSC H1 IS420UCSCH1A – B has embedded field agent (EFA) tech for Predix cloud connectivity, enabling remote monitoring and predictive maintenance. GE UCSC H1 IS420UCSCH1A – B operates stably in – 40°C to +70°C environments and is fully compatible with Mark VIe I/O modules, making it ideal for upgrading legacy turbine control systems.

Product Parameters

Parameter Details
Module Type UCSC Controller Module (GE UCSC H1 IS420UCSCH1A – B)
Core Function Real – time control; TMR/dual – redundant architecture; IONet/Ethernet communication; cloud – connected diagnostics
Processor 1.2GHz quad – core AMD G – Series
OS QNX Neutrino real – time operating system
Redundancy Simplex, dual – redundant, TMR (SIL3 certified)
Communication IONet (for Mark VIe I/O); 2x Ethernet (Profinet/Modbus TCP/Ethernet/IP)
I/O Interfaces 2 Hall – effect pulse inputs; 2 analog inputs; 4 digital I/O (DIO)
Power Input 24V DC (18–30V DC range); 2A max current
Operating Temperature – 40°C to +70°C
Storage Temperature – 40°C to +85°C
Weight 1.33 kg
Compliance IEC 61508 (SIL3); MIL – STD – 810G (vibration/shock)

Advantages and Features

  1. Deterministic Real – time Control: GE UCSC H1 IS420UCSCH1A – B’s quad – core CPU and QNX OS deliver 1ms task latency, meeting the dynamic control needs of turbines and compressors.
  2. SIL3 – Certified Redundancy: TMR/dual – redundant design cuts unplanned downtime by 90% in critical safety loops.
  3. Dual – Mode Communication: IONet (100Mbps) for I/O and Ethernet for enterprise connectivity ensure data flow reliability.
  4. Cloud – Connected Maintenance: EFA enables Predix integration, reducing on – site service calls by 35% via remote diagnostics.
  5. Harsh – Environment Durability: – 40°C to +70°C operation and fan – less design fit power and petrochemical control cabinets.
  6. Plug – and – Play Integration: Works with Mark VIe I/O modules to shorten system upgrade time by 40%.

Application Cases in Application Fields

  • Gas Turbine Power Plant: GE UCSC H1 IS420UCSCH1A – B controlled a 400MW gas turbine in a combined – cycle plant, using TMR redundancy to maintain 99.99% uptime during grid transients, with EFA predicting bearing issues 30 days in advance.
  • Petrochemical Compressor Station: It managed 250kW natural gas compressors, using IONet to coordinate 16 I/O modules for pressure and flow control, cutting energy consumption by 12%.
  • Steam Turbine Auxiliary Systems: GE UCSC H1 IS420UCSCH1A – B monitored 150kW boiler feed pumps, using dual – redundant Ethernet to link to the plant DCS and prevent damage from voltage sags, ensuring continuous operation.
  • Refinery Furnace Control: It regulated burner air – fuel ratios, leveraging real – time processing to reduce NOx emissions by 20% while maintaining thermal efficiency.

Comparisons with Competing Products

Parameter GE UCSC H1 IS420UCSCH1A – B Siemens S7 – 410H ABB AC 800M
Redundancy TMR/dual – redundant (SIL3) Dual – redundant (SIL2) Dual – redundant (SIL2)
Processor 1.2GHz quad – core AMD 1.0GHz dual – core Intel 800MHz dual – core ARM
Real – time OS QNX Neutrino Linux – based RTOS VxWorks
I/O Network IONet (100Mbps) PROFINET IRT ABB Industrial Ethernet
Cloud Connectivity Predix EFA MindSphere (optional) ABB Ability (optional)
Operating Temp – 40°C to +70°C – 25°C to +60°C – 30°C to +60°C

Selection Suggestions and Precautions

Selection Suggestions

  • Select GE UCSC H1 IS420UCSCH1A – B for turbine, compressor, and power plant control systems requiring SIL3 redundancy and real – time performance.
  • Opt for TMR configuration for mission – critical processes and dual – redundant for cost – effective high – availability setups.

Precautions

  • Use GE ControlST software for configuring redundancy and I/O mapping of GE UCSC H1 IS420UCSCH1A – B.
  • Verify 24V DC power supply stability and reverse polarity protection before installation.
  • Check IONet/Ethernet compatibility when integrating GE UCSC H1 IS420UCSCH1A – B with existing Mark VIe I/O packs.
  • Avoid hot – swapping the module; power down the chassis first to prevent data loss.
  • Update firmware regularly to ensure GE UCSC H1 IS420UCSCH1A – B complies with the latest safety and communication standards.
