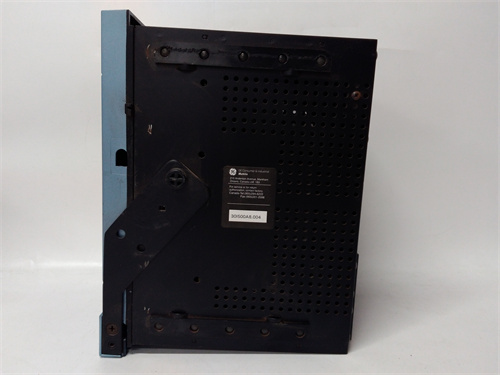

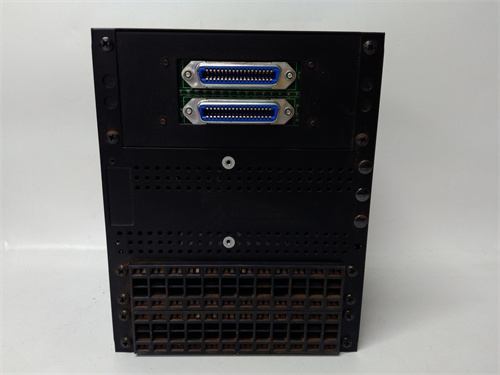

GE SR469-P5-HI-A20-E-H

Description

Product Description

The GE SR469-P5-HI-A20-E-H is an enhanced, high-performance motor management relay from the GE Multilin SR 469 series, building upon the standard SR469-P5-HI-A20-E platform with additional features or a specific hardware configuration denoted by the “-H” suffix. This device provides comprehensive protection, monitoring, and control for large, critical AC motors, integrating advanced protection functions with high-density I/O and communication in a rugged, industrial package. The GE SR469-P5-HI-A20-E-H is engineered to ensure motor reliability by preventing damage from conditions like overload, phase faults, and thermal stress, while offering extensive data for predictive maintenance. For detailed technical specifications, application guides, and configuration software, the primary resource is the official GE Vernova (Multilin) support portal for the GE SR469-P5-HI-A20-E-H. Implementing the SR469-P5-HI-A20-E-H facilitates deep integration into modern control systems, making it a cornerstone for intelligent motor control centers (MCCs) in demanding industrial environments. The “-H” variant may include specific enhancements such as a higher-resolution display, additional communication ports, or pre-loaded firmware for specialized applications.

Product Parameters

• Manufacturer / Brand: GE (GE Vernova, Multilin).
• Series: SR 469 Motor Management Relay.
• Model: SR469-P5-HI-A20-E-H.
• Rated Current: The “-A20” indicates a 20 Amp sensor input for direct connection or use with external 5A/1A Current Transformers (CTs).
• Power Supply: “-HI” denotes a high-input range power supply (e.g., 85-265 VAC/VDC).
• Enhanced Feature (“-H”): This suffix specifies an enhanced hardware version, which may include a larger or graphical display, an additional Ethernet port (dual Ethernet), integrated Profinet support, or enhanced memory for event logs and oscillography.
• Protection Functions: Comprehensive suite including thermal overload (with RTD/bi-metallic simulation), locked rotor, starts/hour, short circuit, phase unbalance/loss, ground fault, undercurrent, jam, and more.
• Control & I/O: Multiple programmable discrete inputs and Form-C relay outputs for start/stop, alarms, and trips.
• Communications: Typically includes dual RS-485 ports (Modbus RTU) and enhanced models feature dual Ethernet ports for Modbus TCP/IP, EtherNet/IP, or Profinet.
• Metering: Detailed metering for currents, voltages, power, power factor, energy, and thermal capacity used.
• Display: Enhanced interface, potentially a larger backlit graphical LCD.

Advantages and Features

• Advanced Motor Protection & Diagnostics: Sophisticated thermal modeling and protection algorithms extend motor life. Enhanced models offer extensive oscillographic fault recording and event logging for in-depth analysis.
• High-Density, Programmable I/O: Combines protection, control, and monitoring, reducing need for external components and simplifying cabinet design.
• Robust Network Integration: The “-H” enhancement often provides superior connectivity with dual, independent Ethernet ports for daisy-chaining or network redundancy, supporting modern industrial protocols.
• Enhanced User Interface: A larger graphical display on the SR469-P5-HI-A20-E-H allows for better visualization of meter data, trends, and status, simplifying local interaction and troubleshooting.
• Flexible Configuration: Highly programmable via dedicated EnerVista SR469 Setup software, allowing precise tailoring to motor characteristics and application needs.

Application Cases in Industry

• Oil & Gas (Compressor Stations): Protects large, critical motors driving gas pipeline compressors, offering advanced diagnostics and dual Ethernet for integration with station control and asset management systems.
• Mining (Material Handling): Manages and protects high-inertia motors on conveyor drives and ball mills, utilizing enhanced data logging to analyze start profiles and predict mechanical issues.
• Water & Wastewater (Large Pump Stations): Provides protection for high-power raw water or wastewater pumps, with communications enabling remote SCADA integration and condition monitoring.
• Power Generation (Auxiliary Systems): Used for boiler feed pumps, induced draft fans, and cooling water pumps, where the enhanced SR469-P5-HI-A20-E-H relay provides detailed performance data to plant information systems.
• Chemical Processing: Safeguards motors on large mixers and reactors, with enhanced models supporting Profinet for seamless integration into Siemens or other Profinet-based DCS networks.

Comparison with Competing Products

The GE SR469-P5-HI-A20-E-H competes with high-end motor management relays like the Siemens SIPROTEC 7SK80, ABB CMA 1510, and Eaton Cutler-Hammer MMAX. The “-H” enhanced version of the SR469 differentiates itself with potential features like a graphical display, dual Ethernet, and advanced oscillographic capture. Compared to its standard sibling, the -H model offers improved usability and connectivity. Against competitors, the GE SR469 series is often recognized for its powerful thermal model, extensive I/O, and the depth of its EnerVista configuration software, which provides granular control over protection curves and logic programming.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Choose the GE SR469-P5-HI-A20-E-H for protecting large, critical motors where advanced local diagnostics (via enhanced display), dual-network connectivity for redundancy, or specific protocol support (like Profinet) is required.
  2. Verify the exact meaning of the “-H” suffix for your specific procurement batch by consulting the latest GE datasheet, as enhancements can vary.
  3. Match the relay’s current input rating (“A20”) with the motor’s FLC and external CT ratios. Confirm the power supply range (“-HI”) matches your available control voltage.
• Precautions:
  1. Complex Configuration: The relay’s capability requires careful configuration using EnerVista software by trained personnel. Incorrect settings can lead to nuisance trips or failure to protect.
  2. CT Connections & Polarity: Accurate wiring and polarity of current transformers are critical for proper operation. Reversed CTs will cause incorrect metering and maloperation.
  3. Thermal Model Setup: Accurately entering the motor’s thermal characteristics (from the motor datasheet) is essential for the overload protection to function correctly.
  4. Network Configuration: When using advanced communication features (dual Ethernet, Profinet), ensure proper IP addressing, network topology, and data mapping are configured in both the relay and the controlling system.
  5. Sourcing and Documentation: Source from authorized GE distributors using the full model number SR469-P5-HI-A20-E-H. Ensure you have access to the latest version of EnerVista SR469 Setup software and the specific product manual for the “-H” variant to leverage all enhanced features.
