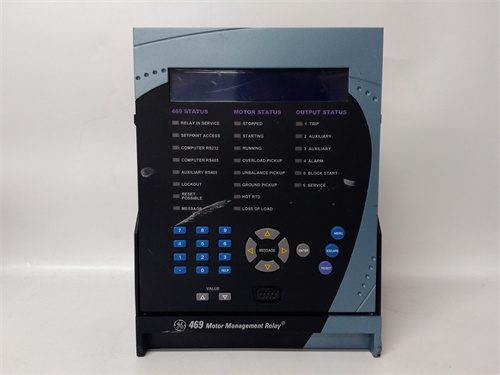

GE SR469-P5-HI-A20-E

Description

Product Description

The GE SR469-P5-HI-A20-E is a sophisticated, high-accuracy motor management relay from the GE Multilin SR 469 series, designed to provide comprehensive protection, monitoring, and control for large, critical AC motors. This specific model integrates advanced protection functions with high-density I/O and communication capabilities, serving as an intelligent guardian for motors in demanding industrial applications. The GE SR469-P5-HI-A20-E continuously monitors electrical and thermal parameters to prevent damage from conditions like overload, phase unbalance, locked rotor, and ground faults. For detailed technical specifications, application guides, and configuration software, the primary resource is the official GE Vernova (formerly GE Multilin) support portal for the GE SR469-P5-HI-A20-E. Implementing the SR469-P5-HI-A20-E allows for predictive diagnostics and reduces unplanned downtime by providing detailed information on motor health and performance. This relay is a cornerstone of modern motor control centers (MCCs) where reliability and data integration are paramount.

Product Parameters

• Manufacturer / Brand: GE (GE Vernova, Multilin).
• Series: SR 469 Motor Management Relay.
• Model: SR469-P5-HI-A20-E.
• Rated Current: The “-A20” indicates a specific current sensor input range, typically up to 20 Amps for direct CT connection or designed for use with external 5A or 1A current transformers (CTs) for higher motor ratings.
• Power Supply: The “-HI” suffix often denotes a high-input range power supply (e.g., 85-265 VAC/VDC).
• Protection Functions: Includes comprehensive protections: Thermal Overload (with RTD/bi-metallic simulation), Locked Rotor, Starts per Hour, Short Circuit (Instantaneous/Time Overcurrent), Phase Unbalance/Loss, Ground Fault (50N/51N), Undercurrent, and Jam.
• Control & I/O: Features multiple programmable discrete inputs (for status, control, RTDs) and discrete outputs (Form-C relay contacts) for start/stop control, alarms, and trip commands.
• Communications: Equipped with multiple serial ports (RS-485) supporting protocols like Modbus RTU, and often an Ethernet port for Modbus TCP/IP, facilitating integration into PLC/DCS/SCADA systems.
• Metering: Provides detailed metering for currents, voltages, power, power factor, energy, and thermal capacity used.
• Display: Includes a backlit LCD for local status, meter readings, and event log access.

Advantages and Features

• Advanced Motor Protection: Sophisticated algorithms provide highly accurate thermal modeling and protection, extending motor life and preventing catastrophic failures.
• High-Density I/O: Combines protection, control, and monitoring in a single device, reducing the need for additional auxiliary relays and meters in the motor starter.
• Extensive Communication: Native support for industrial protocols allows for seamless integration into plant-wide control and asset management systems for centralized monitoring and data logging.
• Powerful Diagnostics: Records detailed event logs, trend data, and oscillographic fault records, enabling root cause analysis of trips and predictive maintenance planning.
• Flexible Configuration: Highly programmable via dedicated EnerVista SR469 Setup software, allowing it to be tailored to the exact motor characteristics and application requirements.

Application Cases in Industry

• Oil & Gas (Upstream & Refining): Protects critical motors driving offshore platform seawater injection pumps, pipeline compressors, and refinery crude oil charge pumps.
• Mining: Manages and protects large motors on ball mill drives, conveyor systems, and slurry pumps, where starts are frequent and loads are heavy.
• Water & Wastewater Treatment: Provides protection for large raw water intake pumps, aeration blowers, and high-head effluent pumps essential for plant operation.
• Power Generation: Used for boiler feed pumps, induced draft (ID) and forced draft (FD) fans, and circulating water pumps within a power plant.
• Chemical & Pharmaceutical: Safeguards motors on large mixers, reactors, and centrifugal compressors where process continuity is critical.

Comparison with Competing Products

Direct competitors include motor management relays such as the Siemens SIPROTEC 7SK80, ABB CMA, and Eaton Cutler-Hammer MMAX. The GE SR469-P5-HI-A20-E differentiates itself with its exceptional processing power for advanced algorithms, excellent oscillographic recording capabilities, and very high I/O density. Compared to a basic thermal overload relay, the SR469 offers a quantum leap in functionality, diagnostics, and integration. Against competitors, GE’s offering is often noted for its robust thermal model and the depth of its configuration software (EnerVista), providing very fine-grained control over protection curves and logic.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the GE SR469-P5-HI-A20-E for protecting large, critical, or expensive motors (typically >100 HP) where advanced diagnostics, communication, and precise protection are justified.
  2. Accurately match the relay’s current input rating (“A20”) with the motor’s full-load current (FLC) and the ratio of the external current transformers (CTs) if used.
  3. Choose the correct power supply variant (“-HI”) based on the available control voltage in the motor starter cabinet.
• Precautions:
  1. Complex Configuration: The relay’s power is also its complexity. Proper configuration using the EnerVista software by a trained professional is essential. Incorrect settings can lead to nuisance trips or failure to protect.
  2. CT Connections & Polarity: Correct wiring and polarity of the current transformer (CT) circuits are critical. Reversed CTs can cause erroneous readings and maloperation.
  3. Thermal Model Setup: The motor’s thermal characteristics (locked rotor time, hot/cold curve ratios) must be accurately entered for the thermal overload protection to function correctly.
  4. Communication Configuration: When integrating with a PLC/DCS, ensure the Modbus address, baud rate, and data register mappings are correctly configured on both the SR469-P5-HI-A20-E and the master device.
  5. Sourcing and Software: Source from authorized GE distributors. Ensure you have access to the latest version of the EnerVista SR469 Setup software for configuration and firmware updates. Always verify the full model string to ensure all features (power supply, I/O, communications) meet the application needs.
