GE SM128V | 16-Channel Analog Input, In Stock

Description

Product Introduction

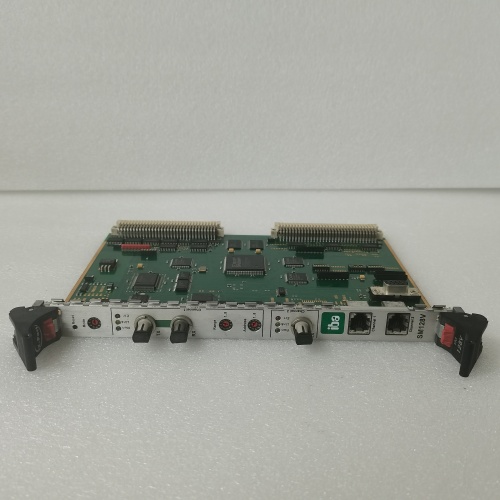

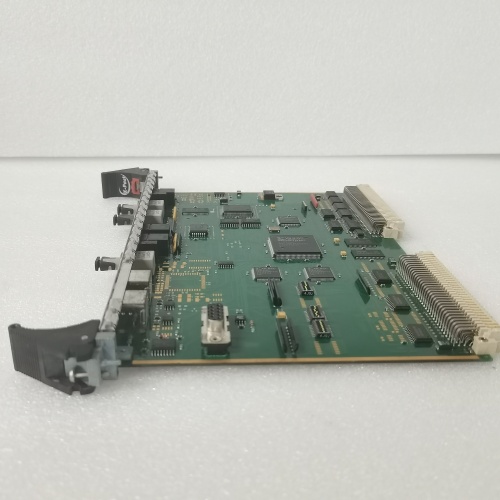

The GE SM128V is a 16-channel analog input module for the Genius I/O distributed control system. This module accepts analog signals from field devices such as pressure transmitters, temperature sensors, flow meters, and level transmitters, converting them to digital values for transmission over the Genius bus to a PLC or DCS controller. The SM128V mounts on a Genius I/O terminal base and is a key component for analog signal acquisition in legacy GE control systems.

The Genius I/O platform was GE’s flagship distributed I/O system for decades, widely deployed in power generation, water treatment, manufacturing, and material handling. The SM128V was the high-density analog input option for the Genius I/O family. Although GE has transitioned to newer I/O platforms such as VersaMax and PACSystems, thousands of Genius I/O systems remain in operation. For facilities still running Genius I/O, sourcing verified SM128V modules is essential for maintaining analog input capability without undertaking costly system migrations.

Key Technical Specifications

Key Selling Points & Differentiators

• Genius I/O Compatibility: Direct replacement for original GE Genius I/O SM128V modules. No configuration changes or bus modifications required when replacing with the same part number.
• High Channel Density: 16 analog input channels per module reduces I/O footprint in Genius I/O systems. Ideal for applications with large numbers of analog inputs.
• Multiple Input Ranges: Each channel can be independently configured for current or voltage inputs via DIP switches or software configuration.
• Genius Bus Integration: Communicates over the standard Genius bus at 153.6 kbps, compatible with Series 90-30, Series 90-70, and third-party Genius bus masters.
• Authenticity Guarantee: Each unit undergoes visual inspection for GE Fanuc OEM markings, serial number traceability, and PCB integrity. We test every module on a live Genius bus system before shipping.

Frequently Asked Questions (FAQ)

Q: Which Genius I/O systems is the SM128V compatible with?
The SM128V is compatible with all Genius I/O systems, including:

• GE Series 90-30 with Genius Bus Controller (GBC)
• GE Series 90-70 with Genius Bus Controller
• GE Genius I/O standalone systems
• Third-party systems with Genius bus interface

It mounts on a Genius I/O terminal base. Verify your terminal base model to ensure compatibility.

Q: Is this module discontinued?
Yes. GE has discontinued the Genius I/O product line. The SM128V is no longer in active production. Availability is limited to new surplus and tested used inventory. For Genius I/O systems still in operation, we recommend securing spares while stock remains available.

Q: What is the difference between the SM128V and the SM128?
The SM128V is the high-density analog input module (16 channels). The SM128 is likely a different variant or an earlier revision. If your system uses an SM128, verify compatibility before replacing with an SM128V. The SM128V offers higher channel density and may have different termination requirements.

Q: How do I configure the input range for each channel?
Configuration is typically done via DIP switches on the module or through the Genius bus controller software. Each channel can be configured for:

• 4 to 20 mA
• 0 to 20 mA
• 0 to 10 V
• ±10 V

Before removing your existing module, we recommend photographing the DIP switch settings. If you are using software configuration, the settings are stored in the bus controller and do not require manual switch adjustment.

Q: Does the SM128V provide loop power to field devices?
No. The SM128V does not source loop power. Field devices require an external 24 V DC power supply connected at the field termination. The module measures the current or voltage signal but does not provide excitation.

Q: Can I hot-swap the SM128V in a running Genius I/O system?
No. The Genius I/O system does not support hot-swap of I/O modules. The system must be powered down or the module must be placed in a de-energized state before removal or installation. Attempting to remove or install a module with power applied can damage the module, the terminal base, or the bus.

Q: What testing do you perform before shipping?
We test every SM128V on a live Genius bus system with a GE Series 90-70 or Series 90-30 controller. Our test procedure includes:

• Visual inspection for physical damage, corrosion, or previous repairs
• Edge connector cleaning and inspection
• Genius bus communication verification
• Input channel testing across all 16 channels with precision current and voltage sources
• Accuracy verification against expected values
• DIP switch configuration validation
• 24-hour continuous power-on soak test

A test report with channel measurements and test results is included with each shipment.
