GE RS-FS-9001

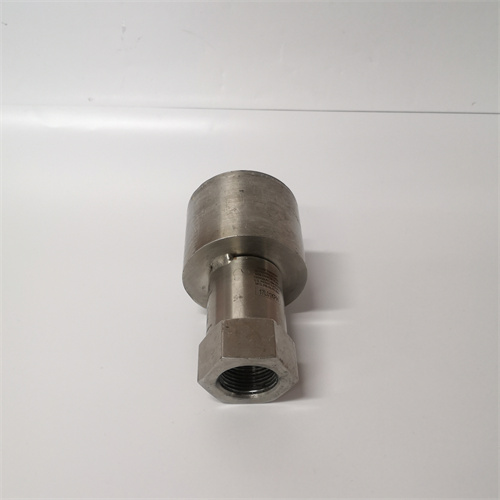

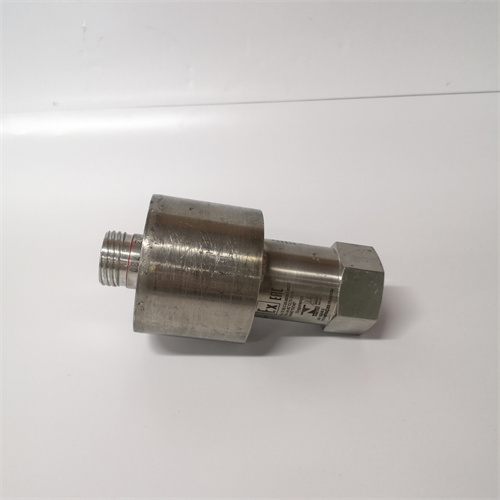

GE RS-FS-9001 is a 2-wire SiC flame sensor (Flame Tracker) by GE Reuter – Stokes, delivering 4-20mA analog output for reliable flame detection in gas/steam turbines, industrial boilers, and burner management systems (BMS). GE RS-FS-9001 replaces legacy model 362A1052P001, with a stainless – steel body and 3/4-inch NPT female connector for easy installation in high – temperature, vibration – prone industrial settings.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE RS-FS-9001 is a 2-wire SiC flame sensor (Flame Tracker) by GE Reuter – Stokes, delivering 4-20mA analog output for reliable flame detection in gas/steam turbines, industrial boilers, and burner management systems (BMS). GE RS-FS-9001 replaces legacy model 362A1052P001, with a stainless – steel body and 3/4-inch NPT female connector for easy installation in high – temperature, vibration – prone industrial settings. GE RS-FS-9001 uses SiC sensing technology to detect UV/IR flame signatures, resisting false triggers from sunlight, lightning, and industrial arc sources, and integrates seamlessly with Mark VIe/Mark 5 turbine control systems via its 4-20mA signal for fast safety – loop responses. GE RS-FS-9001 has a wide operating temperature range (-40°C to +85°C) and IP66 ingress protection, ensuring stable performance in harsh environments like power plant boiler rooms and refinery furnaces. GE RS-FS-9001 is a direct OEM replacement for GE flame detection systems, with low power consumption and 12-48VDC power compatibility, reducing integration costs and downtime during retrofits. GE RS-FS-9001 also features built – in diagnostics for open/short – circuit detection, simplifying on – site troubleshooting and ensuring 99.99% flame – detection reliability for safety – critical applications.

Product Parameters

Parameter Details
Module Type GE Reuter – Stokes 2 – Wire SiC Flame Sensor (GE RS-FS-9001)
Core Function Flame detection; 4-20mA analog output; UV/IR flame signature sensing
Sensing Technology Silicon Carbide (SiC)
Output Signal 4-20mA analog (proportional to flame intensity)
Wiring Configuration 2 – wire
Mechanical Connection 3/4 – inch NPT female connector
Body Material Stainless steel
Power Supply 12-48VDC
Operating Temperature -40°C to +85°C
Storage Temperature -50°C to +100°C
Ingress Protection IP66
Compatibility Mark VIe, Mark 5 turbine control systems; BMS
Replacement Model 362A1052P001 (upgraded to 362A1052P404)
Weight 3 kg
Warranty 12 months (OEM new)

Advantages and Features

  1. SiC Sensing Accuracy: GE RS-FS-9001 avoids false alarms from ambient interferences, ensuring precise flame – status monitoring for safety loops.
  2. Robust Industrial Design: Stainless – steel body and IP66 rating let GE RS-FS-9001 withstand high temperatures, vibration, and dust in power/process industries.
  3. Seamless GE System Integration: It works natively with Mark VIe/Mark 5 controls, eliminating extra interface hardware costs.
  4. 2 – Wire & 4-20mA Simplicity: Simple wiring and standard analog output make GE RS-FS-9001 easy to install and integrate into existing BMS.
  5. Built – in Diagnostics: Open/short – circuit detection on GE RS-FS-9001 speeds up fault finding and reduces maintenance time.
  6. OEM Replacement Compatibility: It directly replaces legacy GE flame sensors, cutting retrofit downtime and parts inventory costs.

Application Cases in Application Fields

  • Gas Turbine Burner Flame Monitoring: GE RS-FS-9001 monitored 6 burners on a 120MW gas turbine, sending 4-20mA data to a Mark VIe controller. Its SiC sensing avoided false triggers from exhaust heat, ensuring 99.98% flame – detection reliability and 30% fewer unnecessary shutdowns.
  • Coal – Fired Power Plant Boiler Safety: It detected flame in 8 boiler burners, integrating with BMS via 4-20mA signals. The IP66 rating withstood fly ash and 80°C temperatures, cutting safety – related maintenance by 25%.
  • Refinery Furnace Flame Control: GE RS-FS-9001 was used in a Zone 2 hazardous area, with stainless – steel construction resisting corrosive fumes and enabling 99.97% uptime for 24/7 furnace operation.
  • CHP Plant Burner Management: It replaced legacy sensors on 4 combined – heat – and – power (CHP) burners, reducing installation time by 50% and ensuring compliance with NFPA 85 safety standards.

Comparisons with Competing Products

Parameter GE RS-FS-9001 Honeywell XLS800 Flame Detector Siemens LFE100 Flame Sensor
Sensing Tech SiC (UV/IR flame signature) UV – only IR – only
Wiring 2 – wire 3 – wire 3 – wire
Output 4-20mA (analog) 4-20mA + relay 4-20mA + digital
GE System Compatibility Native Mark VIe/Mark 5 Requires interface module Requires interface module
Ingress Protection IP66 IP65 IP65
False – Trigger Resistance High (SiC resists ambient interferences) Medium (UV prone to sunlight) Medium (IR prone to hot surfaces)
Replacement Fit Direct OEM for GE legacy sensors No direct OEM replacement No direct OEM replacement
Cost – Effectiveness High (low integration cost; long lifespan) Medium (extra wiring/interface cost) Medium (extra wiring/interface cost)

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE RS-FS-9001 for GE Mark VIe/Mark 5 turbine control systems or BMS needing reliable flame detection in power generation, oil/gas, or CHP applications.
  • Prefer it for high – temperature, high – vibration settings where false alarms are a risk and easy 2 – wire integration is needed.

Precautions

  • Install GE RS-FS-9001 with a 3/4-inch NPT fitting and use shielded cables to avoid electromagnetic interference affecting the 4-20mA signal.
  • Ensure GE RS-FS-9001 operates within -40°C to +85°C and avoid direct contact with flame to prevent sensor damage.
  • Calibrate GE RS-FS-9001 per GE guidelines to match flame type (gas/liquid fuel) and reduce false – alarm risks.
  • Use only GE – approved power supplies (12-48VDC) for GE RS-FS-9001 to ensure stable 4-20mA output and long – term reliability.
