GE MVR1600-4601

Description

Product Description

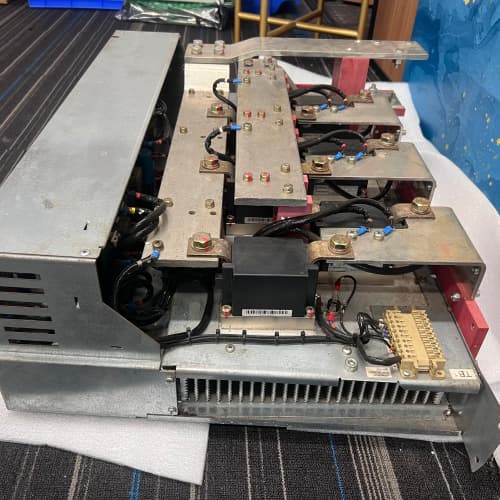

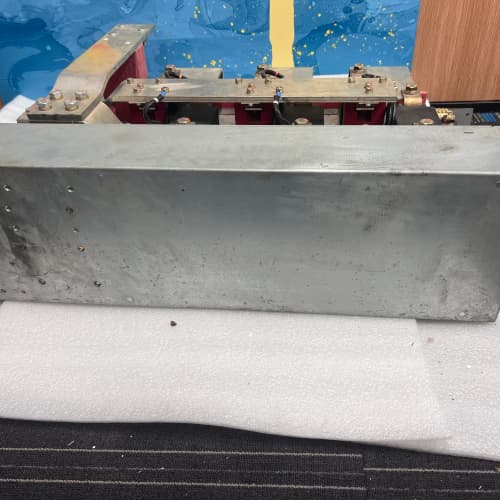

GE MVR1600-4601 is a Medium Voltage Solid-State Soft Starter from GE’s Multilin (formerly GE Industrial Solutions) product line. This device is not a PLC spare part but a powerful motor controller used in conjunction with PLC systems. The primary function of the GE MVR1600-4601 is to manage the starting and stopping of large medium-voltage AC induction motors (typically 2.3kV to 13.8kV). It limits the inrush current and controls the torque during startup by gradually ramping up the voltage applied to the motor, thereby reducing mechanical stress on the motor, coupling, and driven equipment, and minimizing voltage dips on the plant’s electrical network. The MVR1600-4601 receives a start/stop command from a PLC’s digital output and provides status and fault feedback to the PLC’s digital inputs. For system engineers, integrating a robust soft starter like the GE MVR1600-4601 is key to protecting high-value rotating assets and maintaining power system stability.

Product Parameters / Technical Specifications

• Manufacturer: GE (Multilin / GE Industrial Solutions)

• Product Line: GE Multilin MVR Solid-State Reduced Voltage Soft Starters

• Functional Designation: Medium Voltage Soft Starter

• Voltage Rating: Designed for medium voltage applications. The “4601” in the model number typically indicates a specific voltage class, such as 4160V (4.16kV).

• Current Rating: The “1600” likely refers to the maximum motor full-load amperage (FLA) it can handle (e.g., 1600 Amps).

• Control Method: Solid-state, using reverse-parallel silicon-controlled rectifiers (SCRs) to phase-control the voltage.

• Start Features: Adjustable initial torque, current limit, ramp time (linear or quadratic), and kickstart for high breakaway loads.

• Stop Features: Optional soft stop (ramp down) and precision停车.

• Protections: Integrated motor protection functions such as overload, current imbalance, stall, jam, and undercurrent.

• Communication: Often includes serial communication options (Modbus RTU, Profibus) for integration with PLC/DCS systems, in addition to hardwired I/O.

• Enclosure: A large, freestanding or rack-mounted cabinet suitable for medium-voltage switchgear.

Advantages and Key Features

• Reduced Mechanical Stress: The primary benefit of the GE MVR1600-4601 is the dramatic reduction of torque spikes and torsional stress during motor starts, extending the life of motors, pumps, fans, and gearboxes.

• Minimized Electrical Disturbance: Limits inrush current, preventing excessive voltage dips that can disrupt other sensitive equipment on the same power supply.

• Integrated Advanced Motor Protection: Goes beyond simple starting; provides comprehensive thermal and electrical protection for the motor, often eliminating the need for a separate protection relay.

• Energy Efficiency: Can reduce energy demand charges associated with high starting currents and provides soft stop features that can reduce water hammer in pumping systems.

• Flexible Control & Diagnostics: Offers programmable start curves and provides detailed diagnostic information (starts counter, thermal capacity, fault logs) accessible via keypad or communication network.

• Robust and Reliable: Built for heavy-duty industrial service with high-voltage-rated components and designed for long-term reliability.

Application Cases in Industry

• Large Pump Control: Ideal for starting large centrifugal pumps in water/wastewater treatment, mines, and oil & gas pipelines to prevent water hammer and network surges.

• Fan and Blower Starting: Used on induced draft (ID) and forced draft (FD) fans in power plants and large HVAC systems to manage high inertia starts.

• Compressor Starting: Manages the high starting torque of large air and process gas compressors.

• Conveyor and Crusher Systems: Provides smooth acceleration for long overland conveyors and large crushers in mining and aggregate industries.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Precise Motor Data is Essential: You must know the exact motor specifications: Rated Voltage (kV), Full Load Amps (FLA), Locked Rotor Current (LRC), and the inertia of the driven load (WK²). The GE MVR1600-4601 must be sized correctly for all these parameters.

2. Consult Electrical System Study: An electrical study should be performed to ensure the soft starter’s harmonic generation during start is acceptable for the plant’s power system and that any existing power factor correction capacitors are suitably protected.

3. Proper Commissioning is Critical: The start profile (initial torque, ramp time, current limit) must be carefully tuned on-site to match the driven load. Incorrect settings can lead to failed starts, excessive current, or prolonged starting times.

4. Cooling and Ambient Conditions: Ensure the soft starter cabinet is installed in a well-ventilated area within its specified ambient temperature range. Overheating is a common cause of failure.

5. Safety First – Medium Voltage Hazard: Installation, testing, and maintenance must be performed only by qualified medium-voltage electricians following all appropriate safety standards (lock-out/tag-out, arc-flash PPE). The MVR1600-4601 contains lethal voltages.

6. Sourcing and Support: Source this specialized equipment from authorized GE distributors or system integrators who can provide technical support, sizing software, and commissioning services.
