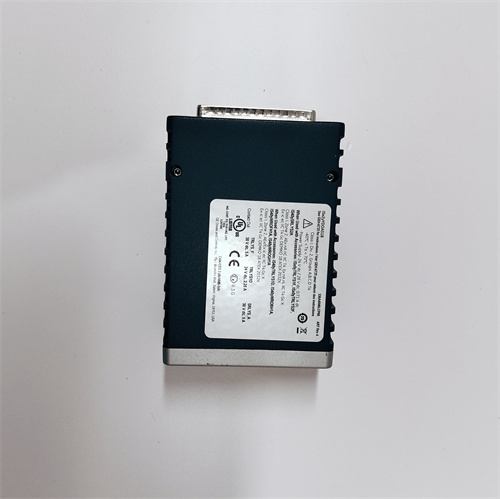

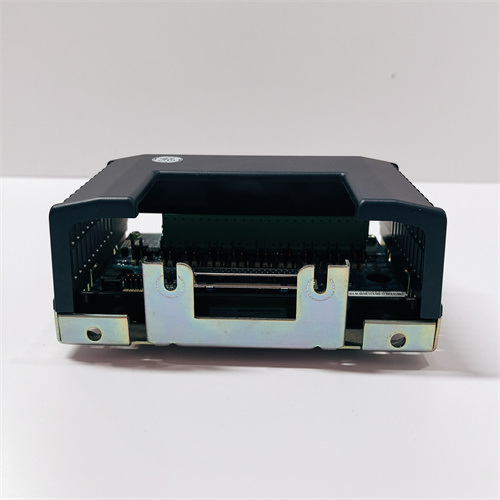

GE IS420YDOAS1B

Description

Product Description

GE IS420YDOAS1B is a digital output module belonging to the Mark VIe family, specifically designed for safety-critical and high-reliability control applications in industrial turbine systems. This module, identified as a YDOA (an output module variant), is engineered to execute control commands from the Mark VIe controller by switching discrete field devices ON or OFF. The primary function of the GE IS420YDOAS1B is to provide a robust, isolated interface between the low-voltage logic of the control system and higher-power field loads such as solenoid valves, motor starters, relay coils, and alarm annunciators. As a core component of the I/O pack system, the IS420YDOAS1B ensures that critical shutdown and control sequences are carried out with precision and reliability. System designers rely on the deterministic performance of modules like the GE IS420YDOAS1B to maintain operational safety and availability in demanding environments.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric) / Emerson
• Series: Mark VIe Speedtronic Turbine Control
• Functional Designation: Digital Output Module
• Output Type: Typically solid-state or relay-based outputs, providing dry contact closures or a switched voltage.
• Output Channels: Contains multiple isolated output channels (e.g., 8, 16), each capable of switching an independent load.
• Output Rating: Each channel is rated for a specific voltage (e.g., 24-120VDC or 120/240VAC) and current (e.g., 2A) capacity. Crucial to verify from datasheet.
• Isolation: Channels are individually or group-isolated from the control logic and from each other to prevent fault propagation.
• Status Indication: Features LED indicators per channel for real-time visual status (ON/OFF, fault).
• Communication: Interfaces with the Mark VIe controller via a dedicated bus connector on its associated terminal board.

Advantages and Key Features

• High Reliability & Deterministic Performance: Designed for safety and protection systems where output response time is critical and guaranteed.
• Robust Load Driving: Capable of directly switching industrial-grade loads without the need for intermediary relays in many cases, simplifying cabinet design.
• Comprehensive Diagnostics: Per-channel LED status allows for immediate visual fault localization. Module health and status are also communicated to the main controller for system-level diagnostics.
• Isolation for Safety: Electrical isolation between channels and from the control logic prevents noise interference and limits the impact of a field-side short circuit.
• Hot-Swappable Design: In systems designed for redundancy or online maintenance, the module can typically be replaced without a full system shutdown.
• Integrated System Component: Fully recognized and configured within the Mark VIe ToolboxST engineering software, allowing for easy channel mapping and testing.

Application Cases in Industry

• Turbine Protection Systems: Directly controls critical shutdown valves (fuel, steam), activates fire suppression systems, or trips the turbine by de-energizing the master protective relay circuit.
• Auxiliary System Control: Operates lube oil pump motors, cooling fan starters, hydraulic unit pumps, and seal oil systems in power generation plants.
• Sequencing & Automation: Controls the sequence of operations for startup and shutdown procedures, such as opening/closing bleed valves or initiating purge cycles.
• Alarm Annunciation: Drives audible alarms or warning lights in the control room by energizing horn or light circuits.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Exact Model Verification: The suffix “S1B” denotes a specific hardware revision and output characteristics. Always match the part number exactly from your system’s Bill of Materials or configuration file.
2. Load Rating Verification: Critically important. Before installation, verify the voltage (AC/DC) and current rating (in-rush and steady-state) of each field device against the specifications of the GE IS420YDOAS1B output channels. Overloading will damage the module.
3. Flyback Diode / Suppression: When driving inductive loads (solenoids, relay coils), external flyback diodes or RC snubbers are typically required across the load to protect the module’s output transistors from voltage spikes.
4. Use Correct Terminal Board: This module must be installed into its designated, compatible terminal board (e.g., a specific model like the IS200TBAIHxxx), which provides the field wiring connections and power distribution.
5. Software Configuration: The module must be correctly configured within the Mark VIe ToolboxST application for the controller to recognize it and map its I/O points to the control logic.
6. Sourcing: For such a critical component, purchase from authorized distributors or highly reputable surplus dealers who can provide testing certification. Avoid untested modules for protection-related outputs.
