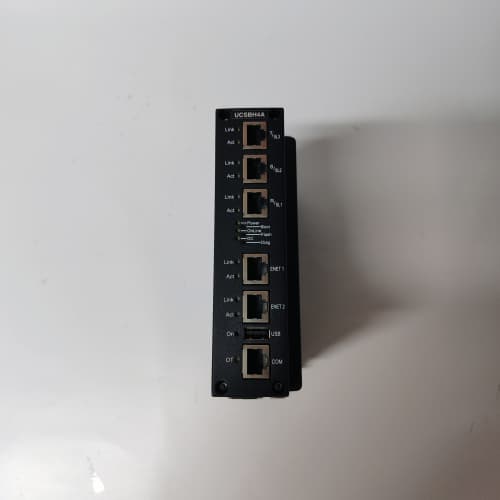

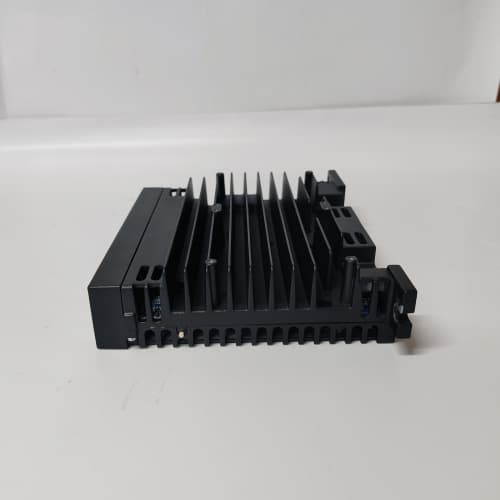

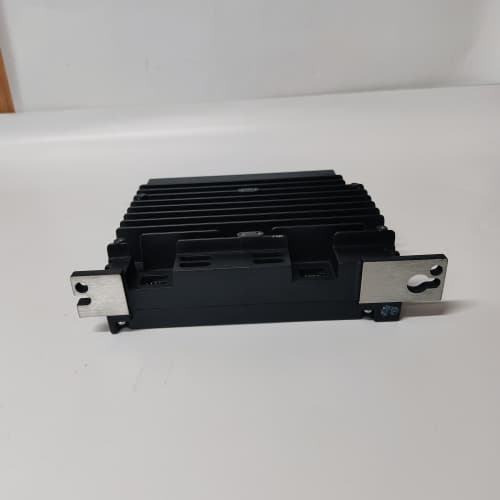

GE IS420UCSCH1A

Description

Product Description

The GE IS420UCSCH1A is a critical communication and control module within the GE Mark VI or Mark VIe gas/steam turbine control system. This module is specifically a Universal Controller Serial Communication Hub board, designed to manage and interface serial communication networks between the turbine controller and various subsystems or external devices. The GE IS420UCSCH1A serves as a gateway, handling protocols such as Modbus RTU, Modbus TCP/IP (via an Ethernet bridge), or other GE proprietary serial links. It facilitates data exchange for functions like vibration monitoring, emissions reporting, synchronization, and communication with plant Distributed Control Systems (DCS). The module’s role is to provide reliable, deterministic data routing in the electrically noisy environment of a turbine enclosure. The reliability and protocol support of the GE IS420UCSCH1A are essential for integrated plant operations and remote monitoring. Implementing the correct communication hub, as detailed in the GE IS420UCSCH1A (https://www.example-link-ge-product.com) documentation, is key to building a well-connected and diagnosable turbine control system. The specific suffix “H1A” defines the hardware revision and exact feature set.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric)
• Product Family: Mark VI / Mark VIe Turbine Control System
• Module Type: Universal Controller Serial Communication Hub
• Series: IS420 Series (Mark VIe Communication & Control)
• Part Number: IS420UCSCH1A
• Primary Function: Manages multiple serial communication channels for the turbine controller.
• Communication Interfaces:
  • Serial Ports: Multiple RS-232/RS-485 ports for connecting to external systems (e.g., vibration monitors, DCS, HMIs).
  • Ethernet Port: Likely included for network connectivity and bridging to TCP/IP networks.
• Supported Protocols: Typically handles Modbus RTU (master/slave), and may support other protocols like GE’s Mark VIe peer-to-peer communication or IEC 60870-5-103.
• Processing: Contains a dedicated processor for managing communication traffic independently of the main turbine control tasks.
• Configuration: Configured using GE’s ToolboxST software, where baud rates, parity, slave addresses, and data mapping are defined.
• Diagnostics: Provides status and diagnostic information for each communication channel (link status, error counts).
• Power Supply: Powered from the Mark VIe rack backplane.
• Mounting: Installs in a dedicated slot within the Mark VIe controller cabinet.

Advantages and Key Features

• Centralized Communication Management: The GE IS420UCSCH1A consolidates multiple serial communication tasks into a single, managed module, simplifying cabinet wiring and system architecture.
• Protocol Flexibility: Its support for standard industrial protocols like Modbus enables easy integration with a wide variety of third-party systems and devices.
• Deterministic and Reliable: Designed for the high-availability requirements of turbine control, ensuring stable data links critical for protection and monitoring.
• Enhanced Diagnostics: Built-in diagnostic capabilities allow engineers to monitor the health and traffic of communication links, aiding in troubleshooting.
• Seamless Mark VIe Integration: As a genuine GE component, it is fully compatible with the controller’s hardware and software, ensuring correct configuration and data exchange with the turbine’s I/O and control processors.

Application Cases in Various Fields

• Gas Turbine Power Plants: Providing a Modbus RTU link to a continuous emissions monitoring system (CEMS) for reporting NOx/CO levels to environmental regulators.
• Combined Cycle Plants: Facilitating communication between the gas turbine Mark VIe controller and the steam turbine DCS or plant-wide SCADA system.
• Pipeline Compression: Enabling data exchange between the turbine-driven compressor controller and the pipeline Supervisory Control and Data Acquisition (SCADA) master station.
• Turbine Vibration Monitoring: Interfacing with a dedicated vibration monitoring system (e.g., Bently Nevada) to bring vibration data into the turbine controller for protection and display.
• Remote Diagnostics: Serving as a communication portal for remote OEM monitoring and diagnostics over a secure network connection.

Comparison with Competing Products

The GE IS420UCSCH1A is a proprietary communication module for the GE turbine control ecosystem. Its direct competitors are similar communication gateway cards in other OEM’s turbine control systems, such as Siemens or Woodward. Its primary advantage is its certified compatibility and optimized integration within the Mark VIe system. Compared to using generic industrial protocol converters or gateways, the IS420UCSCH1A offers a more reliable, supported, and seamlessly integrated solution that is fully manageable from the standard turbine engineering tool (ToolboxST).

Selection Suggestions and Precautions

• Selection Advice: The GE IS420UCSCH1A is selected exclusively for specific Mark VI/Mark VIe turbine control systems that require additional serial communication capability to external devices. Selection is dictated by the system’s original bill of materials (BOM) and communication requirements. It is not a universal serial card.
• Precautions:
  1. Exact Part Number Match: The suffix “H1A” is critical. Different suffixes may indicate different port counts, supported protocols, or firmware.
  2. Protocol and Configuration: Meticulous configuration in ToolboxST is required. Incorrect settings for baud rate, parity, or slave ID will prevent communication.
  3. Network Isolation and Security: When connected to plant or corporate networks (via its Ethernet port), appropriate firewalls and network segmentation must be implemented to protect the critical turbine control system from cyber threats.
  4. Cable Specifications: Use correctly specified and shielded serial cables. Long cable runs may require repeaters or fiber optic converters to maintain signal integrity.
  5. Authorized Source: Due to its role in critical control and data communication, source this module from GE or an authorized GE turbine parts distributor to ensure authenticity and firmware compatibility.
