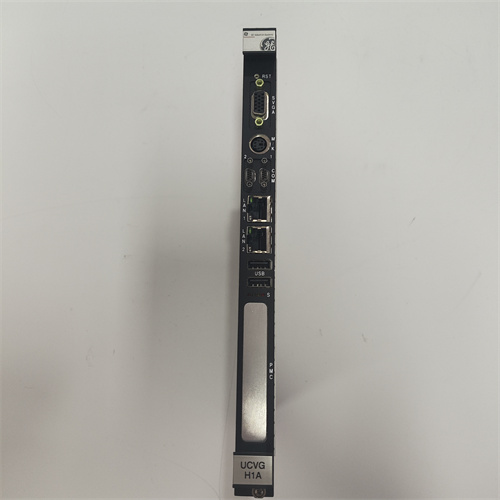

GE IS415UCVGH1A V7666-111000

Description

Product Description

The GE IS415UCVGH1A (with alternate part number V7666-111000) is a highly specialized Turbine Control I/O or Communication Processor Module within GE’s Mark VIe distributed control system for gas and steam turbines. This module is a core component of the Mark VIe’s Integrated Control and Protection architecture, functioning as a high-performance node that manages critical I/O signals and executes control logic for a specific section or function of the turbine. The primary function of the GE IS415UCVGH1A is to serve as a VersaMax I/O Network Interface or a dedicated control processor, bridging communication between the central turbine controller and distributed I/O blocks, or directly handling critical functions like fuel valve control, sequencing, or protection logic. Its role is vital for the deterministic, real-time performance required to safely and efficiently operate multi-megawatt turbine-generator sets.

Technical Parameters and Specifications

• System Compatibility: GE Mark VIe Turbine Control System.
• Module Type: VersaMax I/O Network Controller / Specialized Control Processor.
• Primary Function: Acts as a PROFINET Controller (or similar high-speed network master) for a segment of VersaMax distributed I/O, or as a specialized controller for critical subsystems (e.g., flame detection, fuel control).
• Communication Interfaces:
  • Ethernet Port(s): For connection to the Mark VIe control network (LAN) for peer-to-peer and HMI communication.
  • I/O Network Port: Likely a high-speed deterministic network (e.g., a proprietary GE network or PROFINET) to communicate with remote I/O racks (VersaMax) and other distributed modules.
• Processing Power: Contains a powerful microprocessor and memory for executing application-specific control logic and managing high-speed I/O data exchange.
• I/O Management: Capable of scanning and controlling a large number of I/O points distributed across its connected network.
• Redundancy Support: Often configured in a redundant pair for critical control functions. Modules operate in a primary/standby configuration with synchronized memory for bumpless switchover.
• Configuration: Programmed and configured using GE’s ToolboxST software. The application logic is developed using ladder logic, function block diagrams, or structured text.
• Diagnostics: Comprehensive self-diagnostics and network health monitoring. Status is reported via LEDs and the control system software.

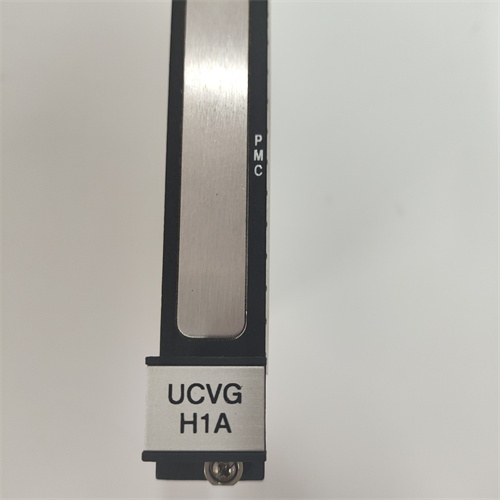

• Hardware Variant: The suffix “H1A” and the alternate part number “V7666-111000” specify the exact hardware revision and firmware version, which are critical for compatibility.

Advantages and Key Features

• High-Performance, Deterministic Control: The GE IS415UCVGH1A is engineered for the fast scan times and reliable execution needed for turbine control and protection, ensuring loop stability and rapid response to faults.
• Distributed Architecture for Enhanced Reliability: By distributing control intelligence across multiple processors like the IS415UCVGH1A, the Mark VIe system avoids a single point of failure. A fault in one module can be isolated, potentially allowing the turbine to continue operating in a degraded mode or shut down safely.
• Seamless Integration with Mark VIe Ecosystem: As a native GE component, it is fully compatible with the Mark VIe hardware, software, and engineering workflows. Its configuration is managed within the unified ToolboxST environment.
• Advanced Diagnostic and Asset Management: Provides detailed diagnostic data that can be integrated into GE’s Asset Performance Management (APM) solutions, enabling predictive maintenance for both the control hardware and the turbine itself.
• Robust Industrial Design: Built to withstand the harsh environment of a turbine enclosure, including resistance to temperature extremes, vibration, and electrical noise.

Application Cases in Various Fields

This module is exclusively used in heavy-duty industrial power generation and mechanical drive applications:

• Gas Turbine Power Plant (Frame 7/9FA): An IS415UCVGH1A module may act as the dedicated controller for the Fuel Gas Skid, managing control valves, pressure transmitters, and safety shutoff valves with millisecond precision.
• Combined Cycle Power Plant (HRSG/Steam Turbine Control): Could be used as a controller for the Heat Recovery Steam Generator (HRSG) drum level control or the steam turbine governor, coordinating multiple pumps and valves.
• Pipeline Compression Station: In a turbine-driven compressor, this module might manage the anti-surge control system, requiring ultra-fast response to protect the compressor from damage.
• Turbine Auxiliary Systems: Used to control complex sequencing for systems like the Inlet Guide Vane (IGV) actuation or the Lube Oil System.

Comparison with Competing Products

Competing products come from other major turbine OEMs and DCS manufacturers:

• Vs. Siemens (SGT Turbine Controls with T3000/SIMATIC): Siemens uses its SIMATIC controller platforms (e.g., S7-1500 series) within the T3000 framework. The IS415UCVGH1A is GE’s functionally equivalent, proprietary module. They are not interchangeable in any way.
• Vs. Woodward (NetCon or Micronet): Woodward offers specialized turbine controllers. The IS415UCVGH1A is part of GE’s fully integrated Mark VIe solution, whereas Woodward controllers are often applied in multi-OEM or retrofit scenarios. The GE module offers deeper integration with GE-specific turbine algorithms and diagnostics.
• Vs. Generic PLCs: While functionally a high-end PLC, the IS415UCVGH1A is specifically hardened, tested, and programmed with libraries for turbine control (speed, temperature, pressure control loops), which generic PLCs lack. Its software and hardware are validated as a system for safety-related functions.

Selection Suggestions and Precautions

EXTREME CAUTION: This module is part of a safety-critical control system. Work must be performed by GE-authorized turbine control engineers.

1. Exact Replacement Verification: The part numbers IS415UCVGH1A and V7666-111000 are specific. Replacement must match exactly. Use the turbine’s serial number and the module’s own label to order. Even minor revision differences (e.g., H1A vs H1B) can cause compatibility issues.
2. Complete System Backup and Documentation: Before any work, ensure a full, verified backup of the Mark VIe system application and configuration exists in ToolboxST. Document all network settings and module parameters. Physically label all cables connected to the module.
3. De-energize and Isolate: The turbine must be offline, and the control cabinet must be fully de-energized following strict electrical safety procedures (LOTO). The Mark VIe system may have multiple power supplies.
4. Static-Sensitive Handling: Treat the new IS415UCVGH1A module as ESD-sensitive. Use an anti-static wrist strap and handle by the edges.
5. Post-Replacement Commissioning is Mandatory: After installation:
   • Restore the module’s application configuration and firmware from the backup.
   • Perform comprehensive communication tests to verify it properly talks to the network and its assigned I/O.
   • Execute loop checks and functional tests for all I/O points managed by this module.
   • This process requires specialized knowledge and should be overseen by qualified personnel, often involving simulated turbine operation.
6. Procurement from Authorized Sources Only: Always source the GE IS415UCVGH1A from GE Grid Automation Solutions (formerly GE Power Conversion) or their authorized turbine services distributors. Counterfeit or improperly refurbished boards are a severe risk to turbine safety and reliability. Verify the part’s authenticity and obtain proper documentation.
