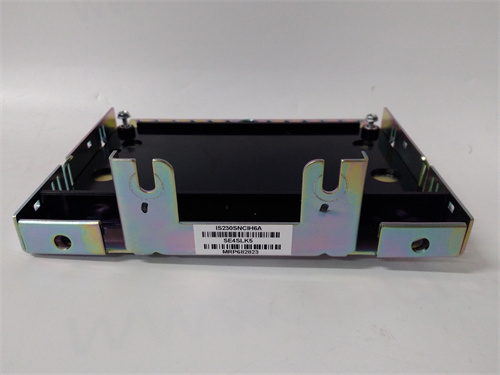

GE IS230SNCIH6A

Description

GE IS230SNCIH6A: General-Purpose Single-Channel I/O Pack for Mark VIe Control System

Product Description

The GE IS230SNCIH6A is a versatile, single-channel I/O pack (also known as a terminal board) designed for the Mark VIe series, part of GE’s (now GE Vernova’s) Speedtronic family of gas and steam turbine control systems. This module functions as a configurable signal interface, bridging the turbine controller’s IONet (I/O Network) to a wide variety of field sensors and devices. Unlike a fixed-function module, the GE IS230SNCIH6A can be software-configured to serve as an analog input, analog output, digital input, or digital output, providing exceptional flexibility in system design and sparing. It is engineered for the demanding environments of power generation, delivering the reliability and precision required for critical turbine monitoring and control. The ability to repurpose the GE IS230SNCIH6A via configuration makes it a highly valuable component for system integration and maintenance. For engineers supporting Mark VIe systems, understanding the configuration of each GE IS230SNCIH6A module is key to troubleshooting.

Product Parameters

• Product Type: General-Purpose, Configurable Single-Channel I/O Pack
• Manufacturer Series: GE (GE Vernova) Speedtronic Mark VIe
• Module Designation: IS230SNCIH6A
• Form Factor: A terminal board (I/O pack) that connects to a carrier board (e.g., IS200/IS210 series) in a Mark VIe I/O rack.
• Number of Channels: 1 independent, software-configurable channel.
• Configurable Functions:
  • Analog Input (AI): Accepts voltage (e.g., ±10V) or current (e.g., 4-20mA) signals.
  • Analog Output (AO): Sources voltage or current signals.
  • Digital Input (DI): Accepts contact or voltage level inputs.
  • Digital Output (DO): Provides a contact or voltage output.
• Isolation: Provides high levels of channel-to-system and channel-to-channel isolation for noise immunity and safety.
• Communication Interface: Connects to the Mark VIe controller via the IONet (Ethernet-based I/O network) through its associated carrier board.
• Diagnostics: Includes onboard diagnostics for fault detection (open circuit, short circuit, overrange) reported back to the controller.
• Connections: Screw terminal block for field wiring.

Advantages and Features

• Unparalleled Configuration Flexibility: A single part number, the GE IS230SNCIH6A, can replace dozens of dedicated I/O modules, drastically simplifying spare parts inventory and allowing for last-minute design changes without hardware swaps.
• High Density & Reduced Footprint: By using general-purpose I/O packs on multi-channel carrier boards, the Mark VIe system achieves very high I/O density in a compact rack space.
• Excellent Signal Integrity: Designed with high accuracy and isolation to ensure reliable signal measurement and generation in the electrically noisy environment of a power plant.
• Integrated Diagnostics: Continuous self-diagnostics and field wiring checks enable predictive maintenance and rapid fault identification, reducing downtime.
• Hot Swappable: In a properly configured system, I/O packs like the GE IS230SNCIH6A can be replaced without shutting down the turbine, supporting high availability requirements.
• Seamless System Integration: The configuration of the GE IS230SNCIH6A is managed entirely within the Mark VIe ToolboxST engineering software, ensuring the hardware and software are perfectly matched.

Application Cases in Application Fields

• Gas Turbine Control: Configurable as an AI to read lube oil temperature, a DI to read a flame detector status, or a DO to command a servo valve.
• Steam Turbine Control: Used as an AI for steam chest pressure measurement, or a DO to control an actuator for inlet guide vanes.
• Power Plant Auxiliary Systems: Monitoring and controlling balance-of-plant equipment such as pumps, fans, and heat exchangers connected to the turbine controller.
• Hydroelectric Plant Control: Interfacing with governor systems, gate position sensors, and bearing temperature monitors.
• Compressor Station Control (Mechanical Drive): Used in stations where turbines drive compressors, interfacing with various process sensors.

Comparison with Competing Products

The GE IS230SNCIH6A represents a fundamentally different, more flexible approach compared to traditional PLC or DCS I/O. Competing turbine control systems from Siemens (Siemens Energy) or Woodward often use more dedicated, function-specific modules. The primary advantage of the Mark VIe’s general-purpose I/O, exemplified by the IS230SNCIH6A, is inventory reduction and design agility. Compared to a standard PLC analog input card with 8 fixed channels, one GE IS230SNCIH6A handles only one channel but can be any type, allowing precise tailoring of I/O without wasting unused channels. Its main competitor is other Mark VIe general-purpose I/O packs with different channel counts or ratings, not external vendor products.

Selection Suggestions and Precautions

1. System Context is Everything: The GE IS230SNCIH6A is only for GE Mark VIe systems. It must be used with the correct carrier board (e.g., IS210, IS220 series) in a Mark VIe I/O rack. It will not function in a DX, RX3i, or any other PLC rack.
2. Configuration is Mandatory: The module has no inherent function. Its behavior is 100% defined by its configuration file, which is downloaded from the Mark VIe controller. A spare GE IS230SNCIH6A must be configured before use.
3. Firmware Compatibility: The firmware version of the I/O pack must be compatible with the version of the ToolboxST software and the controller’s firmware. Mismatches can cause communication failures.
4. Wiring Schematics: Always consult the plant-specific wiring diagrams and I/O database. The same IS230SNCIH6A module in one cabinet could be a 4-20mA input, and in another, a 120VAC output. Wiring it incorrectly based on assumption can cause damage.
5. Replacement Procedure: Follow strict procedures for hot-swapping if performed online. This includes placing the controller in a safe state for that channel, verifying the replacement module’s configuration, and using proper ESD precautions.
