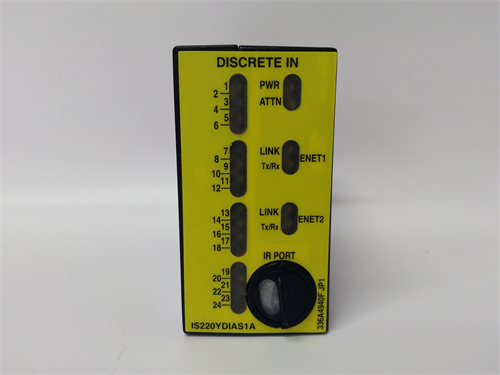

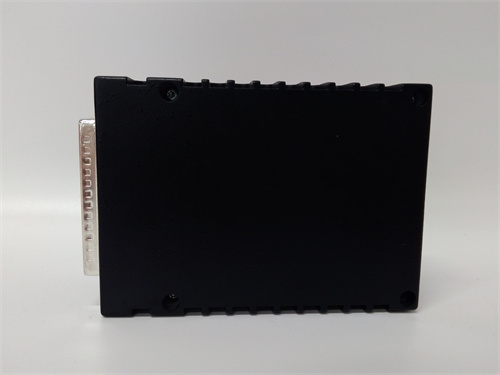

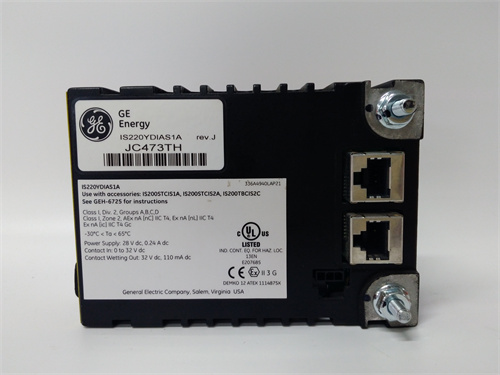

Product Description: GE IS220YDIAS1A

Product Description

Technical Parameters

1. Brand: GE
2. Model: IS220YDIAS1A
3. Device Type: Digital Input Module for Industrial PLC
4. Operating Voltage: 24V DC (stable power supply)
5. Operating Temperature Range: -40°C to +70°C
6. Maximum Current Consumption: 6A
7. Communication Interfaces: Ethernet/IP, Modbus TCP, Profinet
8. Protection Class (IP Rating): IP23
9. Housing Material: High-strength aluminum alloy (enhanced heat dissipation)
10. Dimensions (L×W×H): 122mm × 80mm × 51mm
11. Warranty Period: 3 years
12. Power Consumption: ≤4.0W
13. Number of Input Channels: 32 digital input channels
14. Input Signal Type: Dry contact, NPN/PNP (configurable)
15. Response Time: ≤1ms

Advantages and Features

1. Rapid Signal Response: Equipped with advanced high-speed processing chips, GE IS220YDIAS1A achieves a response time of ≤1ms, ensuring real-time capture and transmission of digital signals—critical for time-sensitive industrial processes such as automated assembly lines and emergency control systems.
2. Broad Environmental Adaptability: The rugged design of GE IS220YDIAS1A enables it to operate stably in extreme temperatures ranging from -40°C to +70°C. It also resists electromagnetic interference and voltage fluctuations, making it suitable for use in harsh climates and heavy-industry settings.
3. Flexible Configuration: The module supports configurable NPN/PNP input signals and dry contact connections, allowing GE IS220YDIAS1A to adapt to diverse field device requirements without the need for additional adapters, enhancing its versatility across different application scenarios.
4. Easy Installation and Maintenance: Featuring standard DIN rail mounting and a user-friendly structural design, GE IS220YDIAS1A can be quickly installed and replaced. The built-in status indicator lights facilitate intuitive monitoring of channel performance, simplifying troubleshooting and reducing downtime.
5. Robust Protection Mechanisms: GE IS220YDIAS1A is integrated with multi-layer protection functions, including overload protection, short-circuit protection, and reverse polarity protection. These features prevent module damage and extend the lifespan of connected field devices.

Application Cases in Various Industries

1. Power Generation: In thermal, hydroelectric, and nuclear power plants, GE IS220YDIAS1A is used to collect digital signals from generators, transformers, and switchgear. It enables real-time monitoring of equipment status, ensuring stable power output and rapid response to abnormal conditions.
2. Aerospace and Defense: In aircraft manufacturing and defense equipment production, the module captures signals from precision sensors and control components, supporting the high-precision assembly and testing of aerospace parts that demand strict quality control.
3. Automotive Manufacturing: On automated automotive assembly lines, GE IS220YDIAS1A controls the operation of robotic arms, conveyor belts, and quality inspection equipment. It ensures the synchronization of production processes and reduces product defects by accurately transmitting control signals.
4. Oil and Gas Industry: In offshore drilling platforms and oil refineries, the module monitors the status of pumps, valves, and pipeline pressure sensors. GE IS220YDIAS1A withstands corrosive marine environments and extreme temperatures, ensuring the safety and continuity of oil and gas extraction and processing.
5. Water Treatment and Utilities: In municipal water supply and sewage treatment plants, GE IS220YDIAS1A collects data from flow meters, level sensors, and pump controllers. It helps maintain stable operation of water treatment processes and ensures compliance with environmental discharge standards.

Comparison with Competitors

Selection Suggestions and Precautions

Selection Suggestions

1. Assess the number of input channels required: With 32 digital input channels, GE IS220YDIAS1A is ideal for medium-to-large industrial systems that need to monitor multiple field devices simultaneously.
2. Verify environmental conditions: If the equipment operates in extreme temperatures (below -30°C or above +60°C), GE IS220YDIAS1A’s wide temperature range (-40°C to +70°C) makes it the most suitable option.
3. Check communication protocol compatibility: The module supports Ethernet/IP, Modbus TCP, and Profinet—ensure it aligns with your existing PLC system’s communication standards for seamless integration.
4. Consider signal type requirements: If your field devices use configurable NPN/PNP signals or dry contacts, GE IS220YDIAS1A’s flexible configuration capability will eliminate the need for additional conversion modules.

Precautions

1. Installation, wiring, and configuration of GE IS220YDIAS1A must be performed by qualified technicians with experience in GE industrial automation equipment to avoid improper operation that may cause damage.
2. Before connecting the module to the power supply, confirm that the input voltage matches the specified 24V DC to prevent burnout of internal electronic components and voiding of the warranty.
3. Do not expose GE IS220YDIAS1A to direct water jets, corrosive chemicals, or strong mechanical impacts, even though it has an IP23 protection rating.
4. Conduct regular maintenance and diagnostics (at least once every six months) in accordance with the manufacturer’s guidelines. Update the module’s firmware promptly to ensure optimal performance and access to the latest features.
5. Use only genuine GE spare parts for repairs or replacements to maintain the module’s original performance and comply with warranty terms.
