GE IS220UCSAH1A

Description

Product Overview and Description

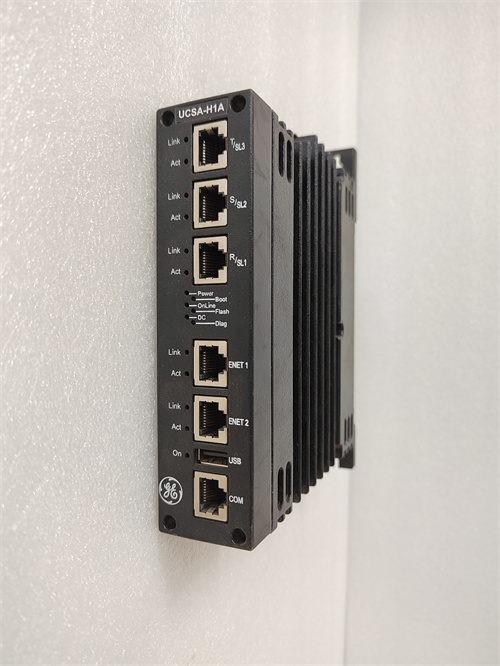

The GE IS220UCSAH1A is a high-performance controller module designed for use in GE’s Speedtronic™ Mark VIe turbine control system, the latest evolution of GE’s proven turbine control platform for gas and steam turbines. This device, part of the Mark VIe I/O and control family, serves as a critical processing unit within the control system, executing control algorithms, managing I/O communication, and providing supervisory control for turbine operation. The GE IS220UCSAH1A is engineered for the demanding requirements of turbine control, where reliability, speed, and determinism are paramount for safe and efficient power generation.

The IS220UCSAH1A module is designed for operation in the harsh environments of power plants and industrial facilities, featuring rugged construction, support for redundant architectures, and comprehensive diagnostic capabilities. It mounts in a standard Mark VIe rack and interfaces with other modules via the system backplane. The use of the GE IS220UCSAH1A ensures precise and reliable control of turbines, which is essential for power generation, mechanical drive applications, and compliance with stringent grid codes.

Technical Parameters

Based on the analysis of typical GE Mark VIe controller modules, the GE IS220UCSAH1A possesses the following key characteristics:

• Device Type: Controller Module for Mark VIe turbine control systems.
• Primary Function: Executes turbine control algorithms including speed, load, temperature, and pressure control.
• Processor: High-performance microprocessor optimized for real-time control applications.
• Memory: Significant onboard memory for application code, data storage, and event recording.
• Communication Interfaces:
  • High-speed backplane interface for communication with I/O modules.
  • Ethernet ports for connection to operator stations, plant networks, and engineering workstations.
  • Serial interfaces for configuration and diagnostics.
• Redundancy Support: Designed for redundant operation (primary/backup) for high-availability applications.
• Diagnostics: Extensive self-diagnostics with front-panel LED indicators for module status, communication activity, and fault conditions.
• Power Supply: Powered via the system backplane from the rack power supply.
• Mounting: Installs into a dedicated slot in the Mark VIe rack.
• Compatibility: Part of the Mark VIe I/O and control family, compatible with other Mark VIe modules.
• Part Number: GE IS220UCSAH1A is the complete ordering code for this controller module.

Advantages and Key Features

The GE IS220UCSAH1A offers several critical advantages for turbine control:

• High-Performance Control: The IS220UCSAH1A provides the processing power needed for complex turbine control algorithms, ensuring precise regulation of speed, load, and temperatures.
• Redundancy Capability: For critical turbine applications, the GE IS220UCSAH1A supports redundant configurations, ensuring continuous control even if one module fails, maximizing plant availability.
• Deterministic Operation: The real-time design of the IS220UCSAH1A guarantees predictable execution of control tasks, essential for turbine safety and performance.
• Seamless Integration: As a native Mark VIe component, the GE IS220UCSAH1A integrates perfectly with GE I/O modules, communication interfaces, and operator stations.
• Advanced Diagnostics: Comprehensive self-diagnostics and event logging on the IS220UCSAH1A help operators quickly identify and troubleshoot issues, reducing downtime.

Application Cases in Key Industries

The GE IS220UCSAH1A is used in critical turbine control applications worldwide:

• Power Generation (Gas Turbines): The IS220UCSAH1A controls GE gas turbines in simple cycle and combined cycle power plants, managing fuel control, inlet guide vanes, and start-up sequencing.
• Power Generation (Steam Turbines): In thermal and nuclear plants, the GE IS220UCSAH1A controls steam turbine speed, load, and extraction valves.
• Compressor Stations: The module controls gas turbine-driven compressors for natural gas pipeline applications, ensuring reliable gas transmission.
• Industrial Cogeneration: In facilities with combined heat and power, the IS220UCSAH1A manages turbine operation for both power generation and process steam supply.
• Offshore Platforms: The GE IS220UCSAH1A controls turbines driving generators and compressors on oil and gas production platforms.

Comparison with Competitors

In the turbine control system market, GE’s primary competitors are Siemens (T3000), ABB (Symphony Plus), and Woodward.

• GE IS220UCSAH1A vs. Siemens T3000 Controllers: Siemens offers comparable controllers for its turbine control systems. The IS220UCSAH1A is the native solution for GE turbines, ensuring optimal compatibility and integration with GE’s control algorithms.
• GE IS220UCSAH1A vs. ABB Symphony Plus: ABB’s Symphony Plus can control various turbine types. The GE IS220UCSAH1A is specifically designed for GE turbines, offering features optimized for GE’s machine designs.
• GE IS220UCSAH1A vs. Woodward Controllers: Woodward excels in smaller turbine controls. The IS220UCSAH1A is designed for large utility-scale turbines, offering the processing power and I/O capacity required for complex multi-shaft machines.

Selection Recommendations and Precautions

1. System Compatibility: The GE IS220UCSAH1A is designed for Mark VIe systems. Verify compatibility with your specific control system version, rack type, and software revision before ordering.
2. Application Software: The module requires specific turbine control application software. Ensure you have the correct configuration files for your specific turbine model and application.
3. Firmware Version: Check the firmware version of the IS220UCSAH1A to ensure compatibility with your system and the required features for your turbine.
4. Redundancy Configuration: If used in a redundant application, ensure both the primary and backup GE IS220UCSAH1A modules have matching hardware revisions and firmware versions.
5. Qualified Personnel: Installation, configuration, and commissioning of the GE IS220UCSAH1A must only be performed by personnel specifically trained on GE Mark VIe turbine control systems due to the critical nature of the application.
