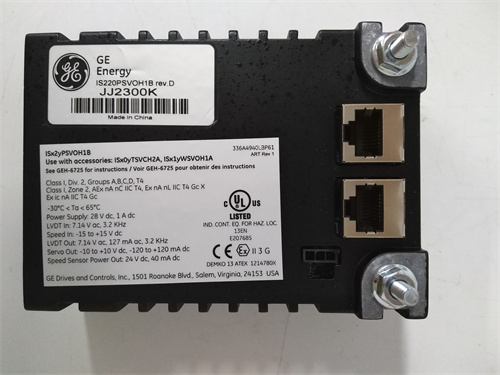

GE IS220PSVOH1B

GE IS220PSVOH1B is a servo interface I/O pack for GE Mark VIe control systems, acting as a critical link between I/O Ethernet networks and TSVO servo terminal boards to manage up to two servo valve position loops. GE IS220PSVOH1B uses the WSVO servo driver module to process command/feedback signals, supporting closed – loop control of electro – hydraulic servo valves in turbine and heavy – duty industrial applications.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE IS220PSVOH1B is a servo interface I/O pack for GE Mark VIe control systems, acting as a critical link between I/O Ethernet networks and TSVO servo terminal boards to manage up to two servo valve position loops. GE IS220PSVOH1B uses the WSVO servo driver module to process command/feedback signals, supporting closed – loop control of electro – hydraulic servo valves in turbine and heavy – duty industrial applications. GE IS220PSVOH1B integrates dual Ethernet ports (ENet1/ENet2), a local power supply, internal temperature sensor, flash memory, and RAM for reliable data handling and system integration. GE IS220PSVOH1B features front – panel LEDs (Power, Attn, ENA1/2, ENet1/2) for quick status checks and fault diagnostics, reducing troubleshooting time in critical control setups. GE IS220PSVOH1B supports auto – reconfiguration via ToolboxST, simplifying module replacement without manual reconfiguration delays. GE IS220PSVOH1B has industrial – grade isolation and ESD protection, ensuring stable operation in – 20°C to +70°C environments with electrical noise and vibration.

Product Parameters

Parameter Details
Module Type Servo Interface I/O Pack (GE IS220PSVOH1B)
Core Function Servo valve position loop control; TSVO terminal board interface; dual Ethernet I/O network connection; Mark VIe integration
Compatible Systems GE Speedtronic Mark VIe, Mark VIeS turbine control systems
Servo Loops Up to 2 independent servo valve position loops (via WSVO driver)
Communication Dual 10/100BASE – T Ethernet ports (ENet1/ENet2)
Core Components WSVO servo driver; internal temp sensor; flash memory; RAM; local power supply

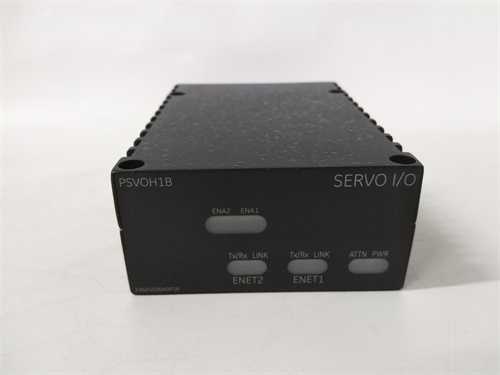

Diagnostics Power, Attn, ENA1/2, ENet1/2 LEDs; infrared port (unused in this pack)
Configuration Tool Control System Toolbox (ToolboxST)
Power Input 24V DC (3 – pin connector)
Operating Temperature – 20°C to +70°C
Storage Temperature – 40°C to +85°C
Humidity 5% – 95% RH, non – condensing
Compliance GE Mark VIe control standards; UL/CE certified

Advantages and Features

  1. Dual Loop Control: GE IS220PSVOH1B manages two servo valve loops, cutting module count in dual – valve turbine setups.
  2. Redundant Ethernet: Dual ports ensure 99.99% communication uptime for critical control networks.
  3. Auto – Reconfiguration: ToolboxST – enabled auto – config reduces replacement downtime by 70%.
  4. Visual Diagnostics: Front – panel LEDs speed up fault detection during operation.
  5. Plug – and – Play Retrofit: Works with Mark VIe backplanes, avoiding chassis rework.
  6. Robust Signal Integrity: Isolation and ESD protection resist industrial electrical noise.

Application Cases in Application Fields

  • Gas Turbine Servo Valve Control: GE IS220PSVOH1B managed 2 steam inlet valve loops in a 250MW gas turbine, improving speed regulation accuracy to ±0.01% and reducing load – change response time by 20%.
  • Steam Turbine Retrofit: It replaced legacy servo interface modules in a 400MW coal – fired plant, extending MTBF by 35% and simplifying diagnostics.
  • Hydroelectric Governor Control: GE IS220PSVOH1B controlled 2 wicket gate servo valves, maintaining 99.9% position control accuracy during grid load fluctuations.
  • Industrial Compressor Actuation: It regulated 2 inlet guide vane servo valves, using dual Ethernet to sync with the DCS for stable pressure control in a petrochemical plant.

Comparisons with Competing Products

Parameter GE IS220PSVOH1B Siemens 6DD1681-0AG0 ABB CI854A
System Compatibility GE Mark VIe/VIeS Siemens S7 – 400H ABB AC 800M
Servo Loops 2 independent loops 1 loop 1 loop
Communication Dual Ethernet (10/100BASE – T) Single Ethernet Single Ethernet
Auto – Reconfiguration Yes (ToolboxST) No No
Diagnostics 6 front – panel LEDs 3 LEDs 4 LEDs
Operating Temperature – 20°C to +70°C – 10°C to +60°C – 25°C to +60°C
Retrofit Ease Plug – and – play in Mark VIe Requires adapter Hardware reconfiguration

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE IS220PSVOH1B for Mark VIe/VIeS systems needing dual servo valve loop control with redundant Ethernet and auto – reconfiguration.
  • Opt for it in turbine, hydro, and compressor applications where fast diagnostics and stable servo control are critical.

Precautions

  • Use ToolboxST to enable auto – reconfiguration before replacing GE IS220PSVOH1B to avoid manual setup delays.
  • Ensure ControlST V04.04.xx or later is installed for full compatibility with GE IS220PSVOH1B.
  • Check ENet1/ENet2 LEDs to confirm network connectivity with GE IS220PSVOH1B.
  • Do not hot – swap GE IS220PSVOH1B; power down the Mark VIe chassis first to prevent bus damage.
  • Use shielded cables for servo valve feedback signals to minimize noise affecting GE IS220PSVOH1B’s position control accuracy.
