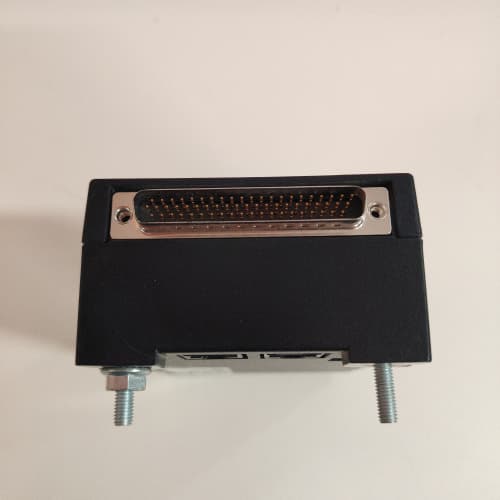

GE IS220PSCAH1B

Description

1. Product Overview

2. Product Parameters

2.1 Core Power Supply Specifications

• Input Voltage: 100-240V AC (50/60Hz), single-phase (auto-ranging)
• Output Voltage: 24V DC ±1% (regulated, isolated)
• Output Current: 10A continuous (240W total power)
• Redundancy Support: N+1 (parallel operation with identical modules for fault tolerance)
• Ripple & Noise: <50mV p-p (filtered for sensitive electronics)
• Efficiency: >92% (typical at full load)

2.2 Electrical & Protection Features

• Protection Mechanisms: Overvoltage (OVP), overcurrent (OCP), short-circuit (SCP), over-temperature (OTP), input surge protection
• Isolation: 3000V AC input to output, 1500V AC output to ground
• Power Factor Correction (PFC): Active PFC (PF >0.95 at full load)
• Monitoring Outputs: DC OK signal (dry contact), remote voltage monitoring (0-5V analog output)
• Cooling: Forced air cooling (variable-speed fan, temperature-controlled)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -20°C to +70°C (industrial grade)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (rack-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Mark VIe/RX3i control rack-mount (2U height)
• Weight: 3.2kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)
• Safety Standards: IEC 61010-1 (electrical safety for control equipment), IEC 62368-1 (power supply safety)

3. Advantages & Features

1. Redundant Power Capability: GE IS220PSCAH1B supports N+1 parallel operation, enabling fault-tolerant power distribution for critical systems—if one module fails, others automatically take over without downtime.
2. High Efficiency & Energy Savings: >92% efficiency and active PFC reduce energy consumption and heat generation, lowering operational costs and extending the lifespan of GE IS220PSCAH1B and adjacent components.
3. Comprehensive Protection: OVP, OCP, SCP, and OTP safeguards protect GE IS220PSCAH1B and connected automation equipment from electrical faults, preventing costly damage and unplanned outages.
4. Hot-Swappable Design: The module can be installed or replaced without powering down the control rack, allowing GE IS220PSCAH1B to support 24/7 industrial operations and minimize maintenance interruptions.
5. Remote Monitoring & Diagnostics: DC OK contact and analog voltage monitoring enable real-time tracking of GE IS220PSCAH1B performance, allowing operators to detect issues proactively and schedule maintenance before failures occur.

4. Application Fields & Cases

4.1 Application Fields

• Power Generation: Turbine control rack power supply, boiler management system power, generator excitation control power
• Manufacturing: PLC rack power for production lines, robotic cell control system power, packaging machine automation power
• Water/Wastewater: Treatment plant control rack power, pump station automation power, remote monitoring unit power
• Oil & Gas: Pipeline control system power, wellhead monitoring equipment power, refinery process control rack power

4.2 Typical Cases

1. Turbine Control Rack Power: A European combined-cycle power plant deployed GE IS220PSCAH1B modules in N+1 redundancy for Mark VIe turbine control racks. The modules supplied stable 24V DC power to vibration monitoring and I/O modules, ensuring 99.99% uptime and avoiding a potential $2 million outage during a single module failure.
2. Manufacturing PLC Rack Power: A North American automotive plant used GE IS220PSCAH1B to power PACSystems RX3i PLC racks controlling robotic welding stations. Hot-swappable design allowed module replacement during production hours, eliminating the need for costly line shutdowns and increasing overall equipment effectiveness (OEE) by 5%.
3. Water Treatment Plant Power Supply: A municipal water treatment facility integrated GE IS220PSCAH1B into its automation system to power safety-critical pump and valve control modules. Overvoltage and surge protection prevented damage during grid voltage spikes, maintaining continuous water supply to 150,000 residents.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Redundant Power Requirements: Choose GE IS220PSCAH1B for critical automation systems (turbine control, safety systems) needing N+1 redundancy to eliminate single points of failure.
2. High-Load Control Racks: Opt for GE IS220PSCAH1B if your rack requires up to 10A of 24V DC power (e.g., large I/O module banks, redundant controllers) to meet high-power demands.
3. 24/7 Industrial Operations: Select GE IS220PSCAH1B for manufacturing, power, or water treatment facilities requiring hot-swappable power supplies to minimize maintenance downtime.

6.2 Precautions

1. Installation Guidelines:
   • Mount GE IS220PSCAH1B in a well-ventilated control rack (ambient temperature <70°C) to ensure proper cooling and prevent overheating.
   • For redundant configurations, connect modules to separate input power sources (e.g., mains + UPS) to maximize fault tolerance.
2. Configuration Notes:
   • Enable DC OK monitoring in the controller software to receive alerts for power supply faults—configure automatic shutdown sequences for critical loads if needed.
   • Verify output voltage (24V ±1%) after installation to ensure compatibility with connected I/O modules and controllers.
3. Troubleshooting:
   • For output voltage fluctuations: Check input power stability and load balance across redundant modules—replace a faulty module if voltage deviates beyond ±1%.
   • For over-temperature alarms: Improve rack ventilation or reduce load on the module—GE IS220PSCAH1B will shut down to protect itself if temperatures exceed safe limits.
4. Maintenance:
   • Replace cooling fans every 3 years (per manufacturer recommendations) to maintain thermal performance—use only GE-authorized replacement parts.
   • Perform quarterly output voltage and current checks to ensure the module is operating within specifications.
