GE IS220PRTDH1A

Description

Product Description

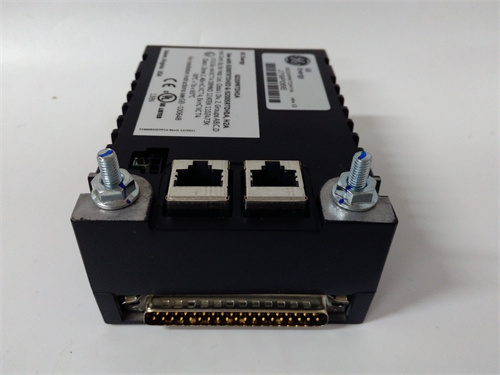

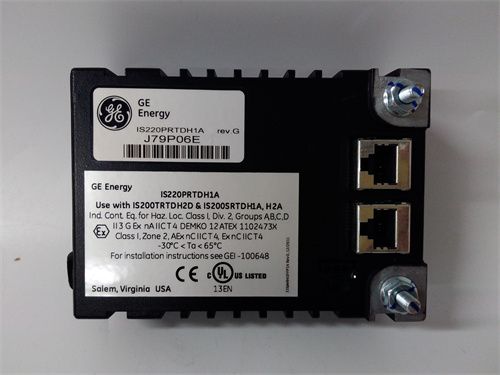

The GE IS220PRTDH1A is a specialized analog input module from the GE Mark VIe Speedtronic turbine control system. This module is a PRTD (Platinum Resistance Temperature Detector) Input board, designed specifically for high-accuracy temperature measurement using RTD sensors. Its primary function is to provide the precise excitation current, signal conditioning, and analog-to-digital conversion required to measure temperature from multiple RTD probes, such as Pt100 or Pt1000 sensors, which are commonly used for critical measurements on turbines, generators, and associated auxiliary systems. The GE IS220PRTDH1A ensures accurate, stable, and noise-immune temperature readings for parameters like bearing temperature, winding temperature, and gas path temperatures. These measurements are vital for control algorithms, performance calculations, and protective functions. The robust design of the module is tailored for the high-vibration and electrically noisy environment of a turbine enclosure. Accurate temperature data from the GE IS220PRTDH1A is fundamental to efficient turbine operation, condition monitoring, and preventing equipment damage due to overheating.

Product Parameters

• System Family: GE Mark VIe Speedtronic Turbine Control System.
• Module Type: RTD (Resistance Temperature Detector) Analog Input Module.
• Sensor Type: Designed for 2, 3, or 4-wire Platinum RTDs (typically Pt100, 100 Ω at 0°C).
• Input Channels: Typically provides multiple isolated input channels (e.g., 8 or 16 channels).
• Excitation: Provides a stable, low-noise current source to excite each RTD.
• Measurement Technique: Utilizes high-resolution analog-to-digital conversion and may implement lead wire compensation (for 3/4-wire RTDs) to eliminate errors from cable resistance.
• Accuracy: High accuracy and low drift over temperature, suitable for critical process measurement.
• Isolation: Channel-to-channel and channel-to-system isolation for safety and noise rejection.
• Communication: Interfaces with the Mark VIe controller via the high-speed IONET (I/O Network).

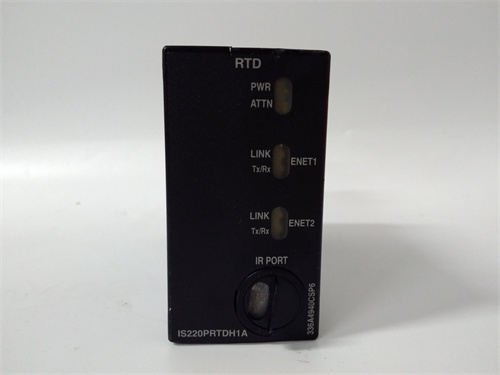

• Diagnostics: Includes diagnostics for open sensor, short circuit, and out-of-range conditions. Status is available via LEDs and the ToolboxST software.
• Mounting: Plugs into a designated slot within a Mark VIe I/O pack.

Advantages and Features

• High Precision Temperature Measurement: Delivers the accuracy and stability required for critical turbine protection and efficiency calculations, where small temperature errors can have significant impacts.
• Built-in Lead Resistance Compensation: When used with 3 or 4-wire RTD connections, the GE IS220PRTDH1A can compensate for the resistance of the lead wires, ensuring the measurement reflects only the sensor’s resistance.
• Robust in Noisy Environments: The combination of isolation, filtering, and differential measurement techniques provides excellent rejection of electromagnetic interference (EMI) common in power generation settings.
• Integrated Diagnostics: Detects common sensor and wiring faults, providing early warning of potential measurement failures and aiding in predictive maintenance.
• Seamless Mark VIe Integration: Fully compatible with the Mark VIe architecture and engineering toolset (ToolboxST), allowing for easy configuration, scaling, calibration, and online monitoring.

Application Cases in Application Fields

• Gas Turbine Bearing Temperature Monitoring: Measures temperatures of main and thrust bearings for condition monitoring and alarm/protection functions.
• Generator Stator and Rotor Winding Temperature: Provides critical temperature data for generator protection and load capability calculations.
• Steam Turbine Metal Temperatures: Monitors casing and rotor metal temperatures during startup, operation, and shutdown to manage thermal stresses.
• Lube Oil and Hydraulic Fluid Temperature: Measures temperatures in auxiliary systems essential for safe turbine operation.

Comparisons with Competing Products

• Vs. Woodward NetCon RTD Input Cards: Competing turbine control systems have their own RTD interface modules. The GE IS220PRTDH1A is optimized for the Mark VIe I/O pack and network. Performance is comparable; the choice is driven by the overall control system platform.
• Vs. Universal Analog Input Modules: A universal analog input card in a standard PLC can be configured for RTDs but may lack the dedicated excitation, lead compensation, high channel density, and optimized noise immunity specifically engineered for turbine applications found in the GE IS220PRTDH1A.
• Vs. Standalone RTD Transmitters: A field-mounted transmitter converts the RTD signal to 4-20mA. The GE IS220PRTDH1A performs this function internally within the control system, reducing field hardware, potential failure points, and wiring, while offering richer diagnostics.

Selection Suggestions and Precautions

1. RTD Type and Wiring Configuration: Verify the RTD type (Pt100) and specify the correct wiring (2, 3, or 4-wire) during configuration in ToolboxST. Using 2-wire configuration for a long 2-wire run will introduce significant measurement error due to lead resistance.
2. Sensor and Wire Quality: Use high-quality, industrial-grade RTDs and proper instrumentation cable (e.g., twisted, shielded pair for 3/4-wire). The performance of the GE IS220PRTDH1A depends on a stable sensor signal.
3. Configuration and Scaling: Correctly configure the temperature range (e.g., 0-200°C) and engineering units for each channel in the ToolboxST software. Incorrect scaling will give false readings.
4. Grounding and Shielding: Properly ground the cable shield at the I/O pack end only to prevent ground loops. Follow Mark VIe system grounding guidelines meticulously.
5. Calibration: While the module is factory calibrated, critical loops may benefit from periodic loop calibration using a precision resistance standard to verify the entire measurement chain’s accuracy.
