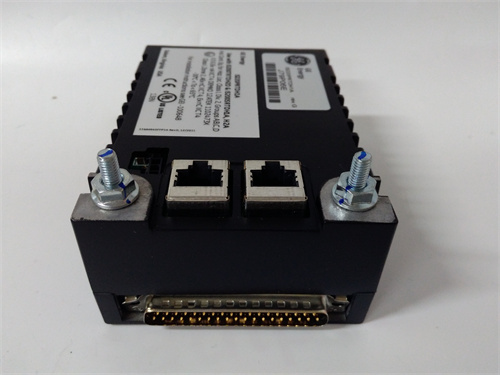

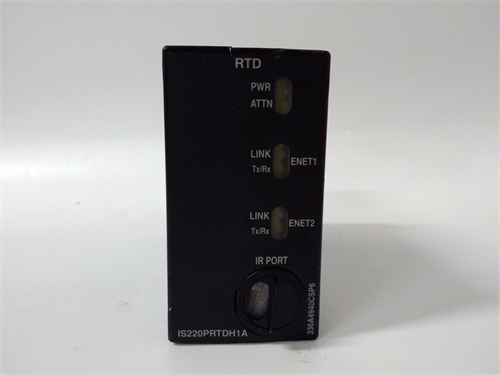

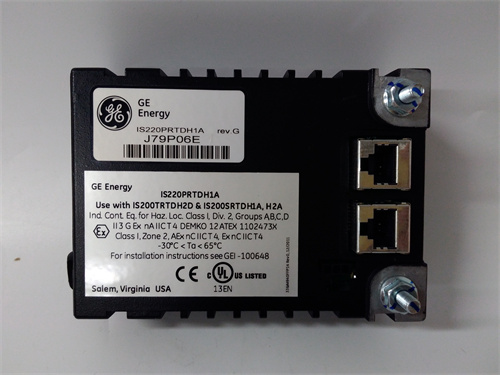

GE IS220PRTDH1A

Description

Product Description
The GE IS220PRTDH1A is a specialized Resistance Temperature Detector (RTD) input terminal board, forming a critical component within the Mark VIe series control system by GE (General Electric) for gas and steam turbine management, as well as other critical industrial processes. This terminal board is part of the innovative Mark VIe distributed I/O architecture, where I/O modules are located close to the field devices and communicate via a high-speed network back to the central controller. The primary function of the GE IS220PRTDH1A is to provide the interface, signal conditioning, and analog-to-digital conversion for multiple RTD temperature sensors. It enables the precise and reliable monitoring of temperatures at key points on machinery, such as bearing metal temperatures, winding temperatures, and process fluid temperatures. For engineers configuring a Mark VIe system, selecting the correct I/O pack, such as the GE IS220PRTDH1A, is fundamental to building a robust and accurate control and protection scheme. More detailed technical information can be found at GE IS220PRTDH1A. The design of the GE IS220PRTDH1A emphasizes high-density, high-accuracy measurement in a modular form factor, which simplifies system wiring and maintenance.

Product Parameters

• Manufacturer: General Electric (GE).
• Series: Mark VIe Speedtronic Turbine Control System I/O Pack.
• Function: RTD (Resistance Temperature Detector) Input Module.
• Input Channels: Typically configurable for multiple channels (e.g., 4, 8, or 16), accepting 2-wire, 3-wire, or 4-wire RTD connections. The exact channel count is defined by the full model.
• Sensor Type: Compatible with standard RTDs, most commonly Pt100 (100 ohm at 0°C) or Pt1000, conforming to IEC 60751.
• Measurement Accuracy: High accuracy, typically within ±0.1°C to ±0.5°C, depending on configuration and sensor wiring.
• Communication: Connects to the Mark VIe controller via the high-speed Ethernet-based PDH (Plant Data Highway) or UDH (Unit Data Highway) network.
• Power Supply: Powered from the Mark VIe rack or a distributed power source, typically 24-30 VDC.
• Diagnostics: Includes comprehensive channel-level diagnostics for open circuit, short circuit, and out-of-range conditions.

Advantages and Key Features

• High Accuracy and Stability: Designed for precise temperature measurement, which is critical for efficient turbine operation and equipment protection.
• Distributed Architecture: As a Mark VIe I/O pack, the GE IS220PRTDH1A can be installed in remote junction boxes close to sensors, significantly reducing long-run analog wiring and associated noise issues.
• Advanced Diagnostics: Provides real-time health monitoring of each RTD loop, enabling predictive maintenance of the measurement system itself and reducing troubleshooting time.
• Hot Swappable: Designed to allow replacement without shutting down the entire control system, enhancing availability.
• Native System Integration: Offers seamless integration with the Mark VIe controller and ToolboxST software, allowing for straightforward configuration, calibration, and commissioning.

Application Cases in Relevant Fields

• Gas Turbine Power Plants: Monitoring bearing temperatures, compressor inlet/discharge temperature, and turbine blade path temperatures for control and protection.
• Steam Turbine Applications: Measuring bearing metal temperatures, steam chest temperature, and generator stator winding temperatures.
• Oil & Gas Compression: Monitoring bearing and process gas temperatures on turbine-driven or motor-driven compressor trains.
• Hydroelectric Generators: Measuring generator bearing temperatures and cooling water temperatures.

Comparison with Competing Products
Competing products include RTD input modules from other major turbine control OEMs like Woodward (NetCon or MicroNet controllers) and Siemens (TX automation system). Compared to traditional PLC RTD cards (e.g., from Allen-Bradley or Siemens S7), the GE IS220PRTDH1A is highly specialized. Its key advantages are its deterministic performance within the Mark VIe ecosystem, advanced diagnostics tailored for critical machinery, and the distributed I/O architecture that reduces installation cost and improves signal integrity. While universal PLC cards offer more flexibility for general plant use, the GE IS220PRTDH1A is optimized for the high-reliability, fast-response requirements of turbine control and protection.

Selection Suggestions and Precautions

1. System Compatibility is Paramount: The GE IS220PRTDH1A is exclusively for use with the GE Mark VIe control system. Verify compatibility with your specific controller and network configuration (PDH/UDH).
2. Confirm Channel Configuration: Determine the required number of channels and the RTD wiring type (2, 3, or 4-wire) needed for your application to select the correct variant.
3. Software Tools Requirement: Configuration and commissioning require GE’s proprietary ToolboxST software and appropriate licensing. Ensure access and expertise are available.
4. Sensor Specification Match: Confirm that your RTD sensors (Pt100, Pt1000, tolerance class) match the input specifications and configuration of the GE IS220PRTDH1A module.
