Product Analysis Report

Product Description

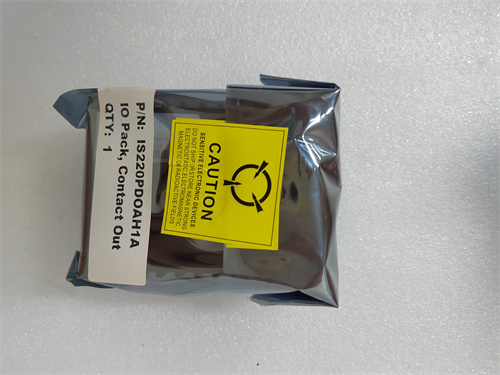

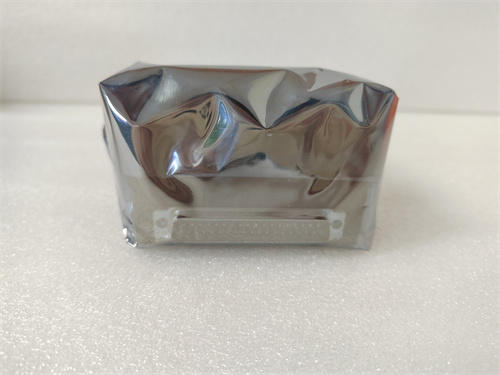

The GE IS220PDOAH1A is a critical digital output module from the Mark VIe series, a core component of GE’s (now GE Vernova) Speedtronic™ turbine and plant control platform. Designed for high-reliability command of field devices, the GE IS220PDOAH1A (product link: GE IS220PDOAH1A) provides a robust interface between the Mark VIe controller’s logic and the final control elements in the field, such as solenoid valves, motor starters, and alarm annunciators. This module translates low-voltage control signals from the processor into isolated, high-power switching commands to drive industrial loads. In the architecture of a turbine control system, the GE IS220PDOAH1A acts as the muscle, executing critical start/stop, permissive, and protection sequences. The reliability and speed of this module are paramount for safe and efficient plant operation, making the GE IS220PDOAH1A a vital component in any Mark VIe installation where discrete control is required.

Product Parameters

• Manufacturer: General Electric (GE), part of the Mark VIe Speedtronic system.
• Model: IS220PDOAH1A (Specific functional and revision code).
• Function: Digital (Discrete) Output Module for Mark VIe Controller.
• Output Type: Typically solid-state or relay-based output channels (specific type defined by the ‘PDOA’ nomenclature and suffix).
• Output Channels: Commonly 16 or 32 channels per module (exact count is model-specific).
• Output Rating: Each channel is rated for a specific voltage and current (e.g., 24-120VDC, 2A per channel). Exact specifications must be verified from the official datasheet.
• Isolation: Channels are typically grouped and isolated in banks (e.g., 4 or 8 channels per common) to provide electrical separation and simplify wiring.
• Communication: Connects to the Mark VIe controller’s backplane via a high-speed serial bus (PDH bus).
• Diagnostic Indicators: Features LED status indicators for module health, communication status, and per-channel output activity.
• Protection: Includes built-in protection against overloads, short circuits, and back-EMF from inductive loads.

Advantages and Features

• High-Density & Reliability: Packs a large number of output points into a single module, saving rack space while maintaining the high reliability demanded by critical turbine controls.
• Robust Load Driving: Designed to directly drive demanding industrial loads like solenoid coils and small contactors without the need for interposing relays in many cases.
• Comprehensive Diagnostics: Built-in status LEDs and communication to the controller provide immediate feedback on module health and output state, enabling rapid troubleshooting.
• Seamless System Integration: The GE IS220PDOAH1A is fully supported within the Mark VIe Toolbox™ engineering environment, allowing for easy configuration, forcing, and testing as part of the integrated control system.
• Hot-Swappable Design: In systems configured for redundancy, the module can typically be replaced without requiring a full controller shutdown, maximizing plant availability.

Application Cases in Key Fields

• Gas & Steam Turbine Control: Executes commands for fuel valve actuators, lube oil pumps, hydraulic units, purge fans, and critical annunciation during startup, operation, and shutdown sequences.
• Power Plant Auxiliary Systems: Controls motor-operated valves (MOVs), pump starters, and damper actuators for balance-of-plant systems like cooling water and fuel handling.
• Compressor Control: Used in pipeline compressor stations to control anti-surge valves, sealing systems, and cooling fans.
• Industrial Process Control: Applicable in large driven equipment control schemes, such as for compressors and pumps in chemical or refining industries.

Comparisons with Competing Products

Within the domain of integrated turbine control systems, the GE IS220PDOAH1A competes with digital output modules from other major OEM platforms like Siemens (T3000/TDX system I/O) and Woodward (NetCon Digital Output modules). Compared to standard PLC digital output cards (e.g., Allen-Bradley 1756-OB16), the GE module is specifically engineered for the higher reliability, faster scan times, and harsh electrical environments of turbine control. Its key advantage is its certified performance, native integration with turbine-specific control algorithms (like temperature matching and sequencing), and direct support from GE’s turbine controls engineering services.

Selection Suggestions and Precautions

• Verify Exact Specifications: The suffix (H1A) is crucial. Always confirm the exact output type (solid-state DC, relay), voltage rating, current rating per channel, and isolation grouping against your system’s design requirements and load specifications.
• Load Compatibility Analysis: Ensure the inrush and steady-state current of each connected load (e.g., solenoid) is within the module’s per-channel and total module ratings. For highly inductive loads, verify the module’s built-in suppression or plan for external flyback diodes.
• Fusing Requirements: Consult the system design guide. While the module has protection, external fusing on field wiring is often required for safety and to protect the wiring itself.
• Software Configuration: The GE IS220PDOAH1A requires proper configuration within the Mark VIe Toolbox™ software. Ensure the I/O configuration in the project matches the physical module type and channel assignments.
• Handling and ESD: Treat as an electrostatic-sensitive device. Use proper ESD precautions during handling and installation. Ensure the controller rack is properly grounded.
