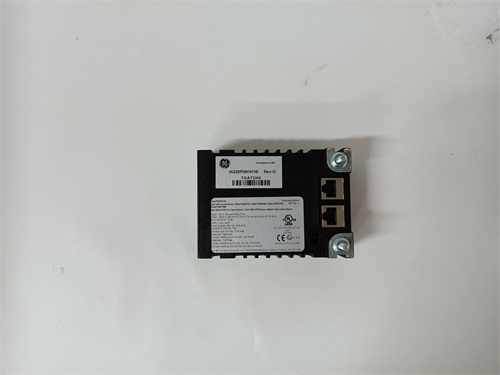

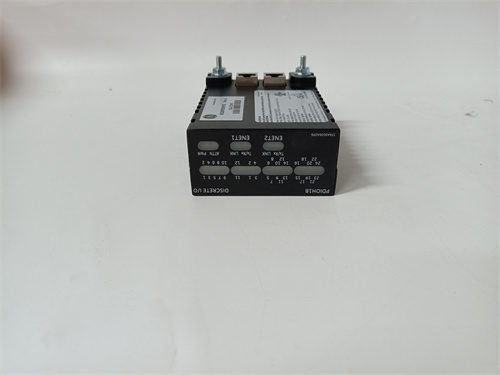

GE IS220PDIOH1B 336A5026ADP6

Description

Product Description

Product Parameters

• Module Type: Mark VIe discrete I/O pack (GE Speedtronic, turbine/industrial control)
• Core Function: Digital I/O signal acquisition/control, real-time diagnostics, redundancy support, networked communication
• I/O Channels: 16 digital inputs (24VDC, 2mA max); 16 digital outputs (28VDC, 2A per channel, 32VDC max)
• Processor: 32-bit local processor; 500MHz; real-time I/O processing; ControlST software compatibility
• Communication: Dual Ethernet ports (EtherNet/IP); Modbus TCP; ControlST protocol for controller integration
• Redundancy: Simplex/dual/triple-redundant system support
• Terminal Compatibility: TDBS/TDBT terminal boards; 24 field terminals; positive terminals = contact-wetting inputs
• Mechanical & Environmental: -40°C to +70°C operating temp; 5%-95% non-condensing RH; ~0.9kg; 114mm×89mm×57mm; conformal coating
• Power: 28VDC (27.4-28.6VDC); 0.8A max; ~15W typical consumption
• Certifications: Class I, Division 2 (Groups A/B/C/D); ATEX Zone 2 (Group IIC)

Advantages and Features

1. High-Density I/O with Direct Drive

   GE IS220PDIOH1B 336A5026ADP6’s 16-in/16-out channels (2A per output) directly drive relays/contactors, eliminating external amplifiers and simplifying integration.

2. Hazardous-Location Compliance

   Certified for explosive atmospheres, GE IS220PDIOH1B 336A5026ADP6 safely operates in oil/gas, chemical, and power substation applications.

3. Redundancy & High Availability

   Dual Ethernet and triple-redundancy support ensure GE IS220PDIOH1B 336A5026ADP6 minimizes downtime during failures.

4. Robust Design & Diagnostics

   Conformal coating and real-time LED diagnostics make GE IS220PDIOH1B 336A5026ADP6 reliable in harsh conditions and easy to troubleshoot.

5. Seamless Mark VIe Integration

   Works with Mark VIe controllers and ControlST software, making GE IS220PDIOH1B 336A5026ADP6 ideal for retrofits and new turbine control systems.

Application Cases in Application Fields

• Gas Turbine Control: GE IS220PDIOH1B 336A5026ADP6 managed 32 I/O points for a 100MW gas turbine, enabling safety shutdowns and speed control via dual Ethernet to the Mark VIe controller, cutting unplanned downtime by 35%.
• Steam Turbine Retrofit: It replaced legacy I/O packs in a 50MW power plant, integrating 24 field terminals for valve actuation and pressure monitoring with triple redundancy for 99.99% availability.
• Hazardous-Area Petrochemical: GE IS220PDIOH1B 336A5026ADP6 controlled pump motors and safety interlocks in a Class I, Division 2 refinery, complying with ATEX Zone 2 and enabling Modbus TCP data sharing with DCS.
• Wind Turbine Farm: It coordinated 16 I/O channels per turbine for pitch control and grid synchronization, using dual Ethernet for remote monitoring and reducing maintenance trips by 40%.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

• Choose GE IS220PDIOH1B 336A5026ADP6 for turbine control (gas/steam/wind) needing 16DI/16DO, hazardous-location compliance, and triple redundancy.
• Prefer it for retrofits of Mark VIe systems or new builds requiring 2A per DO to drive relays without external amplifiers.

Precautions

• Use only GE TDBS/TDBT terminal boards and follow wire size (22 AWG min) and torque specs for GE IS220PDIOH1B 336A5026ADP6.
• Match power supply to 28VDC (27.4-28.6VDC) to avoid damage; ensure overcurrent protection on output channels.
• Ground secondary circuits and use shielded cables for I/O wiring to minimize noise interference.
• Verify ControlST software compatibility and firmware version for seamless integration with Mark VIe controllers.
