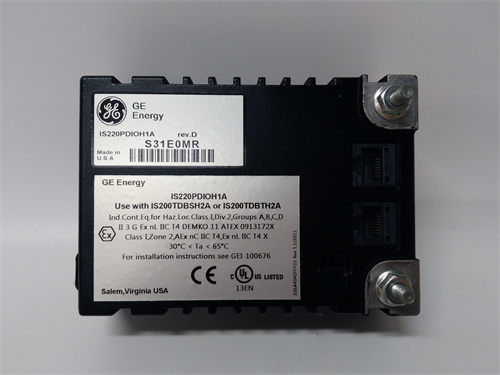

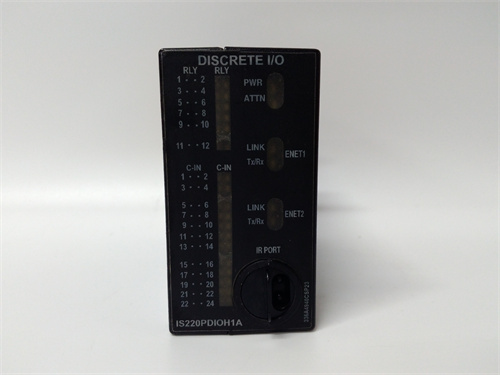

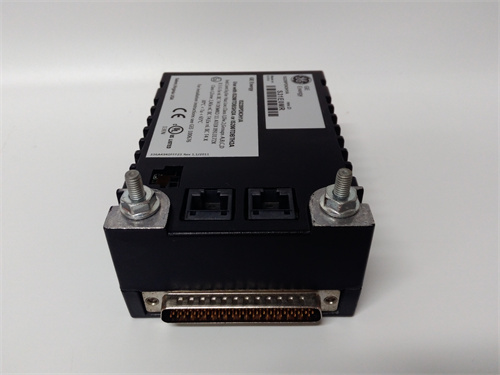

GE IS220PDIOH1A

Description

Product Overview and Description

The GE IS220PDIOH1A is a discrete input/output (I/O) pack designed for use within GE’s Mark VIe control system platform. The Mark VIe is a sophisticated, high-performance control system widely deployed for the control and protection of gas turbines, steam turbines, and generators in power generation, oil & gas, and industrial applications. The GE IS220PDIOH1A serves a critical function: it interfaces with field devices such as limit switches, pressure switches, solenoids, relays, and other discrete (on/off) devices, providing both input monitoring and output control capabilities essential for turbine operation and safety.

Engineered for the demanding 24/7 environment of power plants and compressor stations, the GE IS220PDIOH1A is built to withstand extreme temperatures, vibration, and electrical noise. Its robust design ensures that critical control and protection functions remain accurate and reliable. Utilizing genuine components like the GE IS220PDIOH1A guarantees the longevity and fault tolerance of your Mark VIe control system, minimizing unplanned downtime and ensuring the safe operation of your turbomachinery.

Technical Parameters

Based on the analysis of typical GE Mark VIe discrete I/O packs, the GE IS220PDIOH1A possesses the following likely characteristics:

• Device Type: Discrete Input/Output (I/O) Pack for Mark VIe control systems.
• Channel Configuration: Likely a combination of discrete inputs and discrete outputs on a single module.
  • Discrete Inputs: Typically 24 VDC or 125 VDC, for monitoring field contact status.
  • Discrete Outputs: Typically 24 VDC or relay contacts (Form A) for controlling solenoids, motor starters, and indicators.
• Channel Count: Likely 16 or 32 channels total, configurable as inputs or outputs.
• Isolation: Optical isolation between field circuits and the internal logic for protection against transients and ground loops.
• Diagnostics: Comprehensive onboard diagnostics with front-panel status LEDs for power, communication, and per-channel status. Fault detection includes open wire and short circuit monitoring.
• Communication: Communicates with the Mark VIe main processor via a high-speed, proprietary I/O network (IOD-NET).
• Redundancy: Designed to be used in redundant I/O configurations for critical applications, with dual communication paths.
• Mounting: Plugs directly into a Mark VIe I/O rack or baseplate.
• Part Number: GE IS220PDIOH1A is the specific ordering code for this discrete I/O pack.

Advantages and Key Features

The GE IS220PDIOH1A offers several critical advantages that make it a preferred choice for turbine control:

• High Reliability for Turbine Control: Designed specifically for the rigorous demands of gas and steam turbine control, the GE IS220PDIOH1A meets strict standards for reliability and safety, essential for continuous operation of critical rotating machinery.
• Seamless Mark VIe Integration: As a native component of the Mark VIe system, the IS220PDIOH1A integrates perfectly with the main processor, power supplies, and other I/O packs, providing a unified control and protection platform.
• Comprehensive Diagnostics: On-board diagnostics allow for quick fault detection and isolation, minimizing downtime when servicing the GE IS220PDIOH1A. Features like open wire detection help identify field wiring problems before they cause process upsets.
• Rugged Industrial Construction: Built to withstand the extreme conditions of turbine enclosures, including high temperatures, vibration, and EMI, ensuring stable performance of the GE IS220PDIOH1A.
• Redundancy Support: For critical applications, the GE IS220PDIOH1A can be configured in redundant I/O pairs, ensuring that a single module failure does not result in loss of control or protection functions.

Application Cases in Key Industries

The GE IS220PDIOH1A is fundamental to the operation of critical turbomachinery:

• Power Generation (Gas & Steam Turbines): In combined-cycle power plants, the GE IS220PDIOH1A monitors discrete signals from turbine auxiliaries such as lube oil pressure switches, valve limit switches, and vibration monitors, while controlling solenoids for fuel valves, start-up sequencing, and protection functions.
• Oil & Gas (Compressor Stations): On gas pipeline compressor stations, the IS220PDIOH1A provides the discrete I/O for controlling and monitoring gas turbine-driven compressors, ensuring reliable gas transport.
• Offshore Platforms: On production platforms, the GE IS220PDIOH1A monitors and controls auxiliary systems for turbine-driven generators and compressors, critical for platform power and processing.
• Industrial Cogeneration: In industrial plants with their own power generation, the GE IS220PDIOH1A ensures reliable control of turbine-generator sets, contributing to plant energy independence.

Comparison with Competitors

In the turbine control market, GE’s primary competitors are Siemens (T3000), ABB (Symphony Plus), and Woodward (for smaller turbines).

• GE IS220PDIOH1A vs. Siemens T3000 I/O Modules: Siemens offers robust I/O for turbine control. The GE IS220PDIOH1A is optimized for GE’s Mark VIe architecture and is often favored in installations with a large installed base of GE turbines, ensuring perfect compatibility and simplified spare parts management.
• GE IS220PDIOH1A vs. ABB Symphony Plus I/O: ABB provides strong competition. The IS220PDIOH1A benefits from GE’s deep expertise in turbine control and the seamless integration with GE’s proprietary control algorithms and protection functions.
• GE IS220PDIOH1A vs. Woodward I/O Modules: Woodward offers solutions for smaller turbines. The GE IS220PDIOH1A is the standard choice for GE’s heavy-duty gas and steam turbines, where performance and reliability requirements are most demanding.

Selection Recommendations and Precautions

1. Module Configuration Verification: The GE IS220PDIOH1A is a specific discrete I/O pack. Verify its input/output voltage ratings (e.g., 24 VDC, 125 VDC) match your field device requirements.
2. System Compatibility: Ensure the GE IS220PDIOH1A is compatible with your specific Mark VIe controller firmware and I/O network configuration.
3. Redundancy Planning: For critical turbine protection functions, plan for redundant I/O configurations using two GE IS220PDIOH1A modules to ensure fault tolerance.
4. Wiring and Termination: Follow GE’s recommended wiring practices and termination guidelines when connecting field wiring to the GE IS220PDIOH1A to ensure signal integrity and safety.
5. ESD Precautions: The GE IS220PDIOH1A contains sensitive electronic components. Always use an anti-static wrist strap and anti-static packaging when handling or installing the module.
