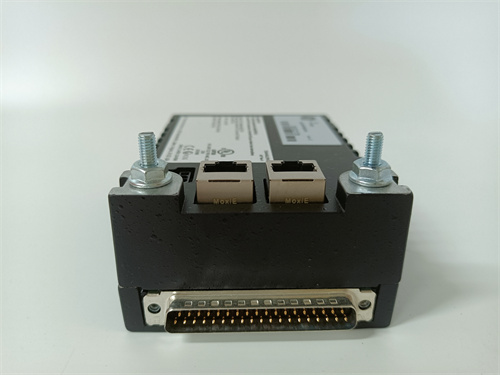

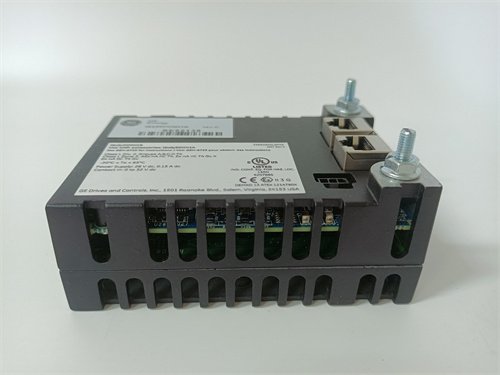

GE IS220PDIIH1B 336A5026ADP1

Description

Product Description

GE IS220PDIIH1B is a high-precision, dual-channel analog input module for the GE Mark VIe Speedtronic turbine control system, and the 336A5026ADP1 is its associated terminal board. Together, they form a complete channel for measuring critical speed and position signals. The GE IS220PDIIH1B module itself is a PDII (Position Detector Interface, Isolated Input) I/O pack. Its primary function is to interface directly with magnetic pickups (MPUs) or variable reluctance sensors to measure the rotational speed and phase (key phasor) of turbine shafts. It converts the raw sine wave signal from the sensor into a clean, digital representation of speed and a once-per-revolution pulse. The complementary 336A5026ADP1 terminal board provides the secure physical wiring termination and signal conditioning necessary for the MPU cables. The accuracy and reliability of the IS220PDIIH1B are non-negotiable, as its speed measurements are used for critical overspeed protection (Trip), governor control, and vibration phase analysis. For protection engineers, the integrity of this speed channel, powered by the GE IS220PDIIH1B, is a foundational element of turbine safety.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric) / Emerson
• System: Mark VIe Speedtronic Turbine Control
• Module (IS220PDIIH1B):
  • Type: Dual-Channel Isolated Speed Input (PDII) I/O Pack.
  • Input Signal: Accepts raw AC signals from magnetic pickups (typically 30 mV to 120 Vrms, 5 Hz to 20 kHz).
  • Channels: Two independent, isolated channels.
  • Outputs: Provides digital speed value and a synthesized key phasor pulse to the controller.
  • Diagnostics: LED status for power, communication, and channel-specific faults (e.g., sensor gap, signal loss).
• Terminal Board (336A5026ADP1):
  • Type: Position Detector Terminal Board.
  • Function: Provides screw terminals for MPU wiring, includes conditioning components (resistors, capacitors), and often features test points for signal verification.
  • Interface: Plugs directly into the IS220PDIIH1B I/O pack.

Advantages and Key Features

• Dedicated Speed Measurement: Engineered specifically for high-accuracy, high-reliability speed sensing, which is the most critical parameter for turbine protection.
• Dual Independent Channels: Allows for redundant speed measurement (2-out-of-3 voting for trips) or the combination of a speed and a key phasor input from a single module.
• Advanced Signal Processing: Includes sophisticated circuitry to handle noisy MPU signals, providing reliable zero-crossing detection and signal validation even at low speeds.
• Integrated Diagnostics: Continuously monitors sensor health, detecting conditions such as Open Sensor, Shorted Sensor, Excessive Gap, and Signal Loss, providing early warning of potential failures.
• System-Wide Integration: Fully configured within the Mark VIe ToolboxST software. Speed scaling, alarm setpoints (overspeed, underspeed), and trip logic are all managed centrally.
• Hot-Swappable Design: The I/O pack can typically be replaced without shutting down the turbine control system, supporting high availability.

Application Cases in Industry

• Turbine Overspeed Protection (OS): The primary and most critical application. The GE IS220PDIIH1B provides the speed signal used by the Trip System to initiate an emergency shutdown if overspeed is detected.
• Governor Speed Control: Provides the primary feedback signal for the digital governor to precisely control turbine speed during startup, synchronization, and load operation.
• Key Phasor for Vibration Analysis: The synchronized once-per-revolution pulse is essential for phase-referenced vibration monitoring (orbit plots, Bode plots) to diagnose imbalance, misalignment, and other mechanical faults.
• Zero Speed Detection: Used for alarm functions during turbine coast-down or for turning gear engagement.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Exact Part Number Matching: The suffix (H1B) on the I/O pack and the exact terminal board model (336A5026ADP1) are critical. They must match the system’s original design and configuration in ToolboxST.
2. MPU Sensor Compatibility: Verify the magnetic pickup sensor specifications (output voltage, resistance) are compatible with the input range of the GE IS220PDIIH1B module. The sensor air gap must be set correctly per manufacturer specs.
3. Shielded Cable Installation: Absolute necessity. Use double-shielded, twisted-pair cable for all MPU connections. The cable shield must be grounded at the terminal board end only to prevent ground loops and ensure noise immunity.
4. Configuration in ToolboxST: The module must be correctly configured for the number of pulses per revolution (PPR) of the specific gear teeth the MPU is sensing. Incorrect PPR setting will result in wildly inaccurate speed readings.
5. Testing and Calibration: After installation or replacement, the entire speed loop must be validated. This includes checking the raw MPU signal at the terminal board and verifying the speed reading in the HMI matches known reference values.
6. Sourcing from Certified Suppliers: Given its role in safety-critical protection, source the IS220PDIIH1B and its terminal board from suppliers who specialize in Mark VIe systems and understand the importance of genuine, tested components for protection channels.
