Description

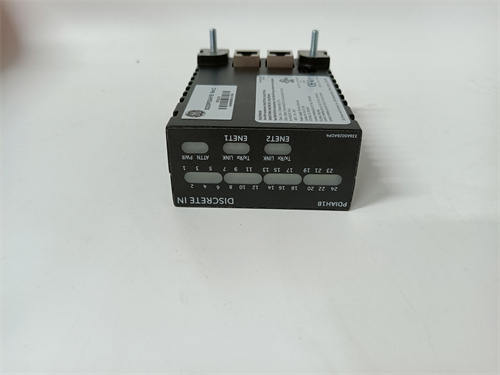

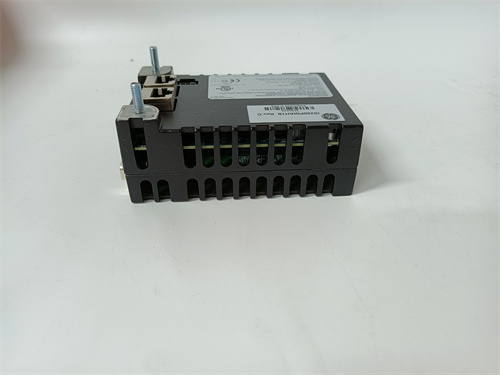

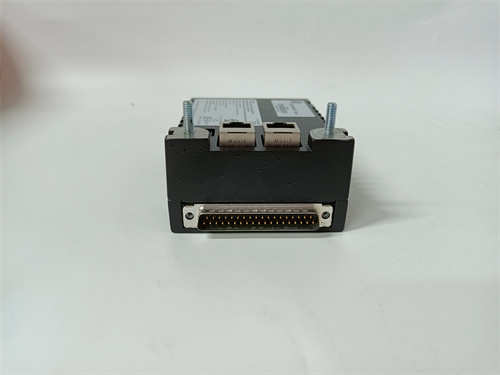

GE IS220PDIAH1B: Discrete Input/Output Pack for Mark VIe Turbine Control

Product Description

The GE IS220PDIAH1B is a Discrete Input/Output (I/O) pack for the GE Mark VIe turbine control system, now part of Emerson’s portfolio. This pack is a key component within the <EX2100e> or similar controller racks, providing a high-density interface for digital field signals. The GE IS220PDIAH1B combines both discrete inputs and outputs in a single, compact module, allowing it to read the status of switches and sensors (inputs) and control actuators like solenoid valves and relay coils (outputs) directly related to turbine sequencing, protection, and auxiliary systems. Its design is optimized for the demanding, high-vibration environment of a turbine control cabinet and integrates seamlessly via the high-speed VME backplane. The reliable performance of the GE IS220PDIAH1B is critical for the deterministic execution of turbine start/stop sequences and safety interlocks.

Product Parameters

• Product Type: Discrete I/O Pack (Combined Digital Input and Output)
• Manufacturer: GE (General Electric) / Emerson
• Part Number: IS220PDIAH1B
• Compatible System: Mark VIe Turbine Control System
• I/O Configuration: Contains a defined number of digital input and digital output channels (e.g., 16 inputs / 16 outputs, or a similar mix).
• Input/Output Voltage: Typically 24V DC or 125V DC, specific to the pack’s design for turbine applications.
• Isolation: Provides isolation between field circuits and the internal control electronics.
• Form Factor: VME Pack (VTCC/VTUR) for installation in a Mark VIe controller rack.
• Communication: Integrates with the main controller via the VME backplane.
• Diagnostics: Includes status LEDs and fault reporting to the controller.

Advantages and Features

The GE IS220PDIAH1B offers high-density I/O in a rugged, system-integrated package. Its key advantage is the combination of input and output functions, which saves valuable rack space and simplifies wiring for related control functions. The module is designed for high reliability and fast response times, which are essential for turbine protection logic. It includes diagnostic capabilities that can detect field wiring faults (open circuits, short circuits) and internal module errors, enhancing system maintainability. The pack is hot-swappable in redundant configurations, allowing for replacement without a turbine shutdown, maximizing availability.

Application Cases in Various Fields

This I/O pack is used exclusively in turbine control and sequencing. In Gas Turbine Power Plants, the GE IS220PDIAH1B handles signals for fuel valve positioning sequences, ignition system control, and reading critical permissive switches (e.g., lube oil pressure OK). For Steam Turbine control, it manages the electro-hydraulic control (EHC) system outputs and reads bearing temperature alarm contacts. It is also used in Aeroderivative Gas Turbines for accessory control and in Compressor Station turbines, managing anti-surge valve controls and unit permissives.

Comparisons with Competing Products

The GE IS220PDIAH1B is a proprietary, application-specific component of the Mark VIe system. Competing turbine control systems from Siemens (SPPA-T3000) or Woodward (NetCon) use their own discrete I/O modules. Compared to using generic PLC I/O cards, this pack is purpose-built for the high-reliability and environmental demands of turbine control, with specific signal types and diagnostics tailored for power generation applications. Its primary advantage is the guaranteed compatibility, performance, and support within the total Mark VIe solution, ensuring a certified and validated control system.

Selection Suggestions and Precautions

1. Exact Replacement Verification: The GE IS220PDIAH1B is one of many similar I/O packs. You must verify it is the exact replacement for the failed pack in your specific rack by matching the part number from the Mark VIe documentation or the pack’s label. Substituting a different I/O pack can have different channel counts or voltage ratings.
2. Configuration and Personality: The pack’s operation is defined by its configured “personality” in the ToolboxST software. When replacing, the new GE IS220PDIAH1B may need to have the correct firmware and personality module (if applicable) installed or downloaded from the controller.
3. Wiring Diagram Adherence: Carefully follow the site-specific wiring diagrams for the I/O pack. The terminal assignments for inputs and outputs on the GE IS220PDIAH1B are critical and must match the field device connections exactly.
4. Hot-Swap Procedure (if applicable): If replacing in a live, redundant system, strictly follow the Emerson/GE documented hot-swap procedure. Incorrect removal can cause a controller fault. For a non-redundant slot, a turbine shutdown is required.
5. Post-Replacement Testing: After installation, use the ToolboxST software to force inputs and outputs and verify the field device response. Confirm that all diagnostic readings for the new GE IS220PDIAH1B are normal before returning the turbine to service. Never assume a new module is correctly configured by default.
