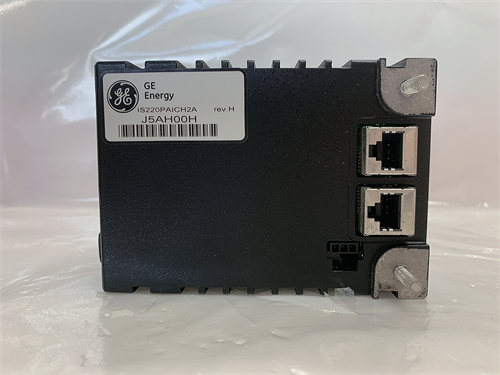

GE IS220PAICH2A

Description

Product Description

GE IS220PAICH2A is a critical analog input module within the Mark VIe turbine control system, manufactured by GE (now part of Emerson). This module, designated as a PAIC I/O pack, is specifically engineered to interface with process transmitters that provide continuous, real-time measurements essential for control and protection. The primary function of the GE IS220PAICH2A is to receive low-level analog signals, typically 4-20 mA or 0-10 VDC, from field sensors, convert them into high-resolution digital values, and transmit this data to the system’s central controllers (VCMI). It plays a vital role in monitoring parameters like pressure, level, flow, and position. The accuracy and reliability of the IS220PAICH2A are paramount, as its inputs directly influence critical control loops and protective algorithms. For system integrators, selecting and configuring the correct I/O pack, such as the GE IS220PAICH2A, is a foundational step in building a dependable control system.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric) / Emerson
• Series: Mark VIe Speedtronic Turbine Control System
• Functional Designation: Analog Input Module / I/O Pack
• Input Type: Accepts analog current and/or voltage signals (e.g., 4-20 mA, 0-10 VDC).
• Input Channels: Contains multiple isolated input channels (common configurations are 8 or 16 channels).
• Resolution: High-resolution analog-to-digital conversion (e.g., 16-bit) for precise measurement.
• Isolation: Channels are typically isolated from each other and from the system logic to prevent noise interference and ground loops.

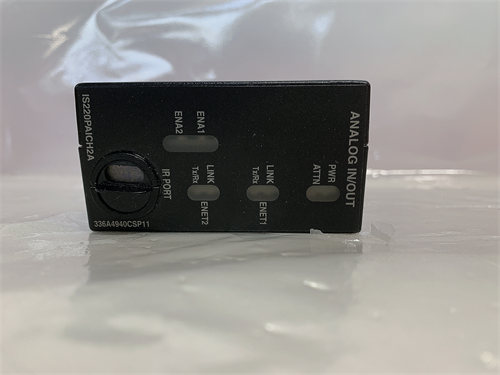

• Diagnostics: Features LED status indicators for module health, communication status, and channel-specific faults.
• Communication: Connects to the Mark VIe controller network via a high-speed backplane or fiber-optic link (PDB interface).
• Power Supply: Receives power from the system’s terminal board or rack.

Advantages and Key Features

• High Accuracy and Stability: Designed for precise measurement in noisy industrial environments, ensuring reliable data for control decisions.
• Channel-to-Channel Isolation: Prevents signal crossover and fault propagation, allowing a mix of signals from different sources and voltage potentials.
• Integrated Signal Conditioning: Includes filtering and protection circuits to safeguard against voltage transients and electromagnetic interference (EMI) present in turbine installations.
• Hot-Swappable Capability: Allows for replacement or maintenance without requiring a full system shutdown, maximizing plant availability.
• Advanced Diagnostics: Provides detailed fault reporting at both the module and channel level, which is communicated to the control system’s HMI for proactive maintenance.
• Seamless System Integration: Fully configurable within the Mark VIe ToolboxST engineering software, allowing for easy scaling, linearization, and alarm setting per channel.

Application Cases in Industry

• Gas Turbine Control: Measures critical parameters such as fuel gas pressure, compressor discharge pressure, exhaust temperature (via transmitter), and lube oil pressure.
• Steam Turbine Systems: Interfaces with transmitters for steam chest pressure, condenser vacuum, bearing oil pressure, and shell expansion.
• Auxiliary System Monitoring: Used for tank levels (fuel, water), differential pressure across filters, and cooling water flow rates in power generation plants.
• Compressor Station Control: Monitors suction and discharge pressures, temperatures, and vibration signals (converted to 4-20mA) for turbine-driven compressors.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Exact Model & Revision Verification: Confirm the exact part number and revision letter (the “H2A” suffix). Different revisions may have different firmware or hardware characteristics that are not backward compatible.
2. Signal Type Compatibility: Verify that the GE IS220PAICH2A is configured for the specific signal type (e.g., 4-20mA sinking vs. sourcing, voltage) required by your field transmitters. This is often set via jumpers or configuration in ToolboxST.
3. Terminal Board Compatibility: This I/O pack must be installed into its designated, compatible terminal board (e.g., an appropriate model like IS200TBAIHxxx). The terminal board provides the physical wiring points and often the power isolation.
4. Use Shielded Cabling: Always use properly grounded, shielded twisted-pair cables for analog signals to minimize noise interference, which is critical for maintaining the accuracy of the IS220PAICH2A.
5. Software Configuration is Mandatory: The module must be correctly defined in the Mark VIe control configuration within ToolboxST. This includes setting engineering units, alarm limits, and filter times for each channel.
6. Sourcing from Reputable Suppliers: Given its role in process measurement, source this module from suppliers who can verify its calibration and functionality. Ensure any used module comes with a testing certificate.
