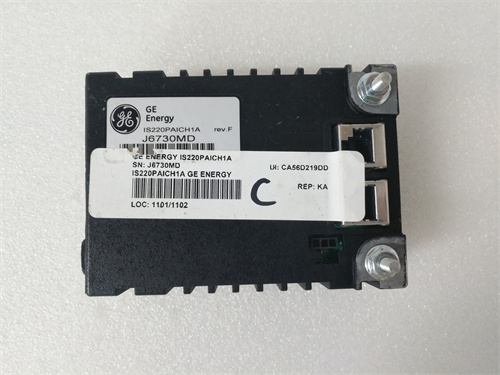

GE IS220PAICH1A | Mark VIe Analog I/O Pack, 4 Inputs / 2 Outputs

Description

Product Introduction

That gas pipeline compressor station in Alberta—the one with the GE LM2500 that runs year-round—had a weird surge event last winter. The logs showed the anti-surge valve didn’t open when it should have. The techs blamed the valve, the positioner, even the wiring. I pulled the history on the IS220PAICH1A that drives that valve. The analog output channel had been drifting for months—slowly, less than 1% per year—until finally it hit a point where the valve didn’t get enough signal to crack open. A calibration check confirmed it: the AO channel was reading 10 mA when it should have been 12. One replacement I/O pack, problem gone.

The GE IS220PAICH1A is a combo analog I/O pack from the Mark VIe series. It lives in the RXi or Rack IO chassis, right next to the power supply and the processor. Four inputs, two outputs—all 4-20 mA. The inputs are differential, 12-bit resolution, with a 250 Ω burden. The outputs are also 12-bit, sourcing up to 22 mA into 750 Ω. The pack handles its own scaling and linearization; the controller just reads or writes engineering units. It’s optically isolated from the backplane, so a field surge won’t take out the whole rack. In a turbine control system, these packs handle the critical stuff: lube oil pressure (input), fuel stroke reference (output), compressor discharge temperature (input), anti-surge valve demand (output). When one channel drifts or dies, the turbine follows.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

An analog pack needs more than a power-on test. Here’s our process.

1. Incoming Verification
   • Match the model: IS220PAICH1A. (There’s a -B variant with different firmware—this is the -A.)

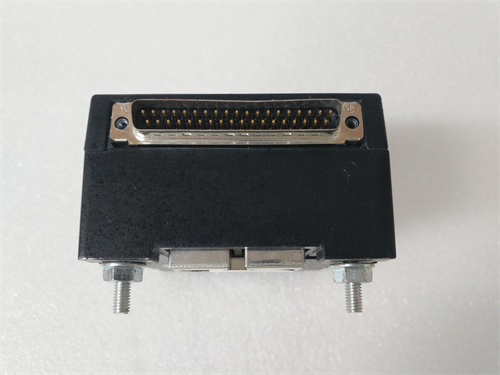

   • Visual inspection: Look for bent pins on the backplane connector. Check the terminal block for cracks.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the revision sticker (Rev. 01 is most common).
2. Power-On Self-Test
   • Insert the pack into a Mark VIe test rack with a known-good power supply.

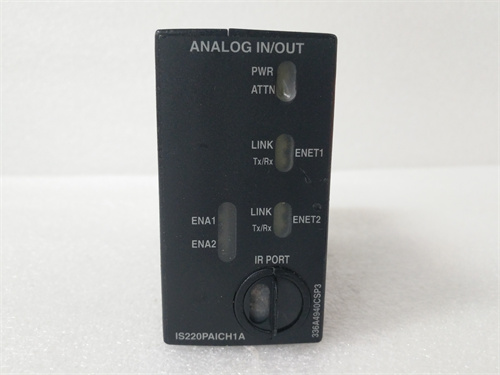

   • Apply rack power—watch the “PWR OK” LED.
   • Connect a laptop to the rack’s Ethernet switch, verify the pack appears in the IO configurator.
   • No comm errors, no fault LEDs.
3. Analog Input Test
   • Connect a Fluke 753 calibrator to each input channel in turn.
   • Inject 4.00, 12.00, and 20.00 mA.
   • Read the value from the controller (via Modbus or Toolbox).
   • Must read within ±0.1 mA at each point.
   • Test all four inputs simultaneously—no crosstalk.
4. Analog Output Test
   • Command each output to 4.00, 12.00, and 20.00 mA from the controller.
   • Measure with a Fluke 773 clamp meter (series mode).
   • Must be within ±0.1 mA.
   • Test with 250 Ω and 750 Ω loads—output must stay in spec.
5. Isolation Test
   • 500V megger between each input channel (shorted) and backplane ground—>10 MΩ.
   • Same for outputs.
   • Repeat between input and output groups—>10 MΩ.
6. Thermal Soak
   • 4 hours at 60 °C in a thermal chamber, all inputs at 12 mA, all outputs at 12 mA into 500 Ω.
   • Monitor readings via Ethernet—drift must be <0.2% of span.
7. Firmware Verification
   • Read the firmware version via the controller (usually v1.2 or higher).
   • Log it in the test report.
   • If the customer requests a specific version, we verify before shipping.
8. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—input/output accuracy logs, isolation values.

Field Replacement Pitfalls

I’ve swapped these in gas turbine basements during forced outages. Here’s where people go wrong.

❗Loop Power Confusion
The analog inputs need an external 24V loop supply—the pack doesn’t provide it. If you wire a 2-wire transmitter directly to the input without a supply in series, you’ll read 4 mA (the burden resistor) but no transmitter power. The pack will show a value, but it’ll be wrong (usually 4 mA). Use an external supply or a loop-powered isolator.

Output Load Limits
The outputs can drive up to 750 Ω. If you’re driving a long cable run (1000+ feet) into a high-impedance input, you might exceed that. Calculate the total loop resistance before you wire it.

Channel Assignment in Software
The pack has four inputs and two outputs, but the software mapping isn’t always obvious. Some firmware versions assign them in a different order. Check the I/O configurator before you assume channel 1 is the first terminal.

Grounding
The inputs are differential, but they’re not fully floating—they reference the pack’s internal ground. If your transmitter is grounded at the sensor end, you can create a ground loop. Use isolated transmitters or signal isolators.

Hot-Swap Reality
You can swap a Mark VIe pack while the rack is powered. But if you’re changing an analog output that’s controlling a live valve, the output will go to zero during the swap. That valve will stroke. Plan for it.

Nail these five, and your PAICH pack will outlast the turbine’s next major inspection.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this pack was manufactured by GE, packed in its original box, and never installed. The DACs and ADCs have zero hours, the optoisolators have never been stressed, and the terminal block has never been wired.

Refurbished risk in plain terms
A refurbished Mark VIe I/O pack often comes from a decommissioned turbine. It may have run for years in a hot cabinet. The analog components drift with age—a DAC that was within 0.5% ten years ago might be 2% off now. A refurbisher tests it at a few points and calls it good. But that drift will continue.

Real cost of a refurbished failure
If a critical input drifts just 1%, it might not trip anything—but it might cause the turbine to run inefficiently. Over a year, that inefficiency can cost tens of thousands in fuel. If an output drifts and a valve doesn’t open fully, you could surge a compressor. Catastrophic.

What we provide as proof

• GE box (or photos).
• Serial number recorded.
• Calibration report (4, 12, 20 mA for every channel).
• Thermal test log.
• 12‑month warranty.

Pricing context
We’re priced 35% above the cheapest “pulled” PAICH packs and 20% below GE’s last list price (obsolete, but we use it as a reference). That pays for the full 5-point calibration, the 4‑hour thermal soak, and the warranty that covers replacement if a channel drifts out of spec.

Performance Benchmarks & Test Results

Test conditions: Mark VIe test rack, 24.0V DC backplane, ambient 24 °C, inputs from Fluke 753, outputs into 250 Ω.

We keep the full calibration data—ask, and we’ll email the Excel file.
