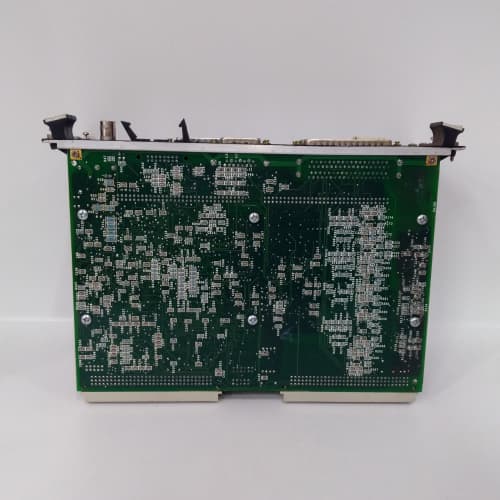

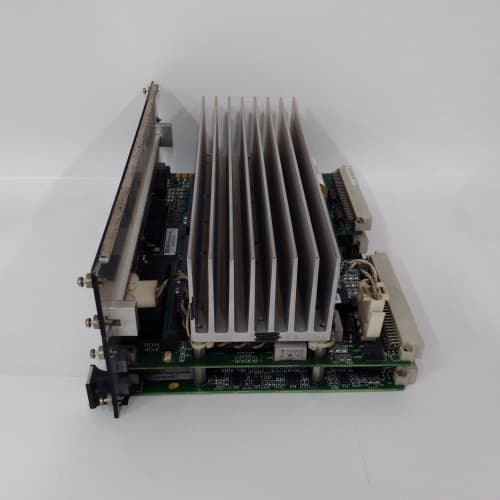

GE IS215VPROH1BD

Description

Product Description

GE IS215VPROH1BD is a critical safety system controller module for the GE Speedtronic Mark VIe turbine control system configured for Triple Modular Redundant (TMR) protection. This module, designated as a VPRO (Versatile Processor), serves as one of the three independent, parallel processing channels (typically labeled R, S, or T) within a TMR rack. The primary function of the GE IS215VPROH1BD is to execute identical application software, read its dedicated set of field inputs, and participate in a 2-out-of-3 voting process with its two sibling processors to determine the state of all critical outputs, such as turbine trip commands. It is the computational heart of a single channel within a fault-tolerant safety system. The reliability and deterministic performance of each VPRO module, including the IS215VPROH1BD, are what enable the Mark VIe TMR system to provide the highest levels of availability and safety for gas and steam turbine protection. System safety engineers depend on the flawless, synchronized operation of these controllers.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric), now part of Emerson
• Series: Mark VIe Speedtronic System (TMR Configuration)
• Functional Designation: Versatile Processor Module (VPRO) for a single TMR channel.
• Processor: High-performance, real-time processor for deterministic execution of protection and control logic.
• Memory: Contains volatile and non-volatile memory for the application firmware, control logic, and historical data.
• Communication Ports:
  • PDx Network: High-speed fiber optic ports for deterministic, synchronized communication with the other two VPROs in the TMR set and with system I/O.
  • Ethernet Port: For engineering access (ToolboxST), HMI communication, and non-critical plant network data.
  • VCMI Channel Link: Dedicated connection to its corresponding channel’s I/O controllers.
• TMR Voting: Contains hardware and firmware to participate in continuous, hardware-based voting of critical data with the other two processors.
• Diagnostics: Extensive self-diagnostics and continuous cross-channel monitoring to detect faults within its own channel.
• Redundancy: Part of a hardware architecture designed to tolerate a failure of any single channel (processor, power, or I/O) without causing a loss of the protection function.

Advantages and Key Features

• Fault-Tolerant Safety Architecture: The core purpose of the GE IS215VPROH1BD is to enable a system that can suffer a random hardware failure in any single channel without causing an unsafe condition or spurious turbine trip.
• Deterministic, High-Speed Execution: Provides the millisecond-level response times required for critical turbine overspeed protection and other safety functions.
• Hardware-Assisted Voting: Voting on critical data is performed in dedicated hardware, ensuring speed and reliability independent of the application software.
• Comprehensive Channel Diagnostics: Constantly monitors its own health and the validity of its computations. A detected fault within the IS215VPROH1BD will cause its outputs to be ignored by the voter, while the remaining two healthy channels maintain operation.
• Hot-Replacement Capability: A faulty processor module can be replaced while the turbine remains online under the protection of the remaining two healthy channels, maximizing unit availability.
• Integrated Development Environment: Programmed and configured using GE’s proprietary ToolboxST software, which manages the application code across all three synchronized processors.

Application Cases in Industry

• Gas Turbine Protection: Serves as one channel of the TMR system providing emergency shutdown (ESD) protection for large Frame and Aeroderivative gas turbines in power generation and mechanical drive service.
• Steam Turbine Trip Systems: Used in TMR configurations for high-reliability protection of utility and industrial steam turbines.
• Critical Compressor Protection: Provides TMR-level safety for turbine-driven compressors in offshore platforms or gas pipeline stations where reliability is paramount.
• Safety Instrumented Systems (SIS) for Turbines: Acts as the logic solver for Safety Instrumented Functions (SIFs) with high Safety Integrity Level (SIL) requirements.

Comparison with Competing Products

Selection Suggestions and Precautions

1. TMR System Requirement is Absolute: The GE IS215VPROH1BD is only for use in a Mark VIe system specifically configured for TMR. It cannot function in a simplex or dual-redundant system.
2. Firmware Version Synchronization is Critical: All three VPROs in a TMR rack must have identical firmware versions. Mismatched firmware will cause synchronization failure and a system fault.
3. Channel-Specific Replacement: A replacement IS215VPROH1BD must be installed in the correct physical slot (R, S, or T) corresponding to the channel it is replacing. The module’s firmware and configuration are typically channel-specific.
4. Application Backup is Non-Negotiable: Always have a verified, current backup of the complete TMR application from ToolboxST before handling any processor module. The application must be downloaded to a new or replaced module.
5. Handle with Extreme ESD Care: Use rigorous electrostatic discharge (ESD) precautions—grounded wrist strap, anti-static mat, and bag. These are highly sensitive devices.
6. Sourcing from Certified Specialists: Source this module only from vendors with deep expertise in Mark VIe TMR systems. They must be able to verify firmware version, provide configuration support, and ensure the module is tested for TMR operation.
