GE IS215VCMIH2C

Description

Product Description

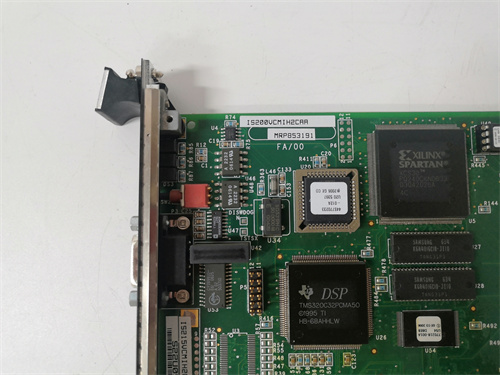

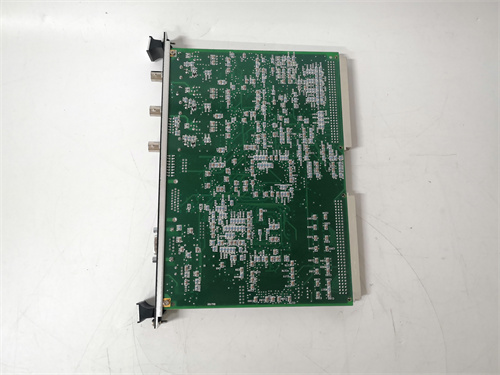

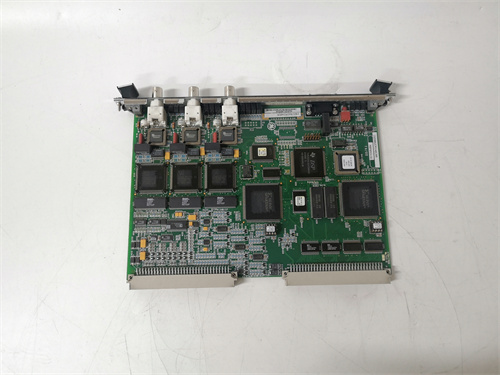

The GE IS215VCMIH2C is a high-performance vibration monitoring and protection module from the Mark VIe Speedtronic control system family. This specialized I/O pack is dedicated to the critical task of acquiring, conditioning, and processing analog vibration signals from accelerometers and proximity probes installed on turbine and generator bearings. The IS215VCMIH2C serves as the first line of defense for machinery health, converting raw vibration waveforms into actionable data for protection, alarming, and diagnostic analysis. Engineered for precision and reliability, this module operates as an intelligent node within the distributed Mark VIe architecture, ensuring that vital machinery protection functions are executed with determinism and speed. You can review detailed signal conditioning specifications, setup procedures, and integration guides for this essential protection component at the official product link: GE IS215VCMIH2C. The correct operation of the GE IS215VCMIH2C is fundamental to preventing catastrophic machinery damage by enabling early detection of unbalance, misalignment, and other mechanical faults.

Product Parameters

• Manufacturer / Brand: GE (General Electric)
• Product Model: IS215VCMIH2C
• Product Series: Mark VIe Speedtronic System (often part of the Turbine Vibration Monitoring – TVM subsystem)
• Module Type: Vibration Channel Monitor / Vibration Input Module
• Primary Function: Acquires and processes vibration signals from various transducers for protection and monitoring.
• Input Types: Accepts signals from accelerometers (typically ICP/IEPE type for seismic vibration) and eddy-current proximity probes (for shaft relative vibration and position).
• Channels: Contains multiple independent input channels, each with dedicated signal conditioning.
• Signal Conditioning: Includes features like ICP/IEPE constant current excitation, adjustable gain, high-pass and low-pass filtering, and integration (to convert acceleration to velocity or displacement).
• Processing: Performs real-time calculations such as Peak-to-Peak, RMS, and gap voltage (for proximity probes). May perform spectral analysis (FFT).
• Communication: Integrates with the main Mark VIe controller via a deterministic Ethernet network, streaming processed data and alarms.
• Protective Outputs: Can generate direct hardware alarm/trip outputs based on configured setpoints.

Advantages and Features

The GE IS215VCMIH2C vibration module offers distinct advantages for machinery protection:

• High-Fidelity Signal Acquisition: Provides precise, low-noise conditioning specifically designed for dynamic vibration signals, ensuring accurate representation of machinery health.
• Dedicated Processing Power: Offloads the computationally intensive task of vibration signal processing from the main controller, allowing for high-channel-count systems and advanced on-board diagnostics.
• Integrated Protection Logic: Capable of executing fast hardware-based alarm and trip logic, providing a reliable protection layer that is independent of the main controller’s scan time for critical functions.
• Comprehensive Diagnostics: Includes channel-level diagnostics for sensor health (e.g., open wire, short circuit, over-range) and module status, enabling predictive maintenance of the monitoring system itself.
• Seamless System Integration: Delivers vibration data directly into the unified Mark VIe/System Toolbox environment, allowing for correlated analysis with process parameters (speed, load, temperature) for advanced diagnostics.

Application Cases in Application Fields

This module is exclusively used for rotating equipment protection in power generation:

• Gas & Steam Turbine Bearing Monitoring: Continuously monitors radial and axial vibration on turbine bearings using proximity probes and accelerometers to detect unbalance, rotor bow, or thrust bearing wear.
• Generator Bearing and Stator Monitoring: Protects generator bearings and can monitor core/stator vibration to detect issues like loose windings or frame resonance.
• Critical Pump and Fan Monitoring: Used for major auxiliary equipment such as boiler feed pumps, induced draft fans, or gas compressor trains within the plant.
• Turbine Supervisory Instrumentation (TSI): Forms the core of the digital TSI system, providing traditional TSI functions (vibration, position, speed, phase) within the integrated Mark VIe control framework.

Comparisons with Competing Products

Compared to other vibration monitoring solutions:

• vs. Stand-Alone Vibration Monitors: Traditional rack-mounted monitors (e.g., from Bently Nevada, Emerson) are standalone systems. The IS215VCMIH2C integrates vibration protection directly into the turbine control system, enabling tighter coupling of protection with turbine operating states (e.g., on turning gear, during start-up).
• vs. Generic Analog Input Modules: Standard analog input modules lack the specialized conditioning (ICP power, integration), processing power, and protective logic required for reliable vibration monitoring. The IS215VCMIH2C is purpose-built for this critical task.
• vs. Competing OEM Integrated Solutions: Similar integrated vibration cards exist in other turbine control platforms (e.g., Siemens). The IS215VCMIH2C competes on the depth of its integration with GE’s control logic, the performance of its signal conditioning, and the functionality of its accompanying analysis software.

Selection Suggestions and Precautions

• Verify Transducer Compatibility: Absolutely confirm the input type (ICP accelerometer, 2-wire proximity probe) and required power supply for each channel. Incorrect configuration can damage sensors or the module.
• Calibration and Configuration are Critical: Each channel requires precise configuration for the specific transducer sensitivity (mV/g, mV/mil), scaling, alarm setpoints, and filter settings. This configuration must be backed up and accurately restored during replacement.
• Source from Authorized GE Suppliers: This is a precision measurement and protection device. Always procure the genuine GE IS215VCMIH2C from authorized channels to ensure calibration integrity and correct firmware. Counterfeit modules risk false trips or, worse, failure to trip.
• Plan for Signal Integrity: Vibration signals are highly susceptible to noise. Use proper shielded, twisted-pair cabling, ensure correct grounding per manual instructions, and maintain separation from power cables.
• Perform Post-Replacement Verification: After installing a new module, verify the calibration by comparing vibration readings with a known reference or a portable data collector. Check that all alarm and trip functions respond correctly to simulated signal inputs before returning the system to service.
