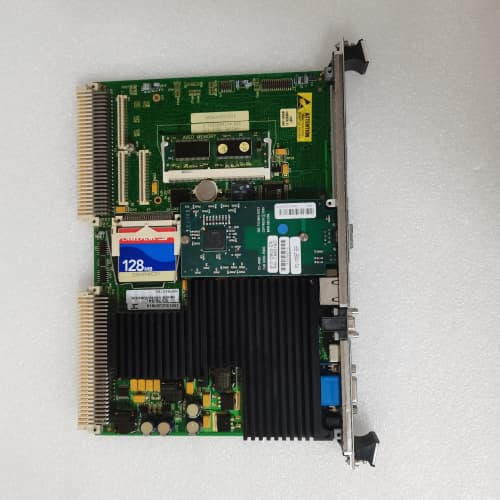

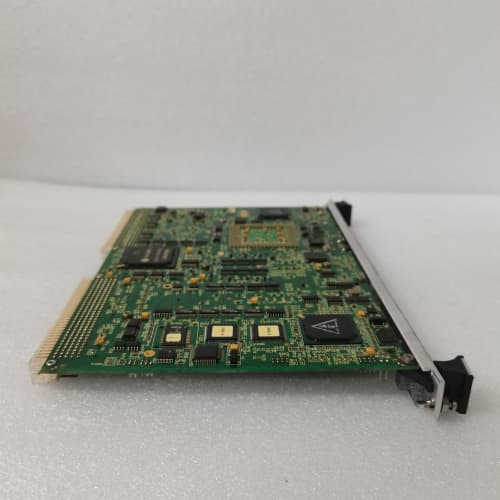

GE IS215UCVFH2A

Description

Product Description

Product Parameters

• Brand/Model: GE IS215UCVFH2A
• Core Processing Parameters
  • Processor: 1.0 GHz industrial-grade dual-core CPU
  • Memory: 2 GB DDR3 RAM (non-volatile), 8 GB industrial flash storage
  • Control Execution Rate: 0.5ms (minimum logic scan time), 5ms (standard PID loop update)
  • Supported I/O Capacity: Up to 4096 I/O points (via GE I/O modules)
  • Communication Protocols: Ethernet/IP, Modbus TCP/IP, Foundation Fieldbus H1, PROFIBUS DP, OPC UA
• Redundancy & Reliability Parameters
  • Redundancy: Hot standby (1:1) with automatic failover (< 50ms switchover time)
  • Mean Time Between Failures (MTBF): > 250,000 hours (per Telcordia SR-332)
  • Fault Detection: Built-in self-test (BIST), watchdog timer, hardware health monitoring
  • Power Supply: Redundant 24V DC (18-30V DC input range)
• Environmental & Physical Parameters
  • Operating Temperature: -20°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
  • Protection Grade: IP20 (rack-mount)
  • Dimensions: 100mm (W) × 150mm (H) × 200mm (D) (Mark VIe/RX3i chassis-compatible)
  • Installation: 2U rack-mount (redundant configuration requires 4U)

Advantages & Features

1. High-Speed Dual-Core Processing: GE IS215UCVFH2A’s 1.0 GHz dual-core CPU enables execution of complex control strategies (e.g., turbine load optimization, multi-variable process control) and high-speed data processing, critical for real-time decision-making in power generation and oil & gas applications.
2. Seamless Redundant Operation: Hot standby 1:1 redundancy with < 50ms failover ensures continuous system operation, eliminating downtime risks in industries where even brief outages can result in significant financial losses or safety hazards.
3. Expansive I/O & Protocol Support: The CPU supports up to 4096 I/O points and all major industrial communication protocols, enabling integration with GE I/O modules, third-party smart devices, and enterprise-level systems (MES/ERP) for end-to-end process visibility.
4. Advanced Cybersecurity: Role-based access control (RBAC), encrypted communication (SSL/TLS), and intrusion detection features protect against cyber threats, complying with IEC 62443 and NIST standards for industrial control system security.

Application Fields & Cases

1. Gas Turbine Control System: A utility company deployed GE IS215UCVFH2A redundant CPUs in its Mark VIe turbine control system to manage a 9HA gas turbine at a combined-cycle power plant. The dual-core processing enabled real-time optimization of turbine fuel flow and emissions control, while redundancy prevented unplanned shutdowns during a primary CPU failure.
2. Oil & Gas Pipeline Monitoring: A midstream oil operator used GE IS215UCVFH2A in PACSystems RX3i systems to monitor and control a 1000-mile pipeline network. The CPU’s expansive I/O capacity supported 3000+ sensor inputs (pressure, flow, temperature), and OPC UA communication enabled seamless data sharing with the enterprise ERP system.
3. Chemical Plant Batch Process Control: A specialty chemical manufacturer integrated GE IS215UCVFH2A redundant CPUs into its process control system to manage batch reactor operations. The fast logic scan time (0.5ms) ensured precise control of reaction temperatures and pressures, improving batch consistency by 18% and reducing waste.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: GE IS215UCVFH2A is ideal for GE Mark VIe/RX3i users needing high-performance, redundant CPU for mission-critical applications (turbine control, pipeline management). For small-scale applications (< 1000 I/O points), choose the GE IS215UCVFH1A; for Siemens/Allen-Bradley systems, select S7-1500F or ControlLogix 5580 CPUs.
2. Precautions:
   • Deploy the CPU in a 1:1 redundant configuration for mission-critical applications to ensure uninterrupted operation—single-CPU setups are only recommended for non-critical processes.
   • Use only GE-certified I/O modules and communication gateways to maintain compatibility and avoid performance issues or communication failures.
   • Configure cybersecurity settings (RBAC, encryption) per IEC 62443 guidelines to protect against industrial cyber threats, especially when connecting to enterprise networks.
   • Perform regular firmware updates (per GE recommendations) to patch security vulnerabilities and ensure compatibility with new I/O modules or protocols.
   • Ensure the CPU is installed in a temperature-controlled, dust-free rack environment to maximize MTBF and prevent overheating-related failures.
