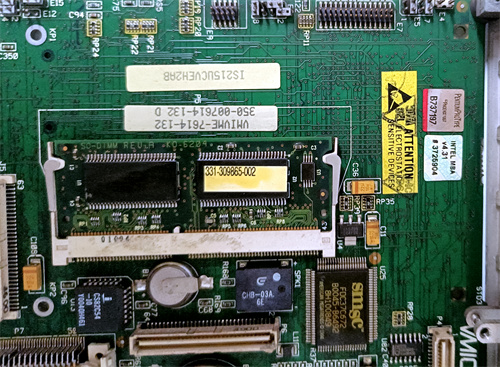

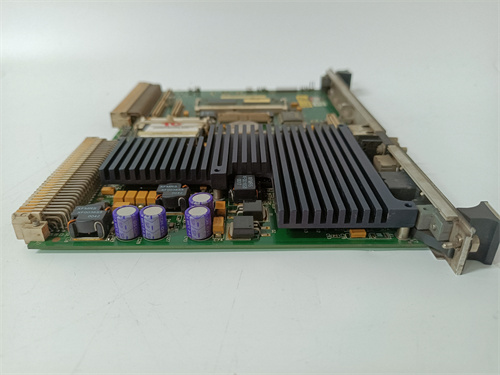

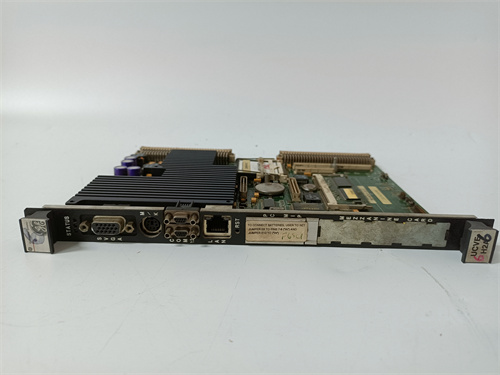

GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C

GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C is a 6U VME single – board controller for GE Mark VI turbine control systems, serving as the core SBC for real – time turbine application code execution and VME – bus – based I/O integration. GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C runs the QNX real – time OS, supporting multi – tasking control logic for speed, load, and safety shutdown in gas/steam turbines.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C is a 6U VME single – board controller for GE Mark VI turbine control systems, serving as the core SBC for real – time turbine application code execution and VME – bus – based I/O integration. GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C runs the QNX real – time OS, supporting multi – tasking control logic for speed, load, and safety shutdown in gas/steam turbines. GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C uses a 300MHz Intel Celeron processor, 32MB DRAM, and 16MB CompactFlash, ensuring deterministic processing of turbine control algorithms. GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C features dual Ethernet (10/100Base – TX), serial COM, and 8 status LEDs for remote diagnostics and communication monitoring. GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C is a single/double – slot VME module, compatible with 13/21 – slot VME racks and communicating with I/O boards via the VME bus. GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C has conformal – coated PCBs and industrial – grade EMI protection, operating stably in – 25°C to +70°C environments typical of turbine enclosures.

Product Parameters

Parameter Details
Module Type 6U VME Single – Board Controller (GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C)
Core Function Mark VI turbine control code execution; VME – bus I/O communication; real – time monitoring; safety shutdown control
Compatible Systems GE Speedtronic Mark VI turbine control systems (VME – based)
Processor 300MHz Intel Celeron
Memory 32MB DRAM; 16MB CompactFlash
OS QNX real – time operating system
Communication Dual 10/100Base – TX Ethernet ports; 1 serial COM port
Form Factor 6U high, single/double – slot VME single – board computer
Mounting 13/21 – slot VME racks
Indicators 8 front – panel LEDs (OK, Active, Ethernet, Flash status)
Operating Temperature – 25°C to +70°C
Storage Temperature – 40°C to +85°C
Humidity 5% – 95% RH, non – condensing
Compliance GE Mark VI standards; UL/CE certified

Advantages and Features

  1. Deterministic Real – Time Control: GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C uses QNX RTOS and a 300MHz processor for fast, reliable turbine control algorithm execution.
  2. Flexible VME Integration: Fits single/double slots in 13/21 – slot VME racks, communicating seamlessly with I/O via the VME bus.
  3. Dual Ethernet Redundancy: Dual ports ensure 99.99% communication uptime for remote monitoring and diagnostics.
  4. Visual Diagnostics: 8 status LEDs enable quick fault detection without opening the VME rack.
  5. Plug – and – Play Retrofit: Replaces legacy ICVB modules (with Ethernet cable upgrades) for Mark VI retrofits.
  6. Harsh – Environment Ready: Conformal coating and EMI protection resist turbine – enclosure electrical noise and temperature swings.

Application Cases in Application Fields

  • Gas Turbine Control: GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C ran speed/load control code in a 320MW gas turbine, reducing speed fluctuation to ±0.02% and cutting shutdown response time by 15%.
  • Steam Turbine Retrofit: It replaced an ICVB controller in a 450MW coal – fired plant, improving communication reliability by 30% and enabling remote diagnostics.
  • Aero – Derivative Turbine Control: GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C managed load distribution in a 150MW LM2500 turbine, with dual Ethernet ensuring data sync during offshore platform operations.
  • BOP Balance of Plant: It integrated with I/O modules in a combined – cycle power plant, controlling auxiliary systems and reducing unplanned downtime by 25%.

Comparisons with Competing Products

Parameter GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C Siemens 6DD1688-0CE0 ABB CI858A
System Compatibility GE Mark VI (VME – based) Siemens S7 – 400H ABB AC 800M
Form Factor 6U VME (1/2 slot) 6U VME (2 slot) 3U CompactPCI
Processor/Memory 300MHz Celeron; 32MB DRAM/16MB CF 266MHz Pentium; 16MB DRAM/8MB CF 400MHz ARM; 64MB DRAM/32MB CF
Communication Dual Ethernet + Serial Single Ethernet + 2 Serial Dual Ethernet + Profinet
RTOS QNX VxWorks Linux RT
Operating Temp – 25°C to +70°C – 20°C to +60°C – 30°C to +60°C
Retrofit Ease Replaces ICVB (Ethernet upgrade only) Requires adapter Full hardware reconfiguration

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C for Mark VI turbine retrofits needing a VME – based SBC with dual Ethernet and QNX RTOS.
  • Opt for it in power generation applications where deterministic control and remote diagnostics are critical.

Precautions

  • Use QNX – compatible application code and Proficy Machine Edition for configuring GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C.
  • Upgrade Ethernet cables when replacing ICVB modules with GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C for VME bus compatibility.
  • Check front – panel LEDs to confirm power, activity, and Ethernet status of GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C during operation.
  • Do not hot – swap GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C; power down the VME rack first to avoid bus damage.
  • Ensure conformal coating integrity of GE IS215UCVEH2AB VMIVME-7614-132 350-007614-132C to prevent moisture/chemical damage in turbine enclosures.
