GE IS210MACCH2AGG

Description

Product Description

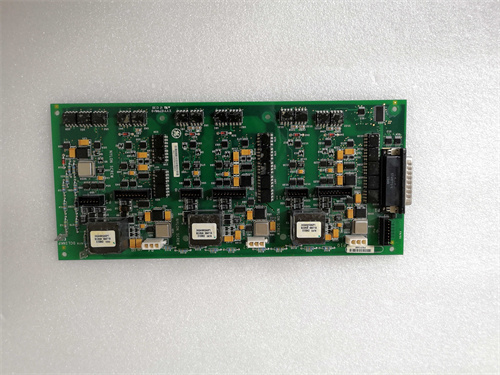

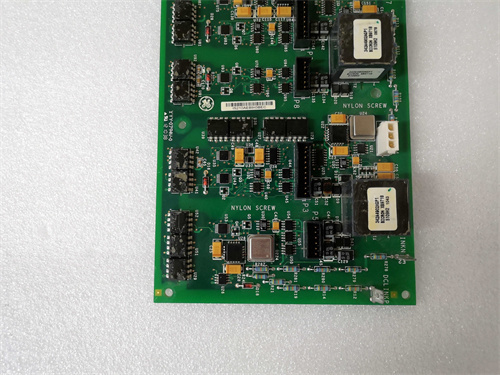

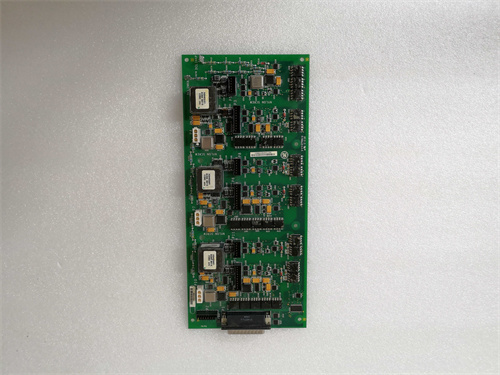

The GE IS210MACCH2AGG is a Modular Advanced Control Communications Hub module for the GE Mark VIe turbine control system. This specialized module functions as a high-performance, multi-protocol communication gateway and network interface within the Mark VIe’s distributed I/O architecture. The primary role of the GE IS210MACCH2AGG is to provide a robust communication link between the Mark VIe controller and various field networks, most commonly serving as a PROFIBUS DP Master interface. It allows the turbine control system to communicate with and manage a wide array of intelligent field devices such as variable frequency drives (VFDs), motor protection relays, remote I/O stations, and other subsystems that utilize the PROFIBUS protocol. The reliability and deterministic performance of this module are critical for integrating auxiliary systems into the cohesive turbine control and protection scheme.

Product Parameters

• Manufacturer/Brand: GE (General Electric)
• System: Mark VIe Speedtronic Turbine Control
• Module Type: Modular Advanced Control Communications Hub (MACCH)
• Primary Protocol: PROFIBUS DP (Decentralized Peripherals) Master.
• Data Transfer Rate: Configurable from 9.6 kbps up to 12 Mbps.
• Connector: Standard 9-pin D-sub female connector for PROFIBUS network.
• Function: Acts as a Class 1 Master on the PROFIBUS DP network, polling slave devices and exchanging I/O data with the Mark VIe controller.
• Configuration: Configured using GE’s ToolboxST software. The network scanlist and device parameters are defined within the ToolboxST project.
• Compatibility: Designed for specific Mark VIe I/O packs and terminal boards (e.g., paired with a compatible base unit like an IS200TBCISx series). The -AGG suffix indicates a specific hardware/firmware revision.
• Status Indicators: LEDs for module status, power, and network activity (PROFIBUS).

Advantages and Features

• Seamless Multi-Vendor Integration: The key advantage of the GE IS210MACCH2AGG is its ability to seamlessly integrate third-party PROFIBUS DP devices (e.g., Siemens drives, pump controllers) into the GE Mark VIe control ecosystem, allowing for a best-in-class system design.
• Deterministic Field Communication: Provides reliable, high-speed, and deterministic data exchange with field devices, which is essential for control loops and safety interlocks involving auxiliary equipment like boiler feed pumps or cooling fans.
• Centralized Configuration and Diagnostics: The entire PROFIBUS network, including all slave devices, is configured and diagnosed from within the familiar ToolboxST engineering environment, providing a unified view of the turbine and its connected systems.
• Robust Industrial Design: Built to withstand the high vibration, temperature, and electrical noise of a turbine control cabinet, ensuring long-term reliability.
• Simplified System Architecture: Eliminates the need for separate, standalone PLCs to communicate with PROFIBUS devices, reducing complexity, cost, and potential points of failure.

Application Cases in Key Fields

• Gas Turbine Auxiliary Systems: Connects the Mark VIe controller to PROFIBUS-based motor starters and protection relays for lube oil pumps, hydraulic power units, and cooling water pumps. The IS210MACCH2AGG enables direct monitoring and control from the main turbine HMI.
• Steam Turbine Balance of Plant: Interfaces with PROFIBUS DP remote I/O cabinets distributed in the turbine hall, collecting temperature and pressure signals from various points and controlling valve actuators.
• Compressor Station Control: In a turbine-driven compressor station, this module allows the Mark VIe to communicate directly with the compressor’s anti-surge controller and suction/discharge valve systems over PROFIBUS.
• Power Plant Common Systems: Integrates common plant systems (e.g., distributed fuel oil pumping or air compressor control) that use PROFIBUS into the main unit control system for centralized oversight.

Comparisons with Competing Products

• Vs. Using a Separate PLC as a Gateway: A common alternative is to use a small, separate PLC (e.g., Siemens S7-1200) as a PROFIBUS master and then communicate with the Mark VIe over Modbus TCP. The integrated IS210MACCH2AGG provides a more elegant, higher-performance, and more reliable solution with simpler engineering and a single point of configuration/diagnostics.
• Vs. Other GE Communication Modules (e.g., for Genius or Ethernet): The IS210MACCH2AGG is specifically for PROFIBUS DP integration. It is selected over other modules when the field devices or existing plant standard mandate the use of the PROFIBUS protocol.
• Vs. Third-Party PROFIBUS Master Cards for Mark VIe: While less common, third-party solutions exist. The genuine GE module guarantees full compatibility with ToolboxST, access to GE support, and adherence to the system’s certification requirements for critical control.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Protocol Requirement: Select the GE IS210MACCH2AGG specifically when your application requires the Mark VIe system to act as a PROFIBUS DP Master to communicate with slave devices.
  2. Verify Device Compatibility: Compile a list of all intended PROFIBUS slave devices and ensure their GSD files are available and compatible with the module’s firmware/ToolboxST version.
  3. Network Planning: Design the PROFIBUS network topology (line, star, with repeaters) and calculate the total data load and scan time to ensure performance requirements are met.
• Precautions:
  1. GSD File Management: Successful configuration requires the correct GSD (General Station Description) file for every slave device on the network. These must be imported into the ToolboxST project.
  2. Network Termination is Critical: The PROFIBUS DP network must be properly terminated at both physical ends with the termination resistor switch set to ON. An unterminated bus is a primary cause of communication failure and instability.
  3. Grounding and Shielding: Use proper PROFIBUS cable (shielded, twisted pair) and connect the cable shield to functional earth at every connecting point (subscriber) to prevent ground loops and ensure noise immunity.
  4. Configuration Backup: Before making any changes to a live system, ensure a complete backup of the ToolboxST project is taken. The configuration of the IS210MACCH2AGG and its slave devices is contained within this project.
