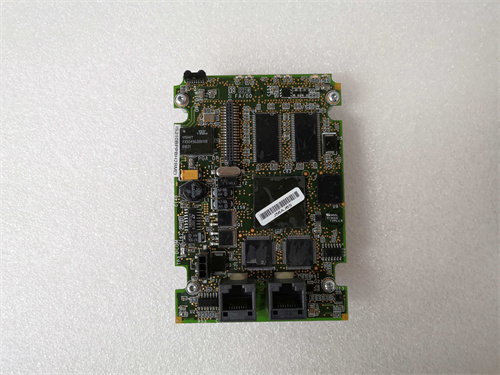

GE IS210BPPCH1AC

Description

Product Description

The GE IS210BPPCH1AC is a critical backplane and power distribution module from the Mark VI Speedtronic series, specifically designed to serve as a Bus Power and Processor Controller board. This module is a foundational hardware component that provides the physical electrical pathways (the bus) and power conditioning necessary for other controller modules to communicate and operate within the same rack. The IS210BPPCH1AC essentially forms the “motherboard” of a control segment, hosting the main processor and managing the distribution of data and power across the VME backplane.

Product Parameters

• Manufacturer / Brand: GE (General Electric)
• Product Model: IS210BPPCH1AC
• Product Series: Mark VI Speedtronic Turbine Control System
• Component Type: Backplane / Bus Power and Processor Controller Module
• Primary Function: Provides the VME bus backplane for module interconnection, houses the main processor slot, and includes power regulation/distribution for the modules installed in the rack.
• Bus Architecture: Implements the VMEbus standard, defining the data, address, and control lines for communication between the processor, I/O, and communication modules.
• Number of Slots: Defines the physical number of slots available in the rack for installing other Mark VI modules (e.g., processor, I/O, power supply modules).
• Integrated Power Supply: Contains onboard power conditioning circuitry to convert and filter incoming DC power for use by the backplane and modules.
• Processor Interface: Includes a dedicated slot and connector for the main control processor module (e.g., a PPCI board).

Advantages and Features

The GE IS210BPPCH1AC backplane module offers several system-level advantages:

• Integrated System Foundation: Combines the backplane, power distribution, and processor mounting into a single, engineered assembly, simplifying rack construction and ensuring compatibility.
• High-Speed Data Transfer: The VMEbus architecture provides a proven, high-bandwidth pathway for data exchange between the processor and I/O modules, supporting fast control loop execution.
• Robust Power Distribution: Designed with proper power plane layout and filtering to deliver clean, stable power to every slot, minimizing noise-related issues in sensitive analog and digital circuits.
• Mechanical Robustness: Constructed as a rigid printed circuit board assembly to securely hold heavy modules and withstand vibration, ensuring reliable long-term connections.
• Deterministic Architecture: The fixed bus architecture and slot positions contribute to the deterministic timing and predictable performance of the overall control system.

Application Cases in Application Fields

This module is the core of the controller rack in various turbine control applications:

• Main Turbine Controller Rack: Forms the primary hardware base for the Mark VI controller executing the main turbine sequencing, regulation, and protection logic for both gas and steam turbines.
• Exciter Control Rack: Serves as the backplane for the controller managing the static excitation system, which controls the generator field current.
• Triple Modular Redundant (TMR) Systems: Three identical IS210BPPCH1AC racks would be used to house the three redundant control channels in a TMR configuration, each operating in parallel.
• Specialized Auxiliary Control Racks: Can be used as the platform for dedicated controllers managing major auxiliary systems like the turbine lube oil system or fuel gas conditioning skid.

Comparisons with Competing Products

As a proprietary backplane, comparisons are inherently system-specific:

• vs. Generic Backplanes: Unlike passive generic VME backplanes, the IS210BPPCH1AC is an active module that includes integrated power conditioning and is specifically tailored for GE’s module form factors, connectors, and cooling requirements.
• vs. Competing OEM Architectures: This module represents GE’s VME-based Mark VI architecture. Competing systems from Siemens (T3000) or Woodward (NetCon) use entirely different physical bus structures (e.g., PCI, proprietary), different form factors, and different power distribution methods. They are not interchangeable in any way.
• Role Definition: Its closest competitor is the main controller backplane in another OEM’s system. The competition is at the platform level, comparing overall system reliability, supported I/O density, and engineering toolchain efficiency.

Selection Suggestions and Precautions

• Define Rack Configuration Precisely: The IS210BPPCH1AC must be selected based on the required number of slots for the intended application (I/O count, communication modules, etc.). Using an undersized rack limits expansion.
• Verify Processor Compatibility: Ensure the backplane revision is compatible with the specific Mark VI processor module (PPCI card) you intend to use. Compatibility lists are provided in GE system manuals.
• Plan Power Input Requirements: Confirm the input power specifications (voltage, current) for the backplane and ensure the upstream cabinet power supply is adequately sized to feed it and all installed modules.
• Source from Authorized GE Suppliers: This is a complex, system-defining component. Always procure the genuine GE IS210BPPCH1AC from authorized channels. Counterfeit or faulty backplanes can cause intermittent, difficult-to-diagnose system failures.
• Handle with Extreme Care: The backplane is highly sensitive to electrostatic discharge (ESD) and physical damage. Always use an ESD wrist strap and handle the board by its edges. Inspect for bent pins or damaged connectors before installation. Ensure it is securely mounted to the rack chassis to prevent flexing.
