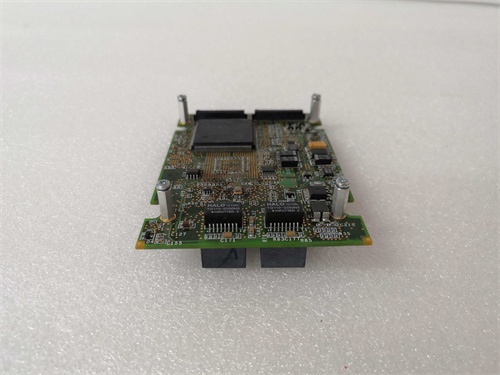

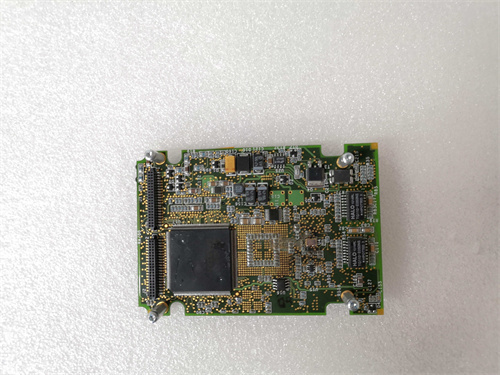

GE IS210BPPBH2CAA

Description

Product Description

GE IS210BPPBH2CAA is a critical safety system module within the GE Mark VIe Speedtronic turbine control system, specifically designed for Triple Modular Redundant (TMR) architectures. This module is a BPPB (Bridge and Pull-up Panel, B version), which serves as an essential interface and conditioning panel for critical trip and permissive signals. The primary function of the GE IS210BPPBH2CAA is to provide a robust, isolated, and voted interface between the turbine’s hardwired safety devices (like emergency trip pushbuttons, flame detectors, vibration switches) and the three redundant channels of the TMR control system. It conditions these discrete signals, applies pull-up/pull-down voltages, and presents them to the three separate controller channels (R, S, T) to ensure a single field device can be reliably read by all three voting processors. The integrity of the IS210BPPBH2CAA is paramount, as it sits directly in the path of the turbine’s protective shutdown signals.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric), now part of Emerson
• Series: Mark VIe Speedtronic System (TMR Configuration)
• Functional Designation: Bridge and Pull-up Panel (BPPB)
• I/O Type: Discrete (Digital) Input conditioning for critical safety signals.
• Signal Conditioning: Provides isolated dry contact input conditioning with configurable pull-up or pull-down resistors for proper logic state detection.
• Channel Count: Contains multiple independent channels, each capable of interfacing with a single field contact and distributing the signal to the three controller channels.
• Isolation: Provides high-grade electrical isolation between field wiring and the control system logic, and between the three controller channels, to prevent fault propagation.
• Voting Interface: The core design facilitates the TMR voting process by presenting an identical, conditioned signal to each of the three redundant controller inputs.
• Diagnostics: Features status LEDs for power and channel activity.
• Mounting: Designed as a panel or module that installs within the Mark VIe TMR rack assembly.

Advantages and Key Features

• TMR System Integration: Engineered specifically for seamless integration into a Triple Modular Redundant safety system, which is the gold standard for high-availability turbine protection.
• Enhanced Signal Integrity: The conditioning circuitry ensures that field contact signals (which can be noisy or have contact bounce) are converted into clean, definitive logic levels for the controllers, reducing the chance of spurious trips or missed alarms.
• Fault Isolation: Electrical isolation prevents ground faults or surges in the field wiring from damaging the sensitive controller input cards and helps contain faults within a single channel of the TMR system.
• High Reliability Design: Built with components and to specifications that support the Safety Integrity Level (SIL) required for turbine emergency shutdown systems.
• Simplified Troubleshooting: The panel-based design centralizes the termination and conditioning of critical trip signals, making loop checking and maintenance more straightforward.
• Deterministic Performance: Provides a consistent, fast signal path for critical inputs, supporting the millisecond-level response times required for protection.

Application Cases in Industry

• Gas & Steam Turbine Trip System: The primary application for the GE IS210BPPBH2CAA is to interface hardwired emergency trip devices (manual trip buttons, overspeed mechanical trips, high vibration switches, high temperature switches) into the electronic TMR protection system.
• Critical Permissive Signals: Used for essential permissive inputs that must be satisfied before allowing a turbine start, such as “lube oil pressure OK,” “control valve position verified,” or “fire system armed.”
• Flame Detection and Fuel Safety: Interfaces signals from flame detectors and fuel valve limit switches that are critical for burner management and fuel trip logic.
• Compressor Protection: Used in turbine-driven compressor packages for critical process shutdown signals like high discharge pressure or surge detection.

Comparison with Competing Products

Selection Suggestions and Precautions

1. TMR System Requirement Mandatory: The GE IS210BPPBH2CAA is only for use in a Mark VIe system configured for Triple Modular Redundancy. It is not compatible with simplex or dual-redundant Mark VIe systems.
2. Exact Part Number Verification: The suffix (H2CAA) is critical and denotes the hardware revision and specific configuration. It must match the system’s engineering design and spare parts list precisely.
3. Wiring and Schematics: All field wiring to this panel must be performed in strict accordance with the Mark VIe system’s TMR wiring diagrams. Incorrect wiring can defeat the redundancy or cause a nuisance trip.
4. Pull-up/Pull-down Configuration: The module may be configured for either sourcing (pull-up) or sinking (pull-down) inputs based on the field contact design. This must be set correctly during installation to match the field device.
5. Functional Testing: After installation or replacement, the associated trip and permissive functions must be thoroughly tested using the approved procedures to verify proper operation and voting across all three channels.
6. Sourcing from Specialized Vendors: Given its critical safety role, source the IS210BPPBH2CAA only from vendors with proven expertise in Mark VIe TMR systems who can provide components with traceability and verification.
