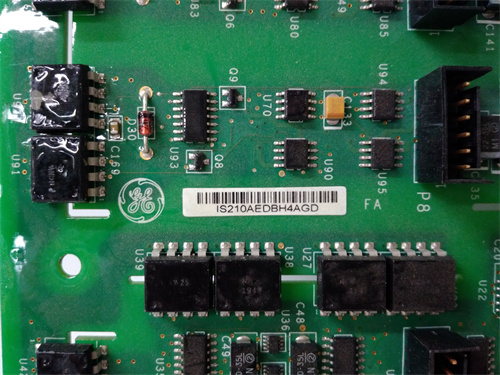

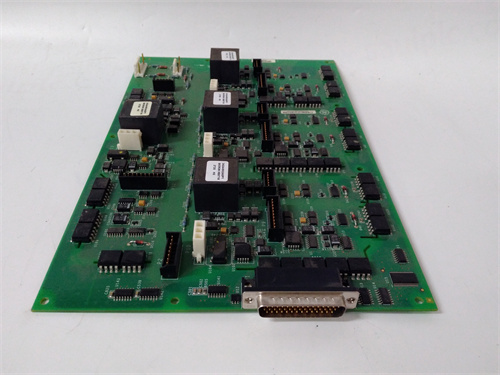

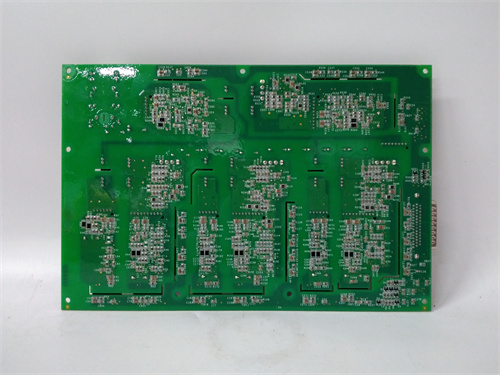

GE IS210AEDBH4AGD

Description

1. Product Overview

2. Product Parameters

2.1 Core Analog I/O Specifications

Analog Inputs (16 Channels)

• Supported Signal Types: 4-20mA DC, 0-10V DC, thermocouples (J/K/T/E/R/S/B), RTDs (Pt100, Pt1000)
• Resolution: 16-bit (current/voltage), 18-bit (thermocouple/RTD)
• Accuracy: ±0.05% of full scale (current/voltage), ±0.1°C (thermocouple), ±0.05°C (RTD)
• Input Impedance: 250Ω (4-20mA), >10MΩ (voltage), 100Ω (RTD)
• Sampling Rate: 100 samples per second (per channel, simultaneous)

Analog Outputs (8 Channels)

• Supported Signal Types: 4-20mA DC, 0-10V DC (configurable per channel)
• Resolution: 16-bit
• Accuracy: ±0.1% of full scale
• Output Load Capacity: 500Ω (4-20mA), 10kΩ (0-10V)
• Update Rate: 50ms (per channel)

2.2 Electrical & System Parameters

• Power Supply: 24V DC (±10%), isolated
• Power Consumption: 5W (typical)
• Communication Interface: GE Turbine Control Bus (TCB), Ethernet (for diagnostics)
• Isolation: 2500V AC channel-to-channel, 3000V AC channel-to-ground, 1500V AC input-to-output
• Redundancy: Optional 1:1 hot standby (via Mark VIe redundant backplane)
• Calibration: Software-calibratable via GE ToolboxST (no manual trim pots)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (rack-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Mark VI/Mark VIe control rack-mount (3U height)
• Weight: 2.1kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• Turbine Standards: API 612 (steam turbines), API 670 (machinery protection), ISO 13849-1 (safety-related systems)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)

3. Advantages & Features

1. High-Density I/O Integration: GE IS210AEDBH4AGD combines 16 analog inputs and 8 analog outputs in one module, reducing the number of hardware components in turbine control racks by up to 40% and lowering installation costs.
2. Precision Signal Processing: 18-bit resolution for temperature measurements and ±0.05% accuracy for current/voltage signals ensure GE IS210AEDBH4AGD delivers reliable data for critical turbine control loops (e.g., fuel regulation, speed control).
3. Hot-Swappable Design: The module can be replaced without powering down the turbine control system, allowing GE IS210AEDBH4AGD to support 24/7 operation and minimize maintenance downtime in power plants.
4. Comprehensive Diagnostics: Built-in self-test (BIST) and signal fault detection (open circuit, short circuit, overrange) provide real-time alerts for GE IS210AEDBH4AGD, enabling proactive troubleshooting and reducing unplanned outages.
5. Native Turbine System Compatibility: GE IS210AEDBH4AGD integrates seamlessly with Mark VI/Mark VIe controllers, eliminating the need for third-party signal converters and simplifying system commissioning.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Gas/steam turbine control, HRSG monitoring and actuation
• Fossil Fuel Power Plants: Steam turbine speed and load control, boiler-turbine coordination
• Industrial Turbines: Compressor/pump driver turbine automation, process gas turbine control
• Hydroelectric Facilities: Turbine governor control, generator excitation system monitoring

4.2 Typical Cases

1. Combined-Cycle Plant Turbine Control: A European power plant deployed GE IS210AEDBH4AGD modules to manage analog I/O for 6 gas turbines (Mark VIe systems). The high-density design reduced control rack footprint by 35%, while 18-bit temperature resolution improved fuel valve control accuracy, increasing turbine efficiency by 1.2%.
2. Steam Turbine Speed Regulation: A U.S. coal-fired power plant used GE IS210AEDBH4AGD to process RTD temperature inputs and send 4-20mA signals to turbine governors. The module’s ±0.1% output accuracy ensured precise speed control (±1 RPM), complying with grid frequency regulations and avoiding penalties.
3. Industrial Gas Turbine Automation: A Middle Eastern refinery integrated GE IS210AEDBH4AGD into its Mark VI control system for a process gas turbine driving a centrifugal compressor. Hot-swappable design allowed module replacement during a scheduled maintenance window without interrupting refinery operations, saving $500,000 in lost production.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Density Turbine I/O Needs: Choose GE IS210AEDBH4AGD for power plants requiring 16+ analog inputs and 8+ analog outputs—reducing module count and control rack complexity.
2. Precision Temperature Measurement: Opt for GE IS210AEDBH4AGD if your application demands 18-bit resolution for thermocouple/RTD signals (e.g., turbine exhaust temperature monitoring).
3. Mark VI/Mark VIe Turbine Systems: Select GE IS210AEDBH4AGD for native compatibility with GE Speedtronic™ controllers, simplifying system integration and commissioning.

6.2 Precautions

1. Installation Guidelines:
   • Mount GE IS210AEDBH4AGD in a Mark VI/Mark VIe control rack with adequate ventilation (ambient temperature <70°C) to prevent overheating.
   • Use shielded twisted-pair wiring for analog signals and ground shields at the module end only to minimize EMI interference.
2. Configuration Notes:
   • Configure analog input/output signal types via ToolboxST before commissioning—mismatched signal settings will cause measurement/control errors.
   • Enable redundant power supply connections for critical applications to ensure GE IS210AEDBH4AGD operation during a single power source failure.
3. Troubleshooting:
   • For analog input faults: Check for open/short circuits in sensor wiring and verify calibration via ToolboxST—most faults are caused by incorrect wiring or sensor failure.
   • For communication loss: Confirm TCB bus connections and check module firmware version (compatible with Mark VI/Mark VIe controller firmware).
4. Maintenance:
   • Recalibrate the module annually using a certified calibrator to maintain ±0.05% accuracy for current/voltage signals.
   • Stock spare GE IS210AEDBH4AGD modules for critical turbine applications—lead times for replacement may exceed 10 weeks for factory-ordered units.
