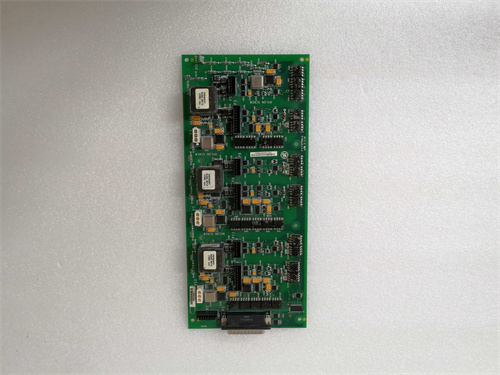

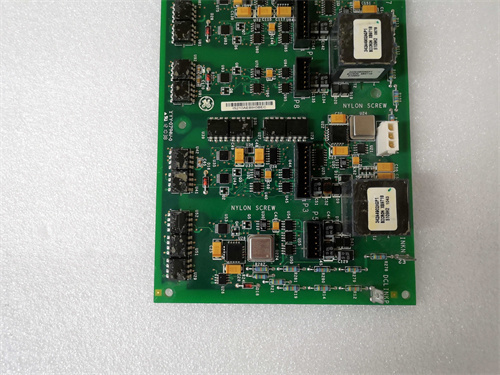

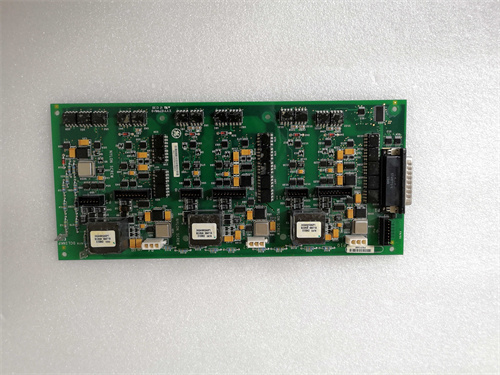

GE IS210AEAAH1B

Description

Product Description

Product Parameters

• Brand/Model: GE IS210AEAAH1B
• Core Analog Input Parameters
  • Input Channels: 8 isolated analog inputs (configurable 4-20mA DC / 0-10V DC)
  • Resolution: 16-bit
  • Accuracy: ±0.05% of full scale (25°C)
  • Input Impedance: 250Ω (4-20mA), 1MΩ (0-10V)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground
• Core Analog Output Parameters
  • Output Channels: 4 isolated analog outputs (configurable 4-20mA DC / 0-10V DC)
  • Resolution: 16-bit
  • Accuracy: ±0.1% of full scale (25°C)
  • Load Capacity: 0-600Ω (4-20mA), 0-5kΩ (0-10V)
  • Isolation: 1500V AC channel-to-channel, 2500V AC channel-to-ground
• System & Diagnostic Parameters
  • Compatible Systems: GE Mark VI Turbine Control System, Mark VIe, Speedtronic MK VI
  • Diagnostic Functions: Open-circuit/short-circuit detection (inputs), output drift monitoring, overcurrent protection (outputs), LED status indicators (Power/OK/Channel Fault)
  • Update Rate: 5ms (inputs), 10ms (outputs)
  • Communication Interface: GE Serial Peripheral Interface (SPI) to turbine controller
• Environmental & Physical Parameters
  • Operating Temperature: -40°C ~ +85°C
  • Storage Temperature: -55°C ~ +125°C
  • Vibration Resistance: 10g (5-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
  • Protection Grade: IP20 (rack-mount, turbine control cabinet-compatible)
  • Dimensions: 120mm (W) × 180mm (H) × 220mm (D) (Mark VI/VIe chassis-compatible)
  • Installation: DIN rail/rack-mount (hot-swappable in redundant systems)

Advantages & Features

1. Integrated Analog I/O Design: GE IS210AEAAH1B combines 8 inputs and 4 outputs in one module, reducing chassis space requirements by 40% compared to separate input/output modules and simplifying turbine control system wiring.
2. Turbine-Optimized Performance: The module’s wide operating temperature range (-40°C ~ +85°C) and vibration resistance (10g) make it suitable for direct installation in turbine enclosures, eliminating the need for remote I/O racks and reducing signal latency.
3. Precision & Reliability: 16-bit resolution and ±0.05% input accuracy ensure precise measurement of critical turbine process variables, while overcurrent protection on outputs safeguards actuators (e.g., fuel control valves) from electrical faults.
4. Comprehensive Diagnostics: Real-time fault detection for inputs/outputs and integration with GE turbine control software enable proactive maintenance, minimizing unplanned turbine shutdowns and improving overall system availability.

Application Fields & Cases

1. Gas Turbine Power Generation Control: A utility company deployed GE IS210AEAAH1B modules in its Mark VIe turbine control system to monitor 8 pressure/temperature inputs (combustion chamber pressure, exhaust temperature) and control 4 fuel valve actuators on a 9HA gas turbine. The integrated I/O design reduced wiring complexity, while vibration resistance ensured reliable operation in the turbine enclosure.
2. Oil & Gas Pipeline Compressor Turbine Control: An offshore pipeline operator used GE IS210AEAAH1B to interface with flow sensors (inputs) and choke valve actuators (outputs) on gas turbine-driven compressors. The module’s diagnostic capabilities detected a faulty 4-20mA output to a choke valve, triggering a maintenance alert before compressor pressure instability occurred.
3. Industrial Steam Turbine Process Control: A pulp mill integrated GE IS210AEAAH1B into its Mark VI system to monitor boiler feedwater temperature/pressure (inputs) and control steam turbine governor valves (outputs). The module’s high accuracy enabled precise governor valve positioning, improving turbine efficiency by 2.5% and reducing fuel consumption.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: GE IS210AEAAH1B is ideal for GE Mark VI/VIe turbine control system users needing integrated analog I/O for turbine process monitoring and actuation. For general industrial analog I/O applications, choose Siemens 6ES7534-7QE00-0AB0 or Allen-Bradley 1756-IF8/OF8 modules.
2. Precautions:
   • Configure input/output signal types (4-20mA/0-10V) via GE ToolboxST software before installation—incorrect settings will cause control errors or equipment damage.
   • Use shielded twisted-pair cables for all analog wiring and route cables away from turbine generator cabling to minimize electromagnetic interference (EMI).
   • Ensure the module is powered by a GE-certified turbine control system power supply (e.g., IS200EPSMG1A) to maintain isolation and communication integrity.
   • Follow GE hot-swappable procedures (only in redundant turbine control configurations) to avoid disrupting turbine operation during module replacement.
   • Calibrate the module annually (per GE turbine maintenance schedules) to maintain input/output accuracy, especially for fuel valve and governor control outputs.
