GE IS200WEMAH1AEA

Description

Product Description

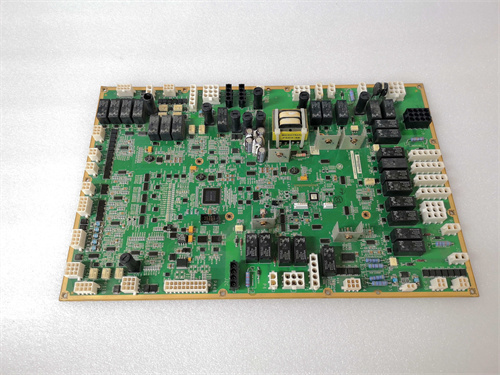

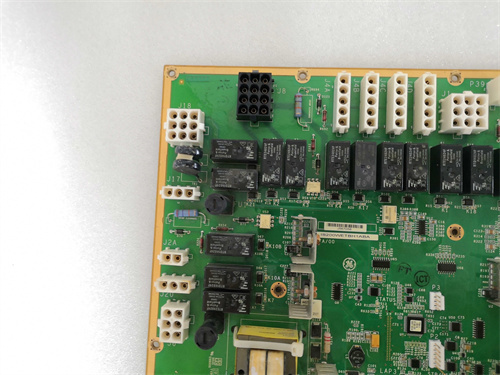

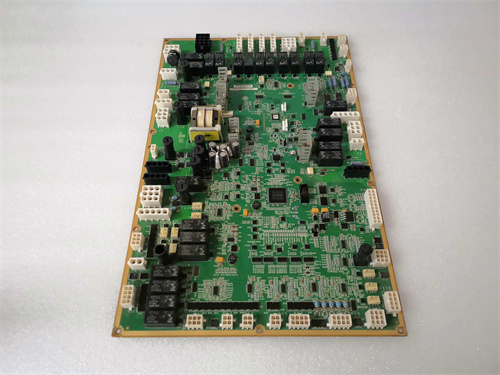

GE IS200WEMAH1AEA is a critical communication and system management module for the GE Mark VIe Speedtronic turbine control system. This module, designated as a WEMA (Workstation Ethernet Module, A version), functions as the primary Ethernet gateway and control interface for the Mark VIe controller rack. Its core function is to provide dual, independent Ethernet network connections for engineering access, operator interface (HMI) communication, and peer-to-peer data exchange with other plant systems. The GE IS200WEMAH1AEA acts as the bridge between the high-speed, deterministic control network (PDx) within the rack and the plant’s supervisory Ethernet network. It is often the point of configuration for the controller’s network identity and plays a key role in the system’s overall health diagnostics. For system integrators, the proper configuration of the IS200WEMAH1AEA is essential for establishing reliable connectivity for programming, monitoring, and historical data collection.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric), now part of Emerson
• Series: Mark VIe Speedtronic Turbine Control System
• Functional Designation: Workstation Ethernet Module (WEMA)
• Network Ports: Features two 10/100BASE-TX Ethernet ports (RJ45 connectors), often configurable for different network segments (e.g., Plant Network, Control Network).
• Internal Communication: Connects to the Mark VIe controller (VCMI) and other rack modules via the high-speed VME or PCI backplane.
• Protocol Support: Supports standard TCP/IP protocols and GE’s proprietary SRTP (Serial Real-Time Protocol) for deterministic communication with engineering workstations running ToolboxST.
• Functions: Serves as the network interface for:
  • Engineering configuration and programming (ToolboxST)
  • HMI/Operator Interface data servers
  • Historian and plant DCS communication
  • System time synchronization (via NTP)
• Configuration: Configured via the Mark VIe ToolboxST software, where IP addresses, subnet masks, and gateway settings are assigned.
• Status Indicators: Multiple LEDs for power, network link/activity, and fault status.

Advantages and Key Features

• Dual Independent Network Ports: Allows for network segmentation, enhancing security and performance by separating control traffic from plant business network traffic.
• Deterministic Engineering Access: Supports the SRTP protocol, which provides reliable and responsive communication for online monitoring and debugging within the ToolboxST environment, even on busy networks.
• Centralized Communication Gateway: Consolidates all supervisory and engineering network traffic through a single, managed module, simplifying network architecture and firewall configuration for the control system.
• Integrated System Diagnostics: The GE IS200WEMAH1AEA provides valuable diagnostic information about network health, connectivity, and communication errors, accessible through ToolboxST.
• Hot-Swappable Design: Can typically be replaced without shutting down the turbine control system, supporting high availability (requires system-specific procedures).
• Seamless ToolboxST Integration: Recognized natively by the engineering software, making it the straightforward and supported method for connecting a laptop to the controller.

Application Cases in Industry

• Turbine Control System Networking: The primary application is as the network interface for a Mark VIe controller managing a gas or steam turbine, connecting it to the plant’s central HMI, data historian, and engineering workstations.
• Multi-Unit Coordination: Facilitates communication between multiple turbine controllers (e.g., in a combined cycle plant) over the plant LAN for coordinated load dispatch and sequence control.
• Remote Monitoring and Support: Enables secure remote access for GE engineers or plant personnel to perform diagnostics, software updates, and troubleshoot issues from off-site locations.
• Integration with Plant DCS: Serves as the communications bridge, often using Modbus TCP/IP or OPC, to pass critical turbine parameters and status to the overarching Distributed Control System (DCS).

Comparison with Competing Products

Selection Suggestions and Precautions

1. Firmware Version Compatibility: The firmware on the GE IS200WEMAH1AEA must be compatible with the firmware version of the Mark VIe controller (VCMI) in the same rack. A mismatch can cause communication failure with ToolboxST.
2. Network Planning and IP Configuration: Before installation, plan the IP addressing scheme. The module’s IP address, subnet mask, and default gateway must be configured in ToolboxST to match the plant network architecture. Incorrect settings will prevent connectivity.
3. Static IP Assignment is Standard: These modules are typically configured with static IP addresses. Ensure the assigned IP is unique and reserved on the plant network to avoid conflicts.
4. Use of Correct Network Cables: Use high-quality, shielded Ethernet cables (CAT5e or better) in an industrial environment. Ensure proper grounding of cable shields if required by site specifications.
5. Security Considerations: The IS200WEMAH1AEA provides a direct network path into the turbine controller. Implement appropriate network security measures such as firewalls, VLAN segmentation, and access control lists to protect this critical asset from unauthorized access.
6. Sourcing from Specialized Vendors: Source this module from suppliers with expertise in the Mark VIe platform who can verify firmware compatibility and basic functionality.
